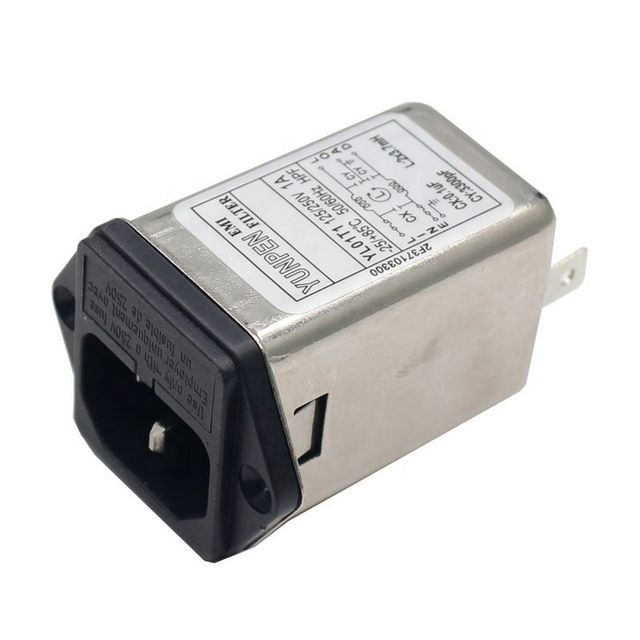

IEC 320 C14 Male Plug YL-T1-2F Fused Power EMI Filter

Supplier: Dongguan Onegol Electronics Co., Ltd.
Region: Guangdong, China
Contact: Mr Jack Pan
Price: $2.85 / 10 - 199 pieces
$2.65 / 200 - 499 pieces
$2.35 / >=500 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Dimensions:	ask	length:	ask
Number of poles:	ask	Line to ground:	115V AC 60Hz 0.25mA/250V AC 50Hz 0.45mA
Rated voltage:	115/250V AC	Coil structure:	ring
Rated Voltage - DC:	ask	Temperature Coefficient:	ask
technology:	ask	brand:	Power Entry Module Filters
impedance:	ask	Nominal center frequency:	50/60 Hz
output type:	ask	type:	EMI filter
Packaging Details:	Packaging Details: 100pcs/bag, 10bags/carton.	model:	YL-T1-2F
Rows:	ask	Stopband attenuation:	ask
Center/cutoff frequency:	ask	usage:	strength
brand:	unicorn	Termination method:	ask
Voltage - Rated AC:	ask	inductance:	ask
Configuration:	ask	Impedance @ frequency:	ask
Current rating (maximum):	10A	Height (maximum):	ask
Filter type:	power supply, signal line	Attenuation value:	ask
high:	ask	Cross reference:	ask
tolerant:	ask	Payment/Payment:	ask
input resistance:	2250	DC resistance (DCR) (maximum):	ask
Inductance @ Frequency:	ask	Number of coils:	Autotransformer
Sales unit:	single product	Resistance - Channel (Ohms):	ask
current:	ask	Rated Voltage - AC:	ask
Gross weight per piece:	0.054 kg	Insertion loss:	1450
Voltage - Rated DC:	ask	3dB Bandwidth:	normal
Operating temperature:	-25~85℃	feature:	ask
Convert function:	Lowpass	Origin:	Guangdong, China
stage:	single	Power Line Frequency:	50/60 Hz
Internal dimensions:	ask	Height - seated (maximum):	ask
capacitance:	ask	Frequency - Operation:	ask
Voltage - Rating:	ask	type of packaging:	through hole
Input type:	ask	Number of channels:	ask
Certification:	UL/CE/VDE	Single package size:	3X3X3 cm
Installation type:	bolt

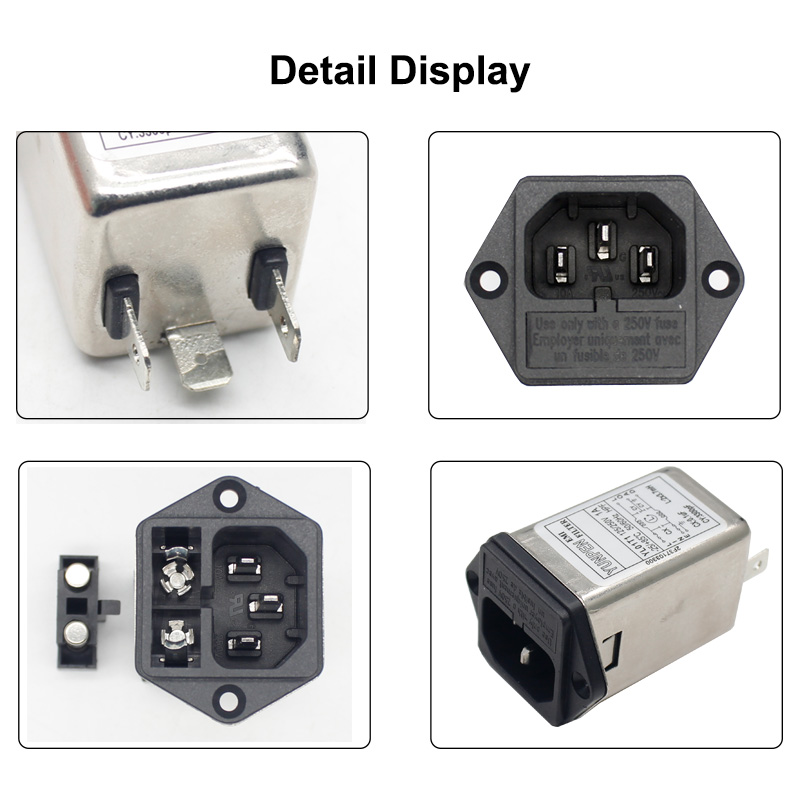

product display

10a EMI filter
Applicable voltage: AC 115V-250V universal
Working frequency: 50/60HZ
Connection mode: LINE end, LOAD end (this one is socket + seat belt switch filter)

Quantity / piece)	1 - 500	>500
EST. time (days)	8	to be negotiated

feature

* Universal filter with fuse holder can effectively suppress EMI of line-to-line and line-to-ground noise.

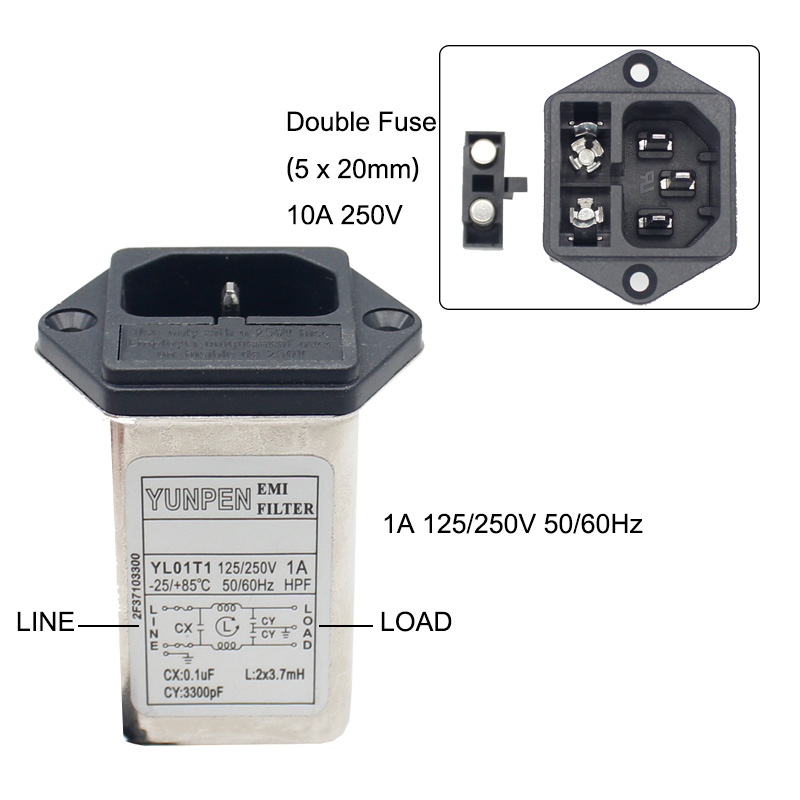

* Rated up to 10 amps, single or double fuse holder available.
* Multiple output options such as quick-connect terminals and lead wires.
* Low leakage current version available upon request.

* Customized versions available upon request

Rated up to 10 amps and available with dual fuse holders.
The mains entry module combines an IEC inlet, a mains filter with excellent filter attenuation and a fuse in the bracket. Selecting the YL series allows the user to quickly obtain standard filters related to the necessary safety acceptance. Standard IEC connector filters are a practical solution to help users pass EMI system certification in a short time. Typical applications are electrical and electronic equipment, game consoles, players, home appliances, medical equipment, and test and measurement equipment.

technical specifications

* Rated voltage: 125/250VAC
* Rated current: 1 to 10A
* Working frequency: 50/60Hz
* Voltage rating (line to line): 1450VDC
* Withstand voltage level (line to ground): 2250VDC
* Working temperature: -25 ~ +85°C * Rated voltage: 125/250VAC
