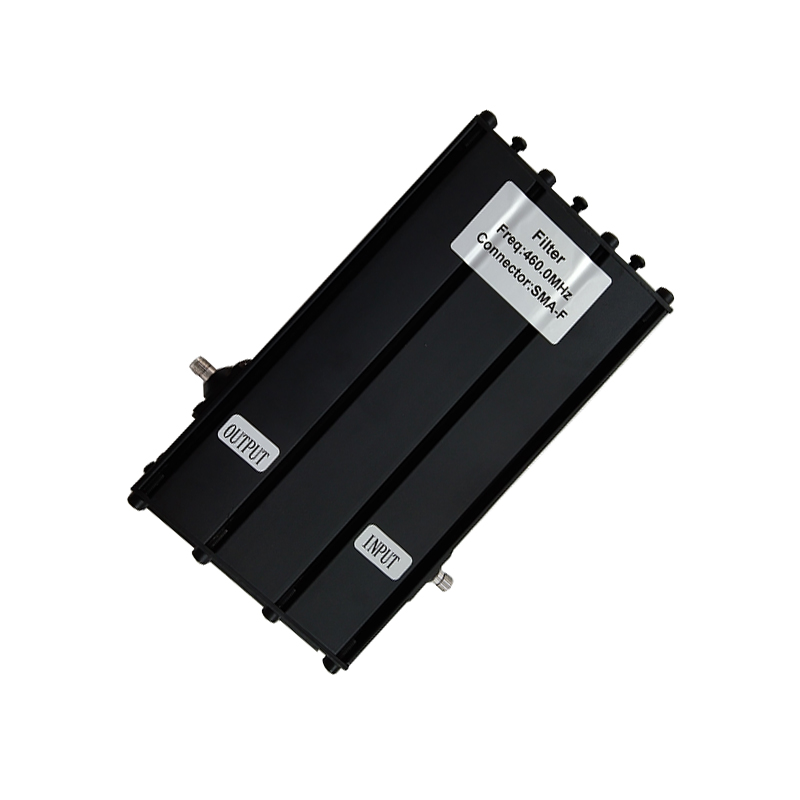

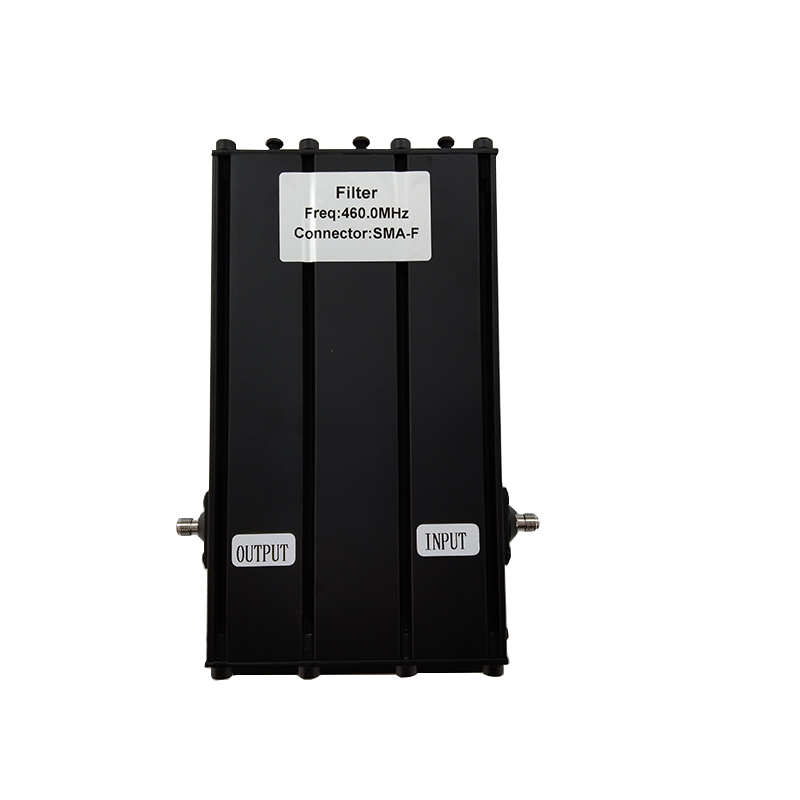

380~520 MHz RF band cavity filter, female sma
- 30.00 >=2 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Convert function: | Bandpass | port: | Shanghai/Ningbo/Shenzhen |
| input power: | Average 50W | Package preview: | |
| Frequency Range: | 380~520MHz | Type of company: | manufacturer |
| Origin: | Anhui, China | Insertion loss: | 1.45 |
| impedance: | 50 ohms, 50 ohms | Connector: | SMA Female-Female |
| Frequency - Operation: | 460MHz | brand: | Manila |
| type: | RF filter | Installation type: | not applicable |
| payment terms: | L/C, Western Union, T/T, Paypal | Filter type: | Bandpass |
| model: | LX-LBQ-450 | Packaging Details: | Standard Export Carton for 3 Way Wilkinson RF Power Splitter/Splitter |
| Supply capacity: | 100 pieces per day | Stopband attenuation: | 35 decibels |
Product Description
product name | RF 460MHz filter | ||
frequency band (MHz) | 380~520MHz | ||
Bandwidth (KHz) | single frequency point | 2MHZ | |
VSWR | ≤1.10 | ≤1.45 | |
Insertion loss | ≤1.8dB | ≤1.45dB | |
±5MHz attenuation | ≥22dB | ≥20dB | |
±10MHz attenuation | ≥40dB | ≥38dB | |
Maximum input power | 50W | ||
normal impedance | 50Ω | ||
Connector | Shape Memory Alloys | ||
application | indoor | ||
color | Black | ||
Product Features 1
* Broadband
*low standing wave ratio
* Low insertion loss
Product Features 2
* RF connector: SMA-female-female
* Black
* Widely used in indoor solutions
