UGwave OEM ODM Radio Channel Rf Dielectric Ceramic 836.5 MHz Low Pass Filter Bandpass Filter 2kw
- 20.00 set
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Terms of trade: | diammonium phosphate | Material: | ceramic powder |
| Insertion loss: | 3.0dB max | brand: | Ceramic Dielectric Filter |
| Packaging Details: | carton | Nominal center frequency: | 836.5MHz |
| impedance: | 50Ω | Supply capacity: | 500000 pieces per month |
| delivery time: | 7-21 days | input resistance: | 50Ω |
| Origin: | Shandong China | model: | SRA836D4R25SH |
| pay: | Paypal\TT\Western Union\Trade Assurance | type: | ceramic filter |
| type of packaging: | surface mount | port: | Qingdao |
| brand: | UG wave | Filter type: | Ceramic Dielectric Filter, Bandpass |
| MOQ: | 5 | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| application: | GSM, GSM | custom made: | Accept OEM/ODM |
| Installation type: | surface mount | Operating temperature: | -40°C to +85°C, -40°C to +85°C |
| transportation: | DHL\FEDEX\UPS\TNT\EPACK\China Post | pack: | carton |
| Dimensions/dimensions: | 15mm*13mm*4.5mm, 15mm*13mm*4.5mm | Convert function: | Bandpass |
| Certification: | ISO 9001:2015 / ROSH |

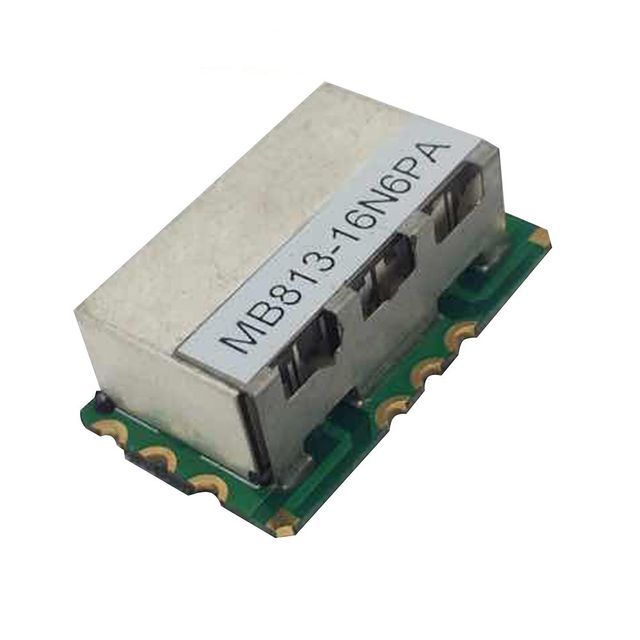

RF filter
UGwave OEM ODM Radio Channel RF Ceramic Dielectric 836.5MHz Low Pass Filter Band Pass Filter 2kw
Recommended Products
Product Description
Electrical Specifications
thing | specification | unit | |
center frequency [fo] | 836.5 | megahertz | |
Bandwidth [BW] | fo ± 12.5 [ 824.0 ~ 849.0 ] | megahertz | |
Insertion loss in BW | 3.0 | maximum decibel | |
Ripple in BW | 0.35 | maximum decibel | |
Return loss in BW | 15.0 | decibel min. | |
VSWR in BW | 2.0 | maximum. | |
attenuation | 50.0 dB min. @ fo ± [ 736.5 & ] | megahertz | |
50.0 dB min. @ fo ± [ 936.5 & ] | megahertz | ||
decibel min. @fo±[&] | megahertz | ||
decibel min. @fo±[&] | megahertz | ||
Group delay variation | nanosecond maximum | ||
input power | maximum width | ||
Input/Output Impedance | 50Ω | ||
operating temperature. scope | -40°C to +85°C | ||
Mechanical Specifications
drawing data
Recommended PCB Pattern
