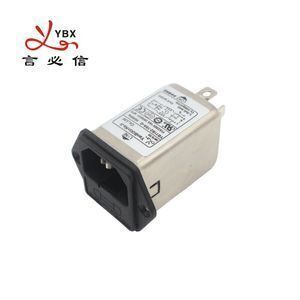

Yanbixin YB11B2 - 3A - Q double fuse inlet ac power line filter,1 - 10A, 5x20mm
-
Supplier: Shenzhen Yanbixin Technology Co., Ltd. -
Region: Guangdong, China -
Contact: Ms krystal chen -
Price: $0.68 /piece -
Min. Order: 1 piece
| Model Number: | YB11B2-3A-Q; | Packaging Detail: | 150pcs/CTN N.W.:7.8KG G.W:9.3KG Meas:0.565*0.285*0.205CBM; |
| TYPE: | YB11B2-3A-Q; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
| Transfer Function: | Low Pass; | Operating Frequency: | 50/60HZ; |
| 3dB Bandwidth: | 14K; | MOQ: | 1PCS; |
| Certificate: | cUL CQC CE ROHS ISO9001 TUV; | Brand Name: | YBX; |
| Environmental Temperature: | 40°C; | Insertion Loss: | 30-100dB; |
| Supply Ability: | 3000000 Piece/Pieces per Month; | Stopband Attenuation: | 20-80dB; |
| Line to Line: | 1450VDC; | Rated voltage: | 125VAC/250VAC; |
| Place of Origin: | Guangdong China; | Rated current: | 1A/3A/6A/10A; |
| Nominal Center Frequency: | 10KHZ~30MHZ; | Port: | SHENZHEN; |
| Port: | shenzhen; | Input Impedance: | 50Ω; |
| Type: | EMI Filter; |
Yanbixin YB11B2 - 3A - Q double fuse inlet ac power line filter,1 - 10A, 5x20mm
Our Advantages
1.After years of efforts of the company's personnel, products successively obtained the cUL,
TUV,CQC, CE, ROSH certifications.
2.We have a professional R&D team; our aims is we won't let customers spend any extra money!
3.National high-tech enterprises, brand assurance, reliable quality, and we have the relevant
product certifications.

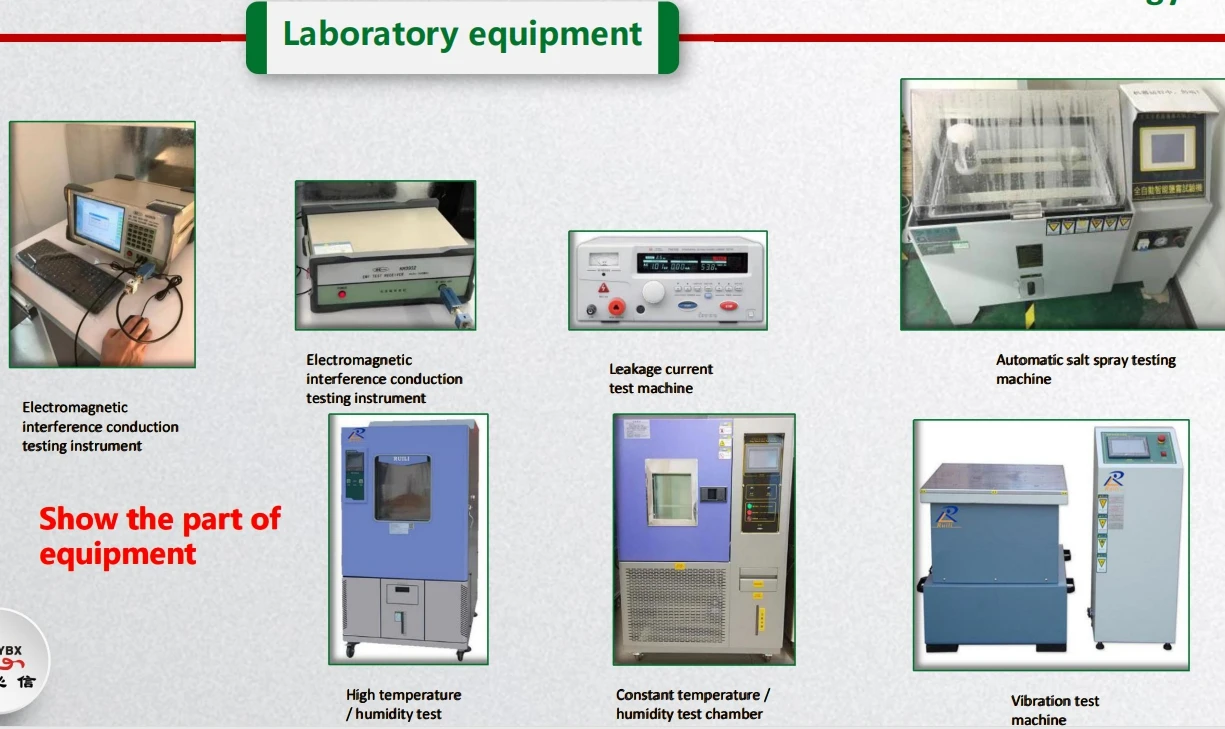

4.We cooperate with top scientific research laboratories to provide free EMC rectification technical
support, samples; and free conduction test.
5.Automation technology, scale production, great price,excellent, service, fast delivery! Free replacement
within three months, free maintenance within six years, life-long maintenance!
Product Description

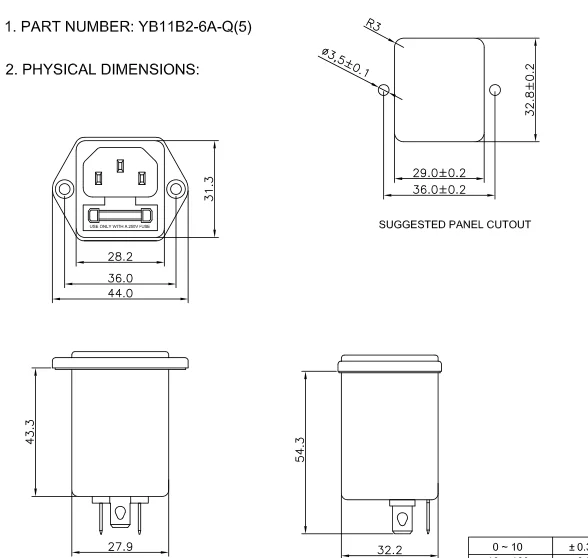

Physical Dimensions

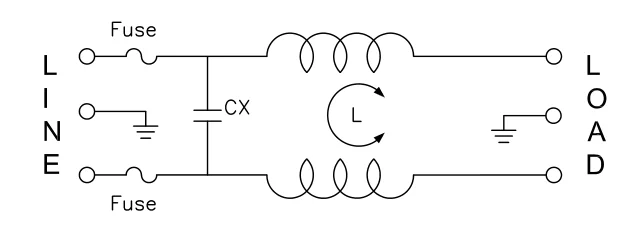

Electrical Schematic
Characteristics
(1) Voltage Rating............................................................................................115/250VAC
(2) Current Rating:
A.@115VAC............................................................................................... 3A RMS Max.
B.@250VAC............................................................................................... 3A RMS Max.
(3) Oprating Frequency:50/60Hz
(4) Leakage Current: each line to ground
A. 115VAC/60Hz........................................................................................... 2mA Max.
B. 250VAC/50Hz...........................................................................................5mA Max.
(5) Hipot Rating(for one minute)
A. Line to ground............................................................................................ 2250VDC
B. Line to line.................................................................................................. 500VDC
(6) IR: 50M ohm A7 500VDC any input or output to ground
(7) Temperature Range: -25℃~+85℃
Our Company
1.Customized:We have a professional R&D team; our aims is we won't let customers
spend any extra money.
2.Listed company:National high-tech enterprises, brand assurance, reliable quality, and
we have the relevant product certifications.
3.Rectification test: We cooperate with top scientific research laboratories to provide free
EMC rectification technical support, samples; and free conduction test.
4.Scale production:Automation technology, scale production, great price,excellent, service,
fast delivery! Free replacement within three months, free maintenance within six years,
life-long maintenance!
Working Environment
Sample
Sample Fee: Negotiate
Sample Time: 3~5 days
Payment
---Payment terms: Western Union, D/P, T/T,L/C
---Please remember to leave the correct contact information for delivery.
Packaging
Power Line Filter: CTN/300pcs
N/G W.: 13.5/14.3KG
Measures:0.565*0.285*0.225m
Shipment
---Shipping terms: DHL, UPS, FEDEX, TNT, EMS
---Port is Shenzhen or as requests.
GIVE US A CHANCE TO COOPERATE
WITH YOU!
-
