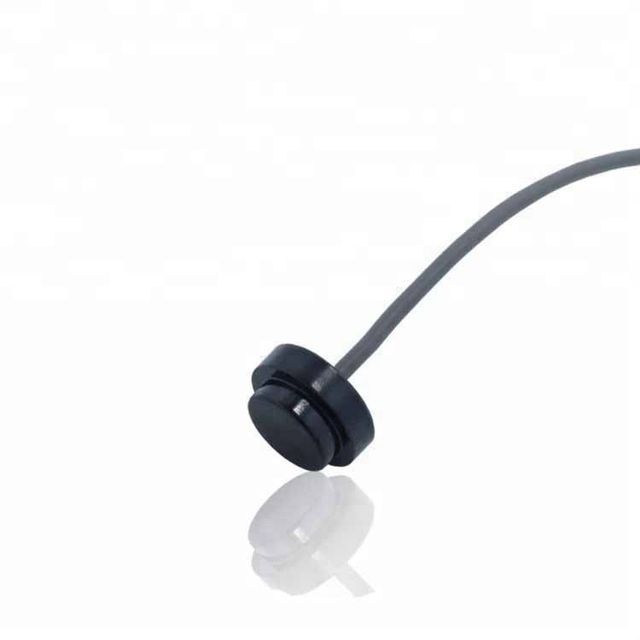

Jiakang Electronics Good Capacitance Ultrasonic Transducer Piezoelectric Sensor Water Meter

Supplier: Zhejiang Jiakang Electronics Co., Ltd.
Region: Zhejiang, China
Contact: Ms Sally MA
Price: $2.50 / 500 - 9999 pieces
$1.50 / >=10000 pieces
Min. Order: 500 pieces

Click here to contact

Product details

payment terms:	L/C, Western Union, T/T, Credit Card	Nominal frequency:	1000+100KHz
Impedance(1MHz)Zr:	1000±30%Ω	Bandwidth (-3dB):	150KHz
Packaging Details:	120 pcs/box	port:	Shanghai
Origin:	Zhejiang, China	output:	sensor
theory:	ultrasonic sensor	describe:	ultrasonic sensor
Supply capacity:	800,000 pieces of piezoelectric ultrasonic transducers per month	model:	PSC1.0M014083H2AD0-B0
type:	ultrasonic sensor	capacitance:	800±20%pF
Installation type:	in the pipeline	usage:	Ultrasonic flow sensor
Operating temperature:	+4~+100℃	brand:	Kakang
Storage temperature:	-20~+85℃

Your present location: Home>> Piezoelectric Ultrasonic Transducer>Piezoelectric Ultrasonic Sensors>For liquid level gauge>>

Good capacitance stability Water meter sensor Ultrasonic sensor

Product Description

Specification
project	content
Nominal frequency	1000+100KHz
Bandwidth (-3dB)	150KHz
Capacitance	800±20%pF
Impedance(1MHz)Zr	1000±30%Ω
Operating temperature	+4~+100℃
Storage temperature	-20~+85℃
Maximum instantaneous drive voltage	200V
Insulation resistance (250V)	>1GΩ
Transmission distance	110 mm
pairing sensitivity	The minimum value of the received signal is 900mV when measuring the peak-to-peak value when driving 10 cycle bursts of 2.0V(Vp-p) at 1MHz, 110mm range.
application	liquid medium measurement, Including water speed detection, Object distance measurement, obstacle detection, etc.

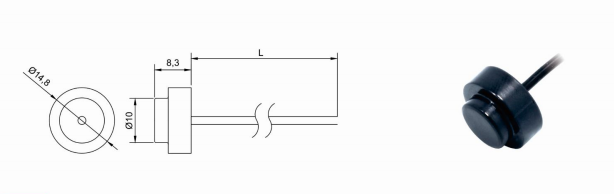

Outline Drawings and Dimensions

Click for more information

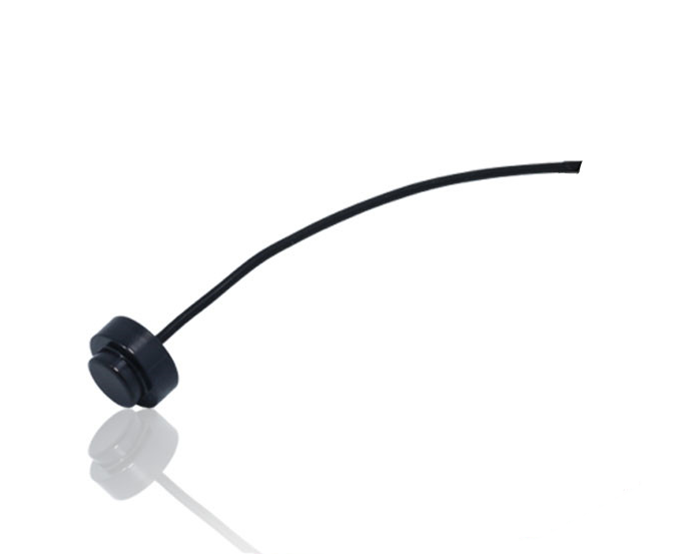

The ceramic ultrasonic transducer is the core component of the ultrasonic flowmeter and a liquid medium sensor. Can be used in liquid flow meters, or as liquid level sensors. The product is made of self-developed piezoelectric ceramics, which has better temperature stability and superior piezoelectric effect.

We have been engaged in the research and development of PZT materials and products for nearly 30 years. Served as the chairman of the Professional Committee of Piezoelectric Ceramic Devices, responsible for drafting the national "Eleventh Five-Year" and "Twelfth Five-Year" plansFor the development of piezoelectric ceramics.Choosing us will make your development process earlier and faster.
