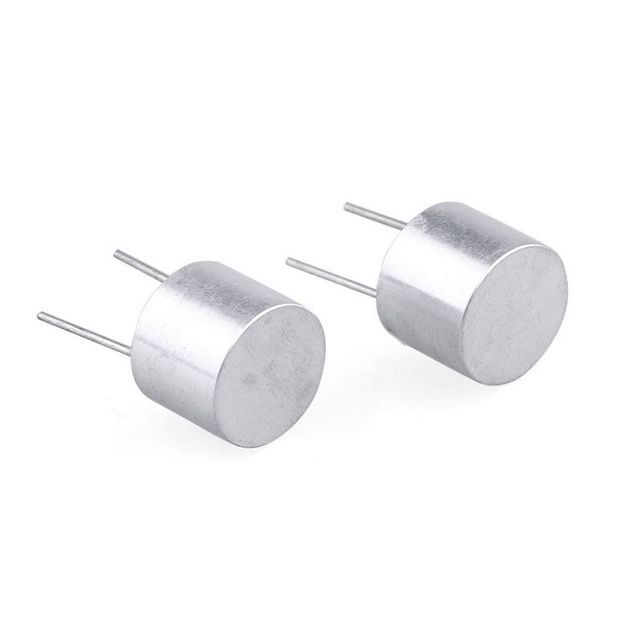

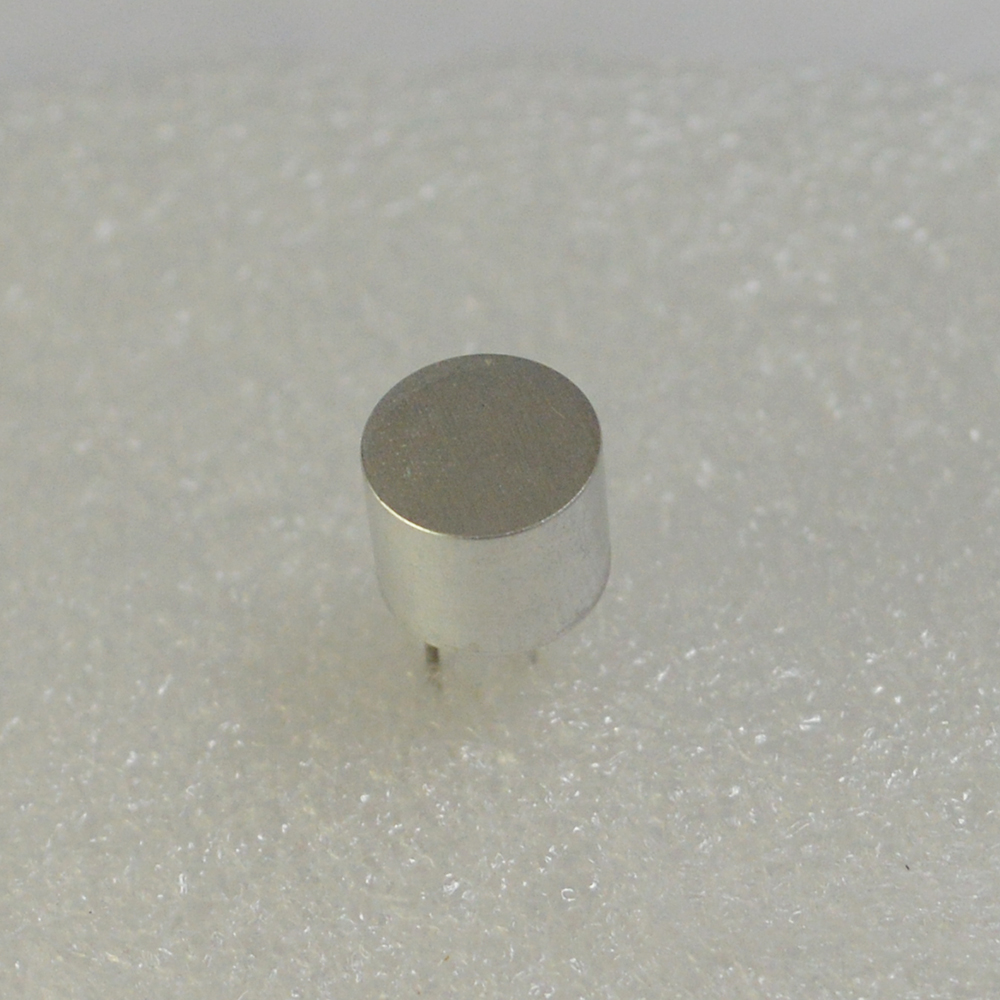

10mm Small Piezoelectric 40khz Waterproof Ultrasonic Sensor Enclosed Distance Sensor
- 2.00 1 - 999 pieces
- 0.80 1000 - 9999 pieces
- 0.30 >=10000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Manufacturing date code: | not applicable | Packaging Details: | safe packaging |
| type: | ultrasonic sensor | -6 dB Directivity (degrees): | 70±10° |
| brand: | Sweet | Insulation resistance (MΩ): | ≥10 |
| Allowable input voltage (V pp): | 150 | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, PayPal |
| feature: | distance sensor | Supply capacity: | 1,000,000 ultrasonic sensors per quarter |
| Installation type: | computer pin | product type: | ultrasonic sensor |
| output: | digital | ring: | ≤1.2ms |
| Package preview: | Detection range (m): | 0.7-10 | |
| describe: | ultrasonic sensor,ultrasonic sensor | series: | ultrasonic sensor |
| model: | USC10T/R-40MPWA | Origin: | Guangdong, China |
| terminal: | pin | usage: | distance sensor |
| port: | Shenzhen or Hong Kong | Transmission sound pressure level (dB): | ≥90 |
| theory: | ultrasonic sensor | Capacitance (pF): | 2000±20% |
| Center frequency (KHz): | 40±1 |
40khz 10mm waterproof enclosed distance ultrasonic sensor
Product Description
*****All factory information has been verified by SGS and Alibaba third party******

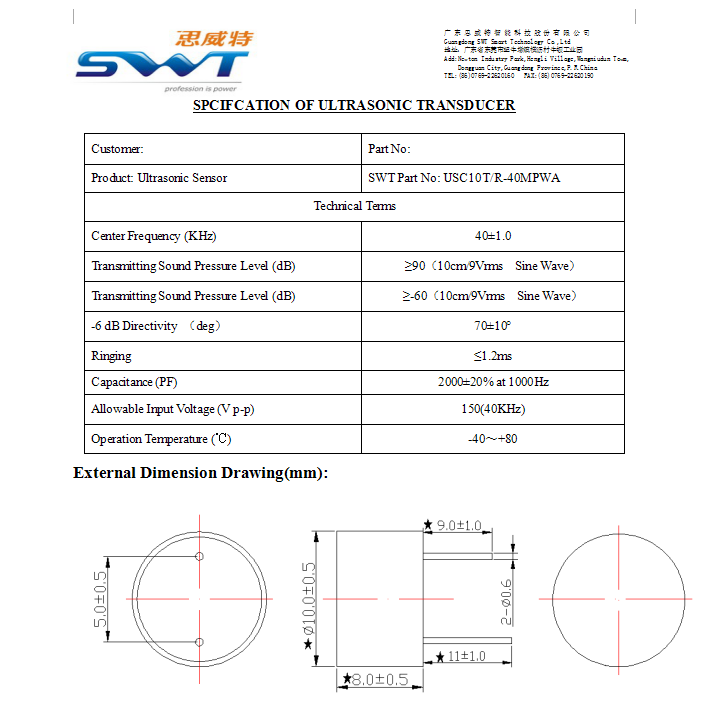

Specification:
1. Size: diameter 10mm, thickness 8mm
2. Material: metal, ceramic
3. Metal Type: Aluminum
4. Frequency: 40k Hz
5. Clear voice, no noise
6. Experienced manufacturer since 1991, no MOQ
All products comply with ROSH and REACH standards

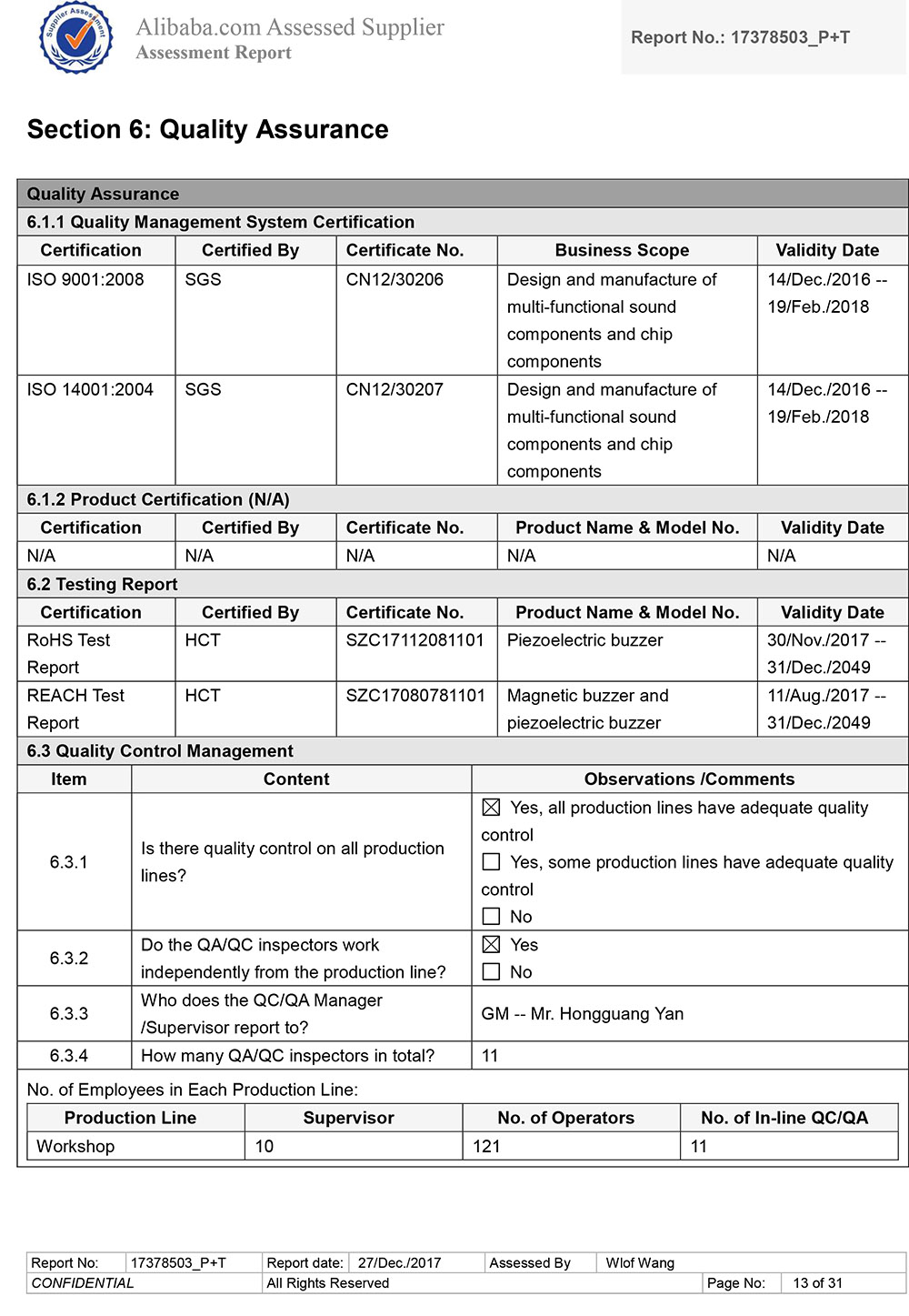

SGS certification, ISO 9001:2008 and ISO 14001:2004
