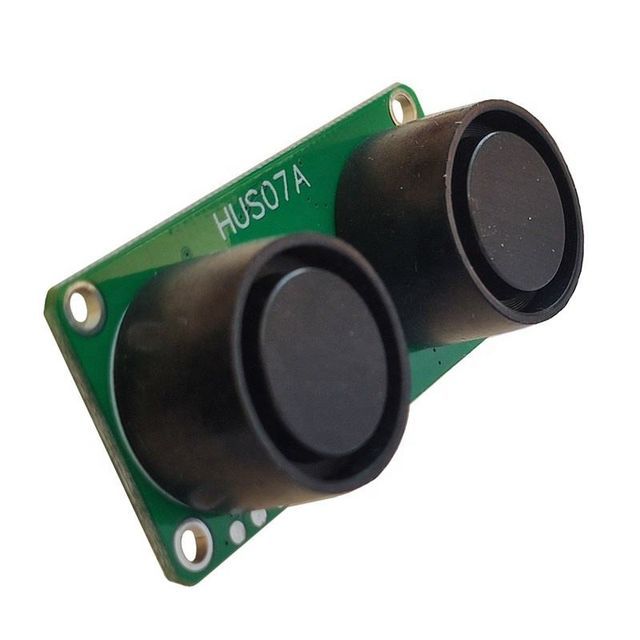

2cm blind zone waterproof ultrasonic sensor ranging module high-performance sonar module ultrasonic detector

feature:

1) 2cm ultra-small blind area;

2) The measurement angle is small, 12 degrees;

3) 3m long-distance measurement;

4) 3.3~5.5V power supply;

5) With temperature output;

6) Serial port output ASCII code does not need to convert hexadecimal to read data is simple and intuitive

7) With closed split waterproof ultrasonic transducer;

8) Working temperature: -15°C to +60°C;

9) Storage temperature: -25°C to +80°C;

10) Low power consumption design;

11) Electrostatic protection design, the sensor shell and I/O PIN are equipped with electrostatic protection devices, which meet the IEC61000-4-2 standard;

advantage:

1) The blind area is small;

2) The measurement angle is small;

3) Strong anti-interference;

4) Wide working voltage range;

5) Small size;

6) Silicone protects the ultrasonic probe;

7) Ranging with temperature compensation;

8) Data output, stable and reliable;

9) Lower power consumption;

10) Fast response time;

11) Strong antistatic property;

12) Wide working temperature;

13) High measurement accuracy;

application:

1) Horizontal ranging and liquid level measurement;

2) Detecting the presence of approaching objects and external objects;

3) Security, industrial control;

4) Artificial intelligence, teaching and research;

5) Parking management system;

6) Robot obstacle avoidance, automatic control;

Basic parameters:
