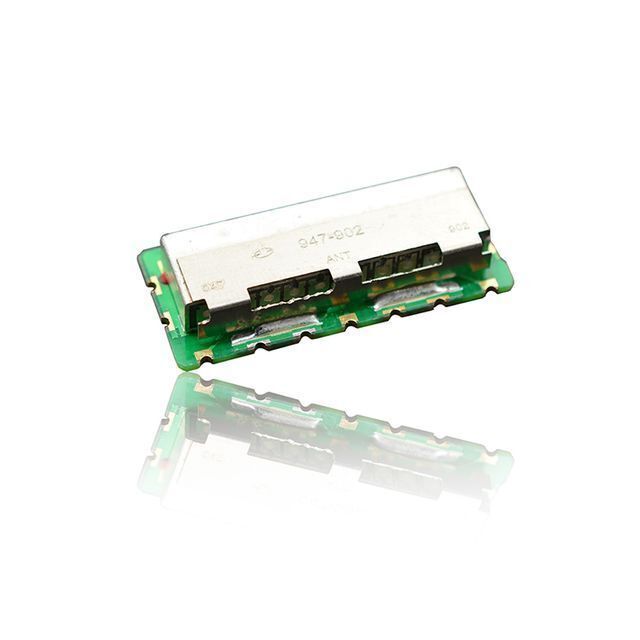

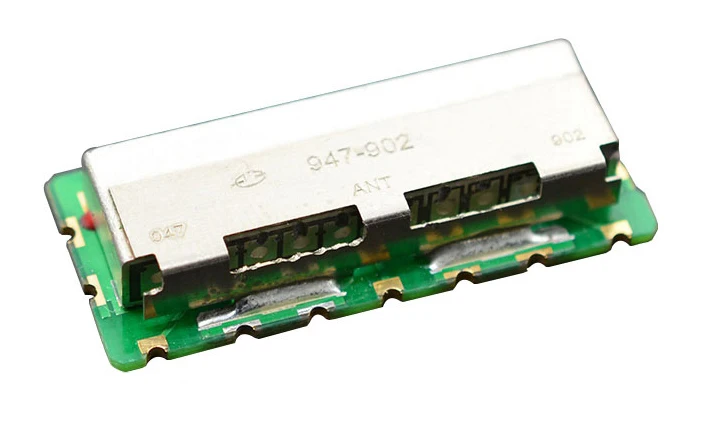

Repeater Station Wireless Module Hybrid Dielectric Filter Duplexer
 |
|
ELECTRICAL SPECIFICATIONS |
||||
|
ITEM |
Low >>> ANT |
High <<< ANT |
UNIT |
|
| 1 |
Center Frequency[fo] |
902.5 | 947.5 |
MHz |
| 2 |
Bantwidth[BW] |
fo ± 12.5 |
fo ± 12.5 |
MHz |
| 3 |
Insertion Loss in BW |
4.5dB max. |
4.5 dB max. |
dB |
| 4 |
Ripple in BW |
2.8 dB max |
2.8 dB max. |
dB |
| 5 |
VSWR in BW |
1.5:1 max |
1.5:1 max |
Ratio |
| 6 |
Attenuation [Absolute Value] |
40.0 dB min. @ [869~894] 30.0 dB min. @ [ 858.5 ] |
40.0 dB min. @ [824~847] 30.0 dB min. @ [ 858.5 ] |
Ratio |
| 7 |
Input Power |
3.0 max. |
W | |
| 8 |
In/Out Impedance |
50 |
Ω |
|
| 9 |
Operation Temperature Range |
-40 to +85 |
℃ |
|
|

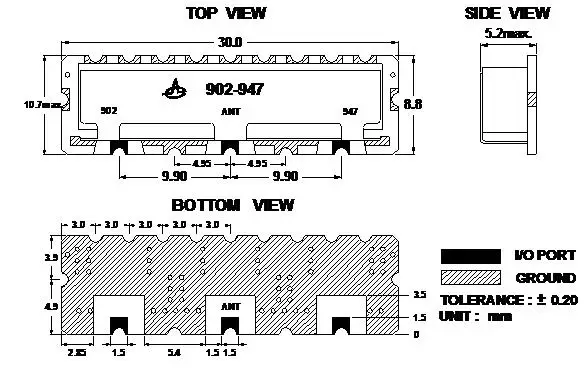

MECHANICAL SPECIFICATIONS |
|
|
|

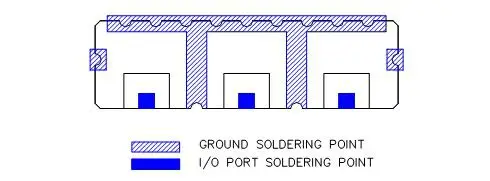

RECOMMENDED PC BOARD PATTERN
|
 |
Click for more information
Click for more information
| Brief Introduction of JIAKANG Microwave Products |
|
Our microwave dielectric products mainly include dielectric patch antennas, filters, duplexers and GPS modules, which are widely used for positioning, satelliate broadcasting receiver system,RFID,ETC and so on. We are dedicated in the development of core technologies and have achieved the leading position in the ceramic powder formula,manufacturing processes and test technologies. Some products and processes are authorized national patents.Customized products are available.
Memo: Above specification subject to change without further notice.Please contact us for more details. |
