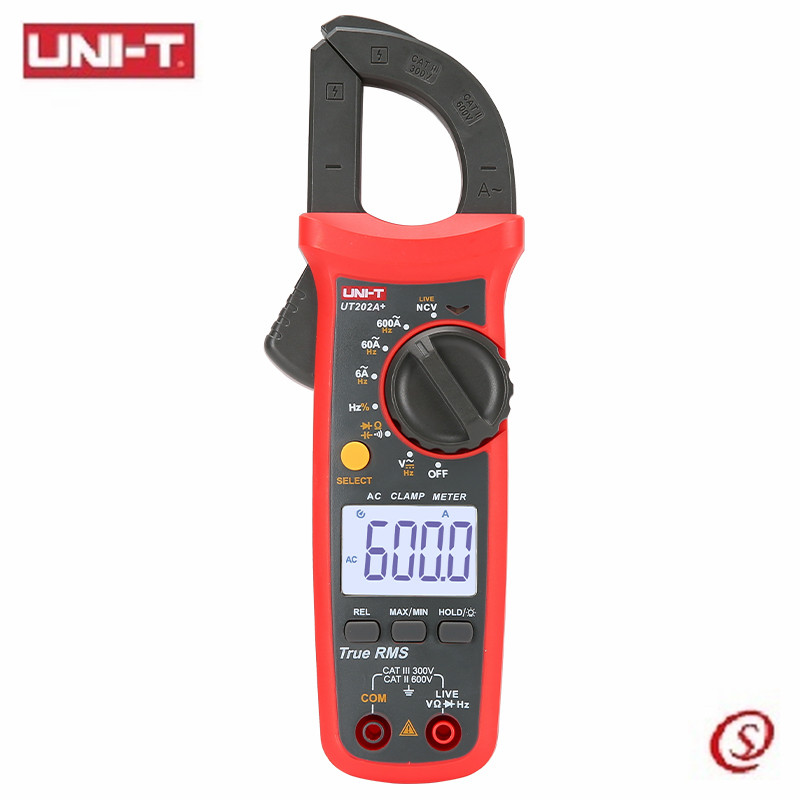

UNI-T UT202A+ Best Digital Clamp Meters

  • Supplier: Sinotronics Co., Ltd.
  • Region: Jiangsu, China
  • Contact: Ms. Joyce Zhang
  • Price: $12.70 / 1 - 199 pieces
    $12.40 / 200 - 399 pieces
    $12.00 / >=400 pieces
  • Min. Order: 1 piece
Click here to contact
Product details
Autorange:Yesmodel:UT202A+
Sales unit:multiples of 40DC voltage (V):600V
Resistance (Ω):60MΩAC current (A):600A
AC voltage (V):600Vaspect:215x63x36mm
Display type:numbers onlyplace of origin; place of origin:Guangdong, China
voltage:1.5Vx2 AAAOperating temperature:0℃-- 40℃
brand:unitdiode:Yes
Continuity Buzzer:YesMeasuring range:600V
Accuracy class:1 mADisplay count:6100
Gross weight per batch:20.000 kgLow battery indicator:Yes
Packaging Details:We can provide product packaging according to your requirements.Package size per batch:49X31X39 cm
Jaw Ability:28mm
Product Description
feature
True RMS NCV electric field detection with sound and light alarm, 600V voltage measurement and high voltage frequency measurement function 10Hz ~ 10KHz, AC current 400A measurement function, frequency response up to 50Hz ~ 100Hz and with current frequency measurement function (UT201+/UT202 +) AC/ DC current 400A measurement function (UT203+ only) UT202+ is equipped with capacitor (4mF), temperature measurement function, full-function false detection protection, can withstand up to 600V (30KVA) and set overvoltage, overcurrent alarm prompt circuit design with automatic power saving function , effectively prolong battery life, large LCD display, fast ADC/A/D converter (3 times/second) Drop-proof reliability: body 2 meters, body 1 meter clamp head. Meter meets EN61010-2010 EN61010-2-032, EN61010-2-033 CATII 600V / CATIII 300V
Specification
scope
accuracy
UT202+
DC current (A)
40A/400A
60A/600A
AC current (A)
4A/40A/400A
±(2%+10)
6A/60A/600A
40A/400A
60A/600A
AC current frequency (Hz)
50Hz～100Hz
±(1%+5)
AC voltage (V)
4V/40V/400V/600V
±(0.8%+5)
6V/60V/600V
AC voltage frequency (Hz)
10Hz～10kHz
±(1%+5)
10Hz～60kHz
DC voltage (V)
400mV/4V/40V/400V/600V
±(0.5%+2)
600mV/6V/60V/600V
Resistance (Ω)
400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ
±(0.8%+2)
600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
Capacitance (F)
4nF/40nF/400nF/4μF/40μF/400μF/4mF
±(4%+5)
40nF/400nF/4μF/40μF/400μF/4mF/40mF
6nF/60nF/600nF/6μF/60μF/600μF/6mF/60mF
60nF/600nF/6μF/60μF/600μF/6mF/60mF
temperature
-40℃∽1000℃/-40℉∽1832℉
±(1.5%+5)
Frequency (Hz)
10Hz～10MHz
Performance
Display digits
4000
Autoranging
√
chuck size
28mm
True RMS
√
novel coronavirus
√
Zero Fire Wire Test
Continuity test
√
Diode Test
√
maximum value minimum value
√
relative value
√
reset to zero
data retention
√
Low Voltage Alert
≤2.5V
√
Automatic shut-down
15 minutes
√
Operating temperature
0℃～40℃
Security Level
CAT II 600V/CAT III 300V
General Features
Battery
1.5Vx2 AAA
Product color
red and grey
Product bare metal weight
248 grams
Product Size
215x63x36mm
standard packaging

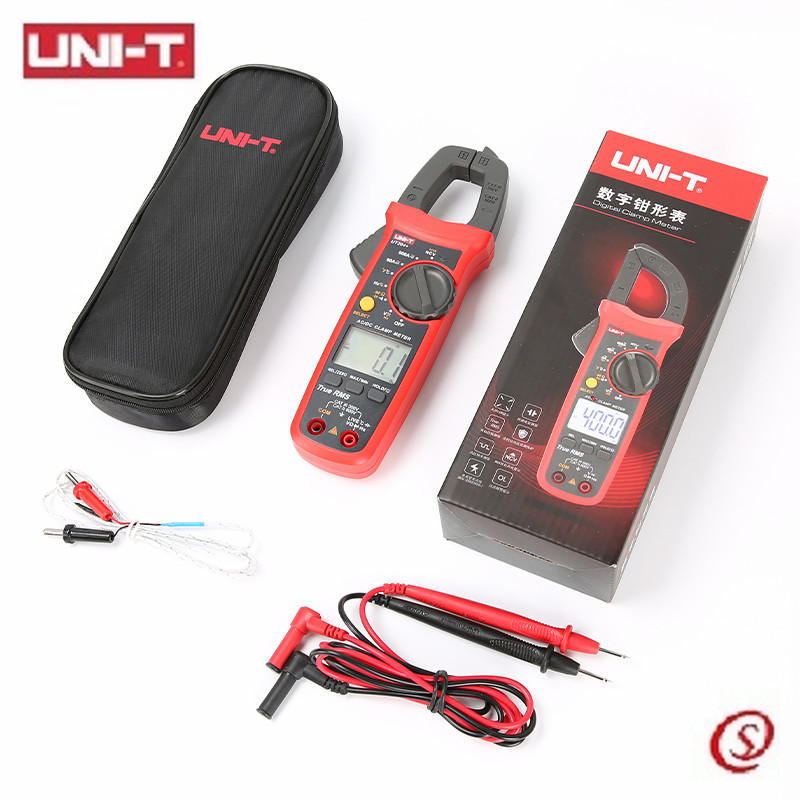

Color box, cloth bag, manual, temperature probe (only for UT202+, UT204+)
Standard outer box quantity
40
Standard carton size
485×295×385mm
Standard carton gross weight
17.3KG
