AC DC digital ammeter AC ammeter current tester panel LED display monitoring table
- 1.80 10 - 999 pieces
- 1.70 1000 - 4999 pieces
- 1.60 >=5000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | accuracy: | ±2% VA |
| Input Circuit Power Loss: | <2VA | Ampere measurement range: | 0-100A |
| model: | N-D85 | level of accuracy: | 2%±VA |
| Origin: | Zhejiang Province, China (Mainland) | brand: | Neural Networks |
| Display type: | numbers only | Operating temperature: | -25℃~55℃ |
| Origin: | Zhejiang, China | Measuring range: | 0-100A; |
| Packaging Details: | standard packaging | brand: | Neural Networks |
| Package preview: | display resolution: | 1V 1A 1 | |
| voltage: | 220V |

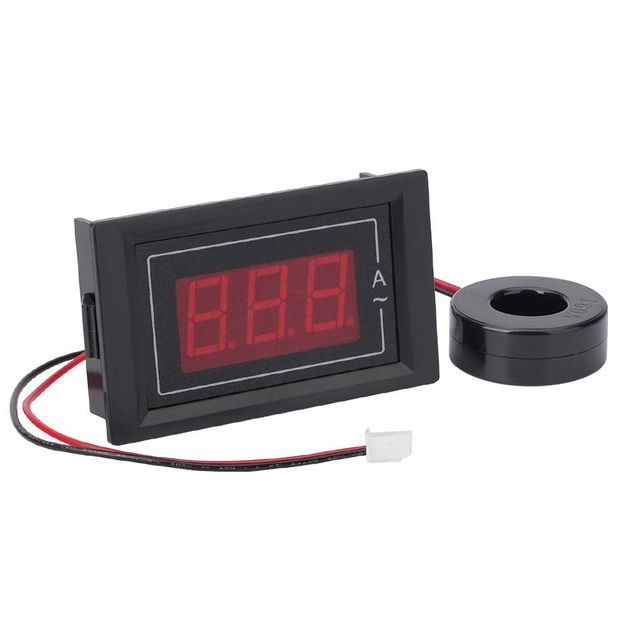

Mini Digital AC Current Surface Panel Ampere Voltage Ammeter Tester LCD Display
Technical Parameters

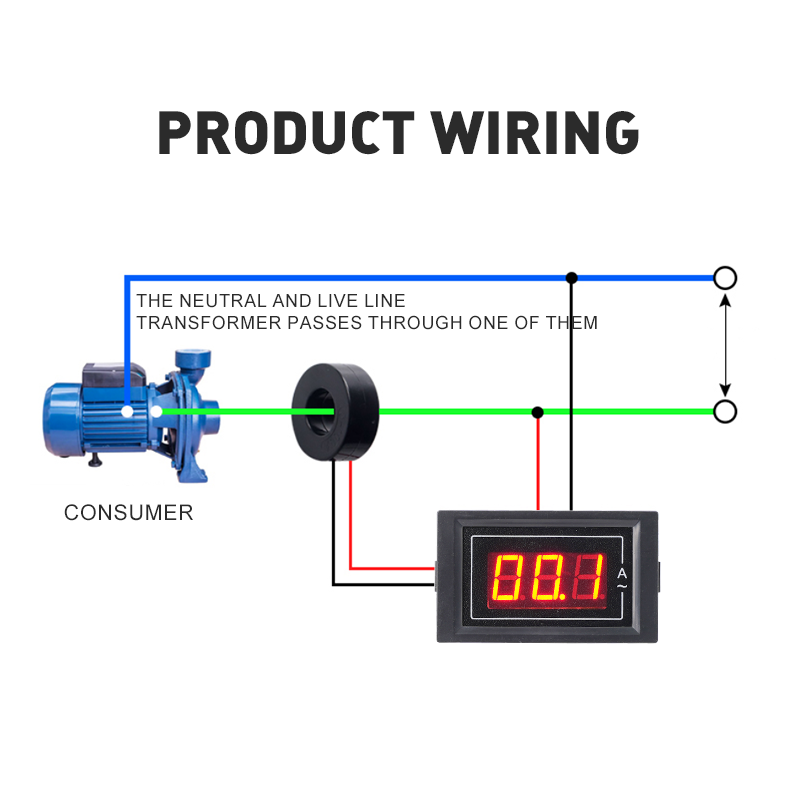

D85 digital AC voltmeter can display AC voltage and AC current at the same time. The meter uses a color LCD to display the measurement results: red displays the measured voltage, and green displays the measured current. The instrument does not need to increase the working power supply and AC transformer. (The instrument is equipped with a precision micro-transformer, no need to purchase separately)
Technical Parameters
D85 digital AC voltmeter can display AC voltage and AC current at the same time. The meter uses a color LCD to display the measurement results: red displays the measured voltage, and green displays the measured current. The instrument does not need to increase the working power supply and AC transformer. (The instrument is equipped with a precision micro-transformer, no need to purchase separately)
1. Measurement accuracy: 1%±2 digits
2. Display:
3. Measuring range:
AC current: AC 0-100A
2. Display:
3. Measuring range:
AC current: AC 0-100A
4. Measurement speed: about 2 times per second
5.Power supply: <3VA.
detailed image

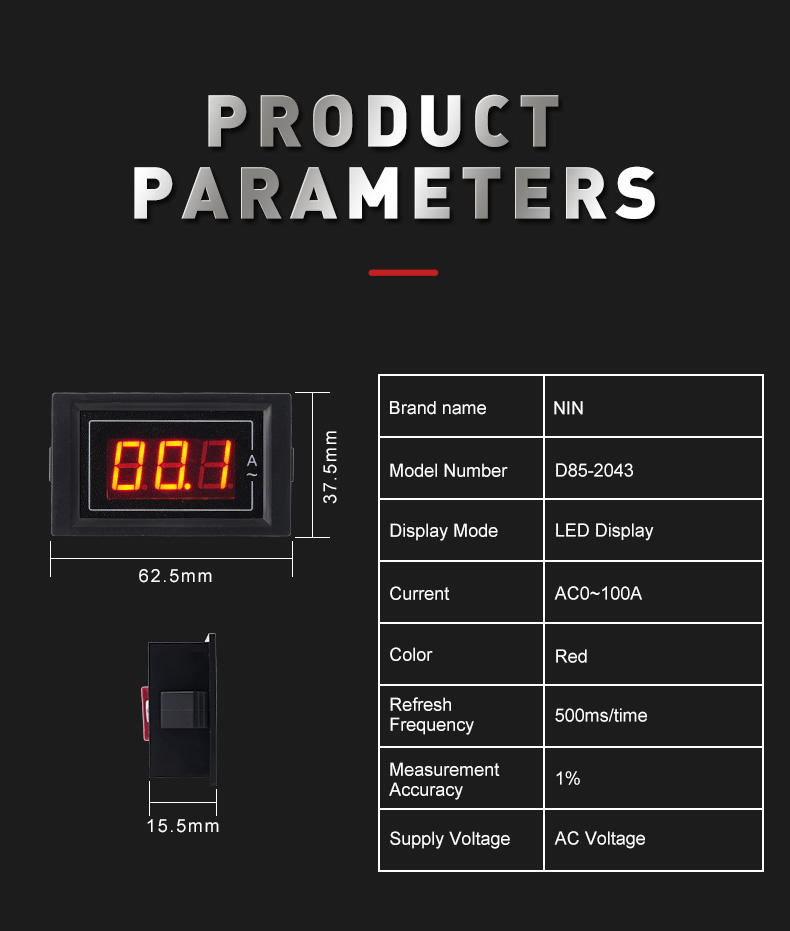

Technical Parameters
Note: It cannot be used in an electrical environment with variable frequency, high frequency, and strong harmonic interference signals.
type | N-D85 |
brand | Neural Networks |
birthplace | Zhejiang Province, China (Mainland) |
Ampere measurement range | 0-100A |
accuracy | ±2% VA |
display resolution | 1V 1A |
Sampling Rate | About 1 time/second |
Input Circuit Power Loss | <2VA |
No input signal prompt message | V shows 000 A shows 000 |
