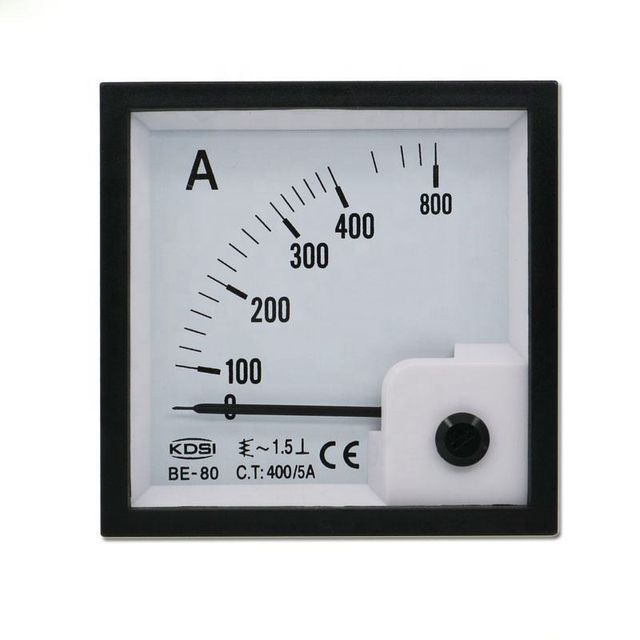

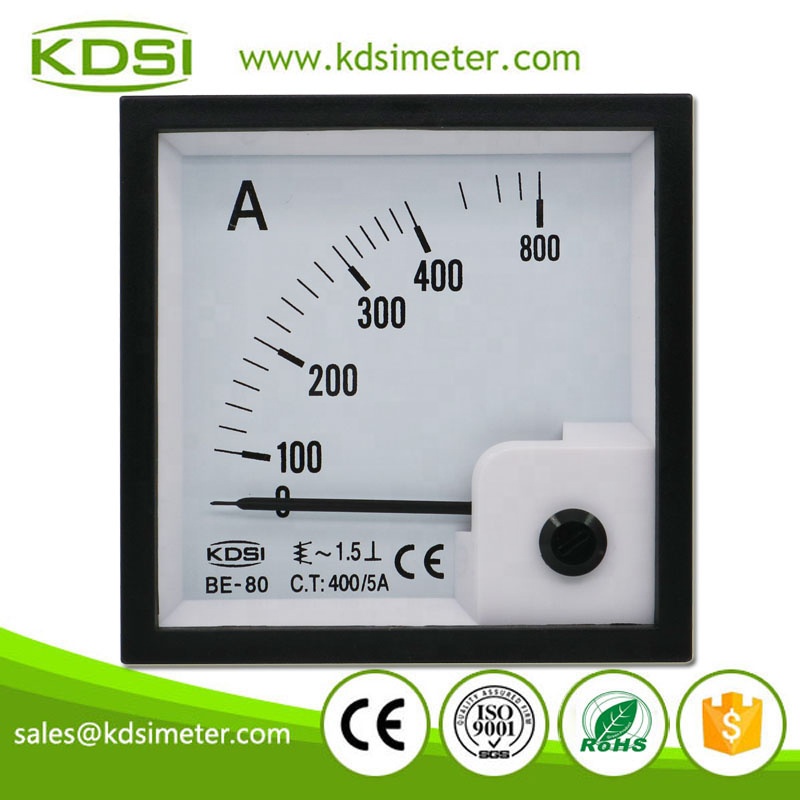

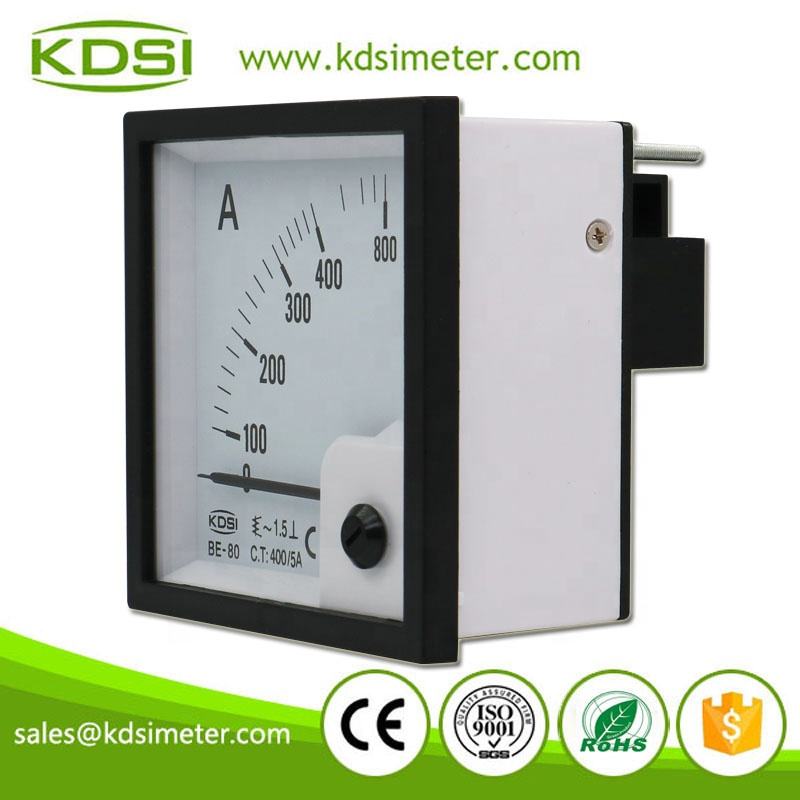

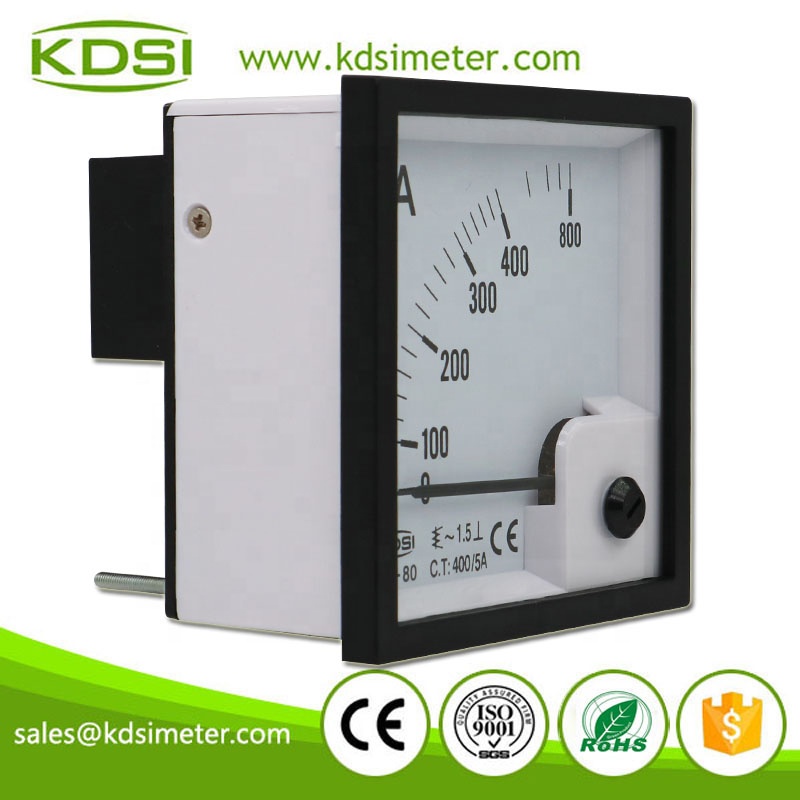

Hot selling BE-80 AC400/5A analog AC panel ammeter with output
-
Supplier: KDS Instrument (Kunshan) Co., Ltd. -
Region: Jiangsu, China -
Contact: Ms Amber SI -
Price: $6.00 / 5 - 199 pieces
$5.40 / >=200 pieces -
Min. Order: 5 pieces
Product details
| Gross weight of single piece: | 1.000kg | Measuring range: | 0-400A |
| model: | BE-80 | brand: | KDSI can also do OEM |
| Sales unit: | Single product | Panel opening: | 76*76mm |
| Display type: | Simulate only | level of accuracy: | 1.5 |
| Single piece packaging size: | 25X13X16 cm | product name: | Hot selling BE-80 AC400/5A analog AC panel ammeter with output |
| aspect: | 80*80 | Operating temperature: | -20 degrees-+50 degrees |
| Pointer color: | black or red | Place of origin: | Jiangsu, China |
| Packaging details: | Standard export carton 100PCS/CARTON | voltage: | 0-600V |
| customizable: | Yes |
Hot selling BE-80 AC400/5A analog AC panel ammeter with output
BE type description
Product Description _____________________________________________________________
| product name | Hot selling BE-80 AC400/5A analog AC panel ammeter with output | ||
| type | electricity meter | Serve | OEM production |
| work | glass window | Model | BE-80 |
| ABS resin frame and shell | |||
|
Includes PC fiberglass base mounting accessories |
|||
| dial | Generally aluminum alloy or customized | Front frame(mm) | 80*80 |
| feature | Zero adjustment/aging test/anti-static | Panel opening (mm) | 76*76 |
| operating position | Usually in a vertical position or customized | color | custom made |
| pointer | Generally aluminum alloy or customized | accuracy | Level 1.5 |
| overshoot | Less than 15% when the pointer is at 2/3 of the scale (can be customized) | Conditions of Use |
-20~+50 degrees |
application
application__________________________________________________________________________________
