Wenzhou pointer volt-ampere panel meter, ammeter, ammeter

Supplier: Yueqing Topsun Electronic Technology Co., Ltd.
Region: Zhejiang, China
Contact: Mr Mike Lin
Price: $3.00 / 10 - 99 pieces
$2.00 / >=100 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Packaging Details:	standard package	stage:	single
model:	M72	Accuracy class:	1.5,1.5
usage:	amplifier measurement	Operating temperature:	-10+50
Origin:	Zhejiang, China	Display type:	Analog Only, Analog and Digital
aspect:	645660	Measuring range:	-9999~9999
brand:	ODM/Zhongtuosheng	Operating temperature:	-10 - +55 degrees Celsius
Function:	current greatest demand	voltage:	AC80~270V
color:	black and white

Product Description

Analog instrument product definition

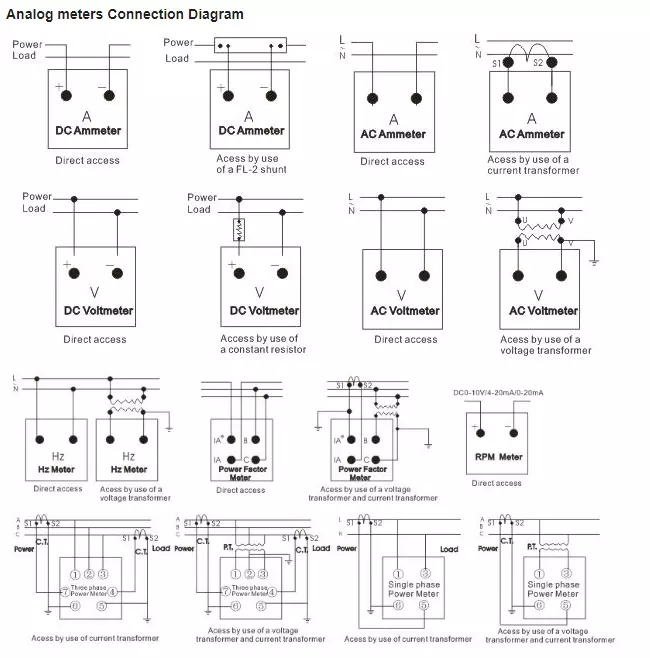

describe	Model	Measuring range
DC ammeter	M-722-A	1-500mA, 1-50A, 75A and above plus FL-2 shunt
AC ammeter	M-722-A	0.5-50A, above 75A plus current transformer, overload 0.5A/5A
DC voltmeter	M-722-V	3-600V, 750V, 1000V, 1500V with FJ-7 constant current resistor
AC Voltmeter	M-722-V	3-600V, add voltage transformer above 600V Subsection measurement: 80-120V, 180-220V, 300-450V
power factor meter	M-722-cosine Φ	10V/5A 220V/5A 380V/5A
kilowatt meter	M-722-K/MW	110V, 220V, 380V single phase/three phase
reactive power meter	M-722-K/MVa	110V, 220V, 380V single phase/three phase
Tachometer	M-722-speed	DC0-10V DC0-20mA DC4-20mA etc.
frequency meter	M-722-Hz	45-55Hz, 55-65Hz Voltage: 220V, 380V

Main technical parameters of analog instrument

Accuracy class	Level 1.5
Vibration sweep range	10Hz-55Hz-10Hz
displacement amplitude	0.15mm
Sweep period	5
frequency scan rate	an octave per minute
Vibration direction	vertical
Maximum impact acceleration	50 m/s2
pulse shape	half sine wave
number of impacts	18
Pulse Width	11 milliseconds
Changes due to vibration or shock	<100% accuracy class
The influence of magnetic field	Under 0.4kA/m magnetic field, the change is less than 15% of the range
Dielectric strength	2000V, 50Hz, no breakdown or flashover within 1 minute
Installation direction	vertical

specification

1. Quick response, high precision, exquisite appearance
2. Comply with GB/T7676-1998 production standard
3. Dial scale and pointer design conform to German standard
4. Various ranges or sizes can be customized.

Product Description

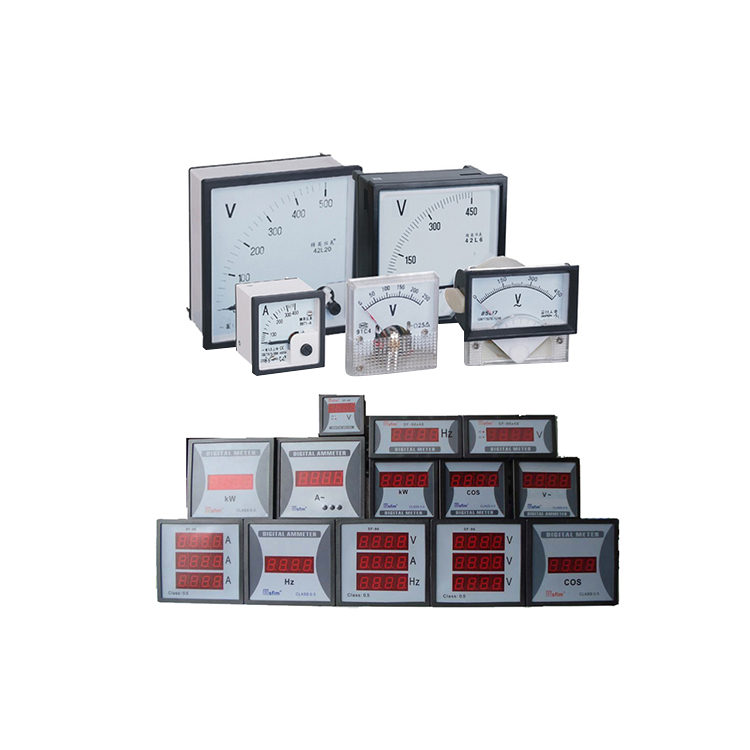

Analog MeterFeaturesEs
This series of products has two types: electromagnetic type and magnetoelectric type, which are suitable for control systems or power distribution systems, and display corresponding electrical parameters, such as AC and DC current, AC and DC voltage, power factor, frequency, etc.
Structural features of pointer instruments
Magnetoelectric type: the basic operating mechanism is an internal magnetic structure. The AC current/voltmeter is made by adding a thyristor rectifier circuit to the DC pointer of the internal magnetic structure. Since the rectification circuit is separated from the measuring mechanism, it is easy to maintain.
Electromagnetic type: composed of watch case, dial, coil, bracket, fixed iron core parts, moving iron, pointer, hairspring, good overload capacity and low cost.
The cover and body are made of crystal synthetic glass and black plastic respectively.
Pointer instrument standards and certificates:
Production standard: GB/T7676-1998
Safety performance specification: GB4793
Dial design specification: German standard DIN43790
Dial pointer design specification: German standard DIN43790
Instrument appearance production standard: GB/T1242

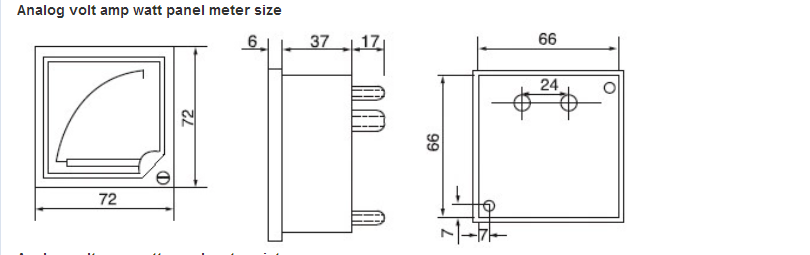

Instrument opening size production standard: IEC61554
International safety certification: CE
