High quality digital temperature controller REX-C700 smart pid control with alarm output

Supplier: Yueqing Topsun Electronic Technology Co., Ltd.
Region: Zhejiang, China
Contact: Mr Mike Lin
Price: $5.48 / 1 - 49 pieces
$5.28 / 50 - 99 pieces
$5.00 / >=100 pieces
Min. Order: 1 piece

Click here to contact

Product details

type:	industrial	Warranty:	1 year
exhibit:	LED display	connect:	compensation cable
Certification:	CE certification	brand:	Zhongtuosheng/ODM
Working conditions:	-5~50℃	size:	72*72MM
Material:	ABS	Packaging Details:	single product
output:	Relay, Solid State Relay, 4-20mA	power supply:	85-250VAC 50/60Hz
model:	Rex-C700	Function:	temperature monitor
custom made:	Yes	Origin:	Zhejiang, China
accuracy:	0.5

Product Description

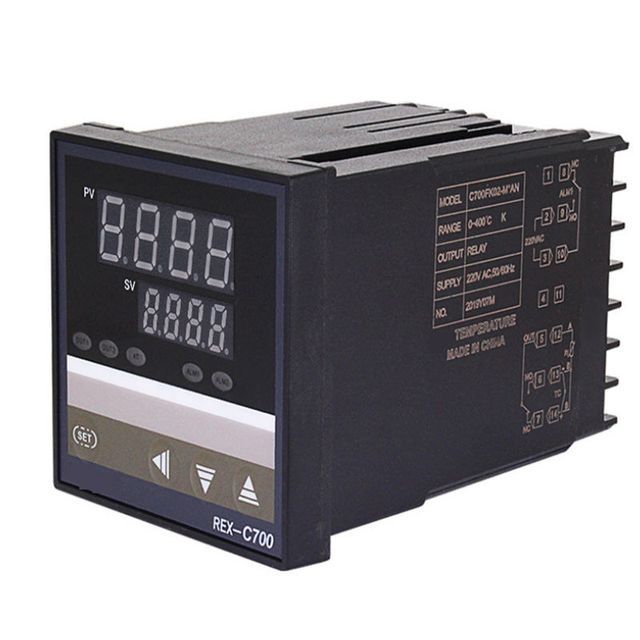

REX-C700 temperature controller

model.	Rex-C700
input signal	K, J, E, S, N, T, B, R, Cu50, Pt100, 0-5VDC, 1-5VDC, 0-20mA, 4-20mA
measurement accuracy	Class 0.5 (±0.5%F±1)
Sampling Rate	twice per second
control method	Adopt industrial and PID parameter control system, temperature control, faster response, smaller start-up modulation, higher precision than traditional PID.
control output	Relay contact output Voltage pulse output (12V DC) 4 to 20mA DC output
Alarm function	Upper limit value, lower limit value, deviation value, absolute value
Contact capacity (resistive load)	AC250V/3ADC28V/3A
power supply	220VAC±10% 50Hz/60HZ
energy consumption	≤10VA
working environment	Temperature: -10-50℃ Humidity: ≤85%R

Model rex-c100 panel size 48X48 hole size 45X45

Model rex-c400 panel size 48X96 with 45X92 opening

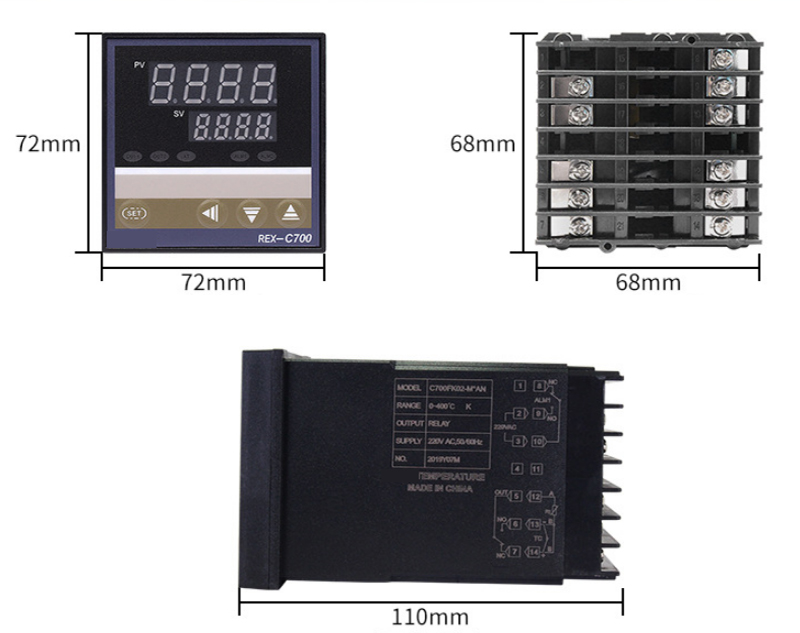

Model rex-c700 panel size 72X72 aperture 68X68

Model rex-c900 panel size 96X96 hole size 92X92

Working power supply: 220VAC 50/60HZ
Input method: general input is K, J, R, S, B, N, T, PT100
Output model: RELAY, solid state RELAY (SSR) (optional)
Control mode: PID control and self-tuning control
Measurement accuracy: ±0.5%FS
Product power consumption: less than 10VA
Collector operating environment: 0 to 50 °C, 30-80% RH, non-corrosive gas
