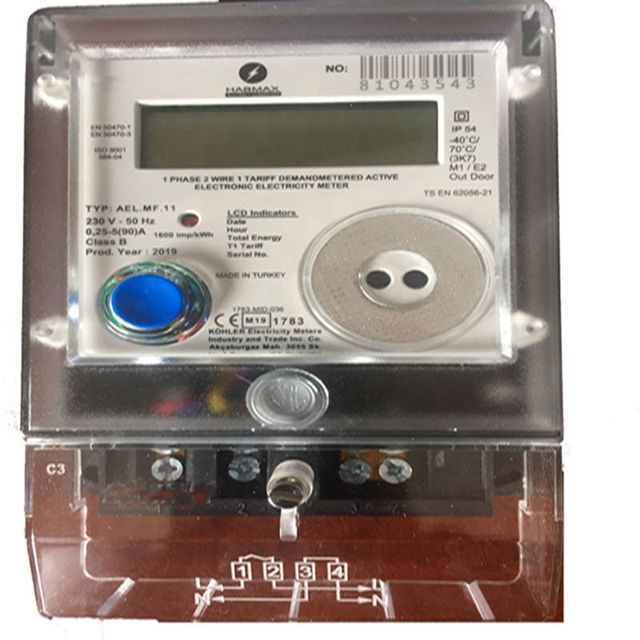

Manufacturer KHLSM Single Phase Electrometer Somali Type

Click here to contact

Product details

stage:	Simplex	Supply capacity:	10000 pieces per month
port:	Ningbo/Shanghai	model:	digital data system
Operating temperature:	20 degrees -40 degrees	Display type:	numbers only
Accuracy class:	1.0	The output voltage:	220 volts
Measuring energy range:	10-40A	payment terms:	L/C, Western Union, T/T, MoneyGram
Packaging Details:	Expert carton packaging	Origin:	Zhejiang, China
Tempering:	reliable	brand:	OEM production

Product Description:

DDS single-phase static watt-hour meter is specially designed for measuring active energy in the single-phase AC grid connected to the residential power supply system. It complies with the IEC 61036 standard and has high measurement accuracy. The meter has passed ISO9001 certification and can be designed according to different customer requirements.
The meter adopts large-scale integration (LSI) and surface mount technology (SMT) as well as key components of international brands and long life, high reliability and long service life.
The instrument has a pulse output, which can realize remote control and on-site power consumption monitoring. It is a safe and optimized solution designed for the deregulated energy market and the needs of automatic meter reading.
basic skills
Energy display via register or LCD
Bidirectional Active Energy Metering
Action indicated by pulse LED
Therefore, use an optically isolated output transistor that complies with DIN 43864 to output
optional features
Reverse indication: LED indicator lights up when the current reverses
Anti-tampering with load connected between line and ground
fully closed register
High Frequency Magnetic Immunity Register
Inversion Prevention Register
Transformer connection
- Technical data

Applicable standard	Serve life	accuracy class	Serving temperature	Serving voltage range	strength consume	Exceed voltage protection
IEC 61036 -2000	10 years	Class1, Class2	-30℃~+65℃	0.7~1.2Un	less than 0.7W or 6VA	12kV

Rated voltage	110V, 120V, 220V, 230V, 240V
reference frequency	50Hz or 60Hz
Basic current (maximum current) A	2.5(10) 2.5(15)	5(20) 5(30)	10(40) 10(60)	20(80) 10(100
