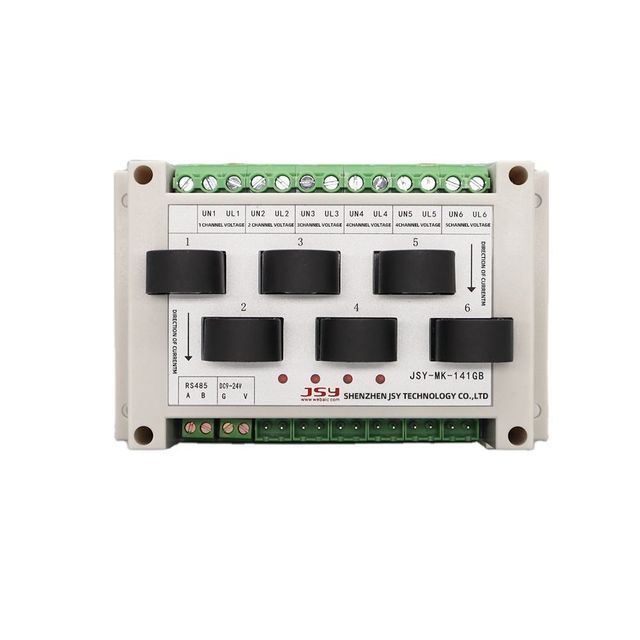

Factory direct sales intelligent multi-channel electronic watch strap RS485 communication power meter

Click here to contact

Product details

Measuring energy range:	/	aspect:	/
Accuracy class:	/	model:	JSY-MK-141G
voltage range:	AC 0-380V	shape:	customer request
brand:	jessie	Current scope:	AC0-100A
Voltage resolution:	0.01V	Package preview:
Operating temperature:	/	Origin:	China
usage:	use electricity	Protocol:	MODBUS-RTU
feature:	safe and durable	Current resolution:	0.1mA
Power resolution:	0.01 kWh	product name:	Three-phase power quality detector
payment terms:	L/C, D/A, T/T, MoneyGram	The output voltage:	/
stage:	three phase

Specification

project			Technical Parameters
Measurement	load type	three-phase communication


	voltage range	100V, 220V, 380V, etc. optional
	current range	5A, 20A, 50A, 100A, 200A, 300A, 400A, 500A, etc. are optional; external open current transformer models are optional
	Voltage resolution	0.01V
	current resolution	0.1mA
	power resolution	0.01W
	power resolution	0.01 kWh
communicate	Interface Type	2 RS485 communication ports


	Protocol	MODBUS-RTU
	Software can set "n,8,1", "e,8,1", "o,8,1", "n,8,2" data format	Can be set, "n,8,1", "e,8,1", "o,8,1", "n,8,2"; default "n,8,1"
	baud rate	Can be set to 2400, 4800, 9600bps, the default baud rate is 9600bps
	baud rate
	mailing address	The default address is 1, which can be set
Performance	Typical power consumption	≤10mA


	power supply	AC220V
	overload capacity	1.2 Imax sustainable
working environment	Operating temperature	-30～+70℃; storage temperature: -40～+85℃


	Relative humidity	5～95%, no condensation (below 40℃)
	working environment	No explosion, corrosive gas and conductive dust, no obvious shaking, vibration and shock
size	size	1169458mm
installation method	installation method	35mm standard DIN rail installation or screw fixed installation hole distance is 104*70M
