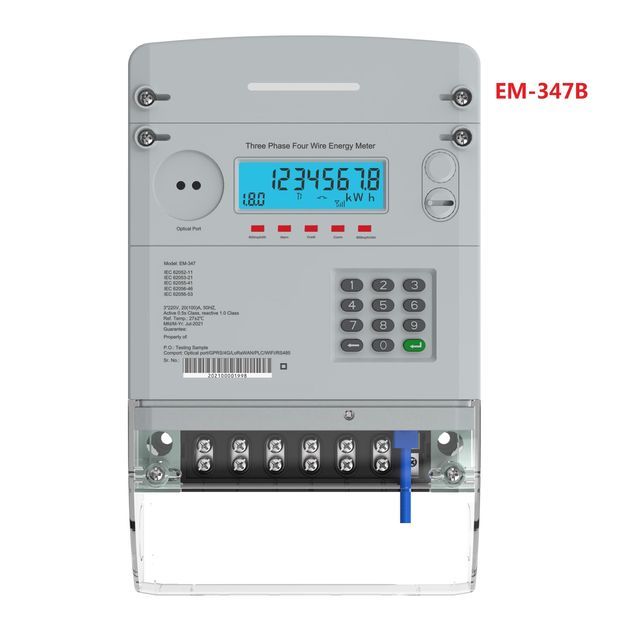

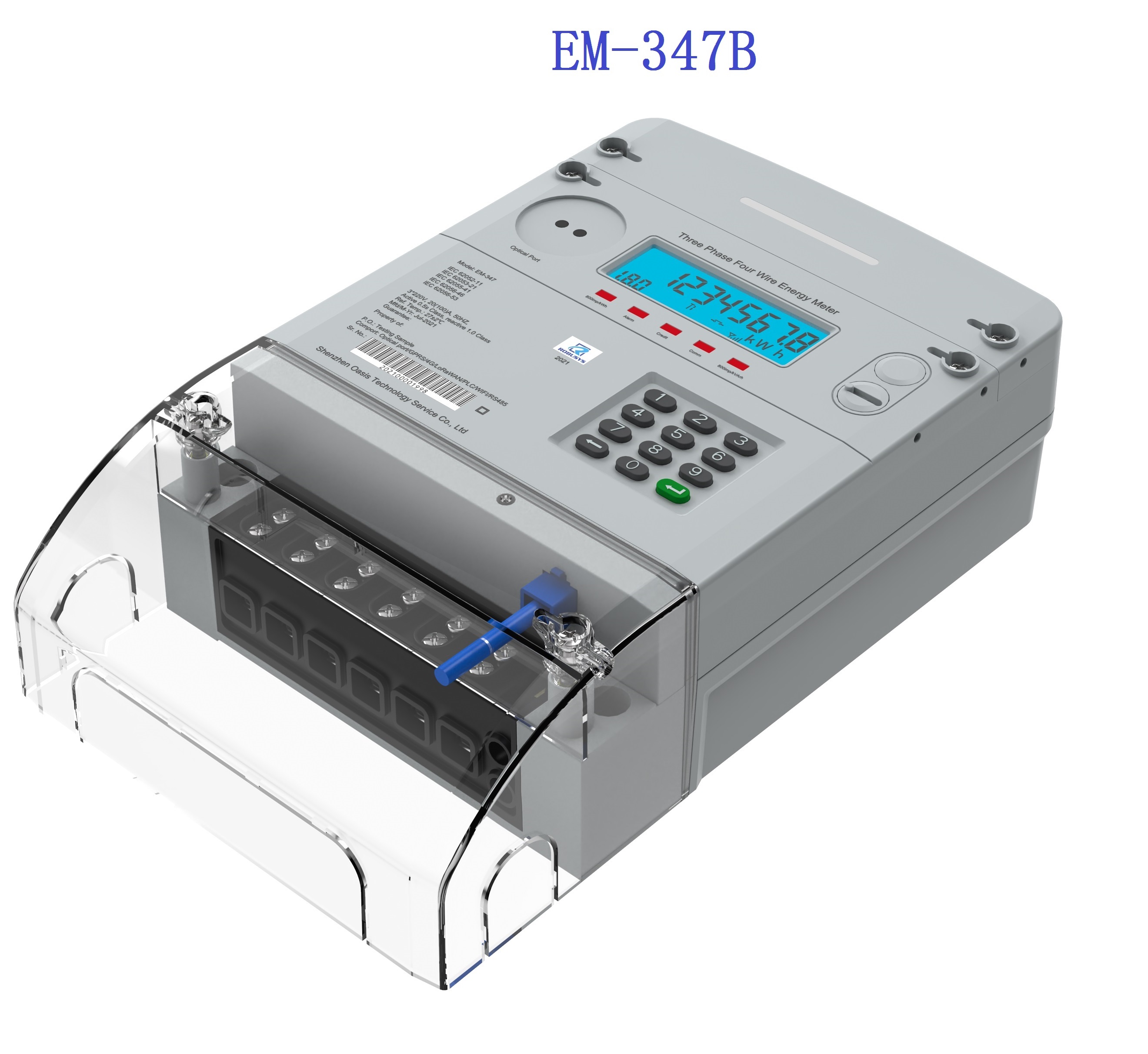

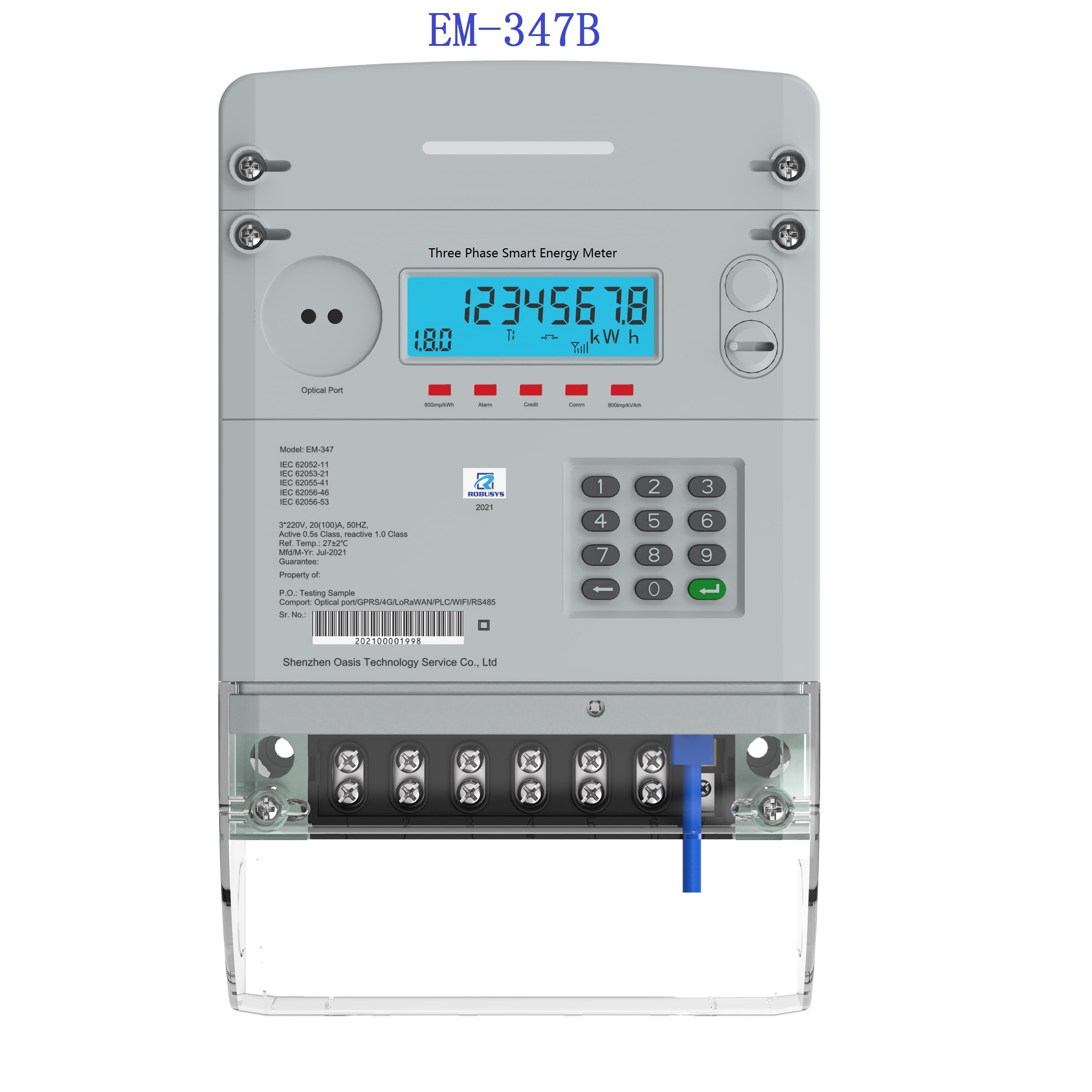

ROBUSYS EM-347B Three-phase STS keyboard prepaid electricity meter with narrow PLC and optical port

Supplier: Shenzhen Oasis Technology Service Co., Ltd.
Region: Guangdong, China
Contact: Mr Wayne Chueng
Price: $49.00 / 10 - 999 pieces
$45.00 / 1000 - 9999 pieces
$43.00 / >=10000 pieces
Min. Order: 10 pieces

Click here to contact

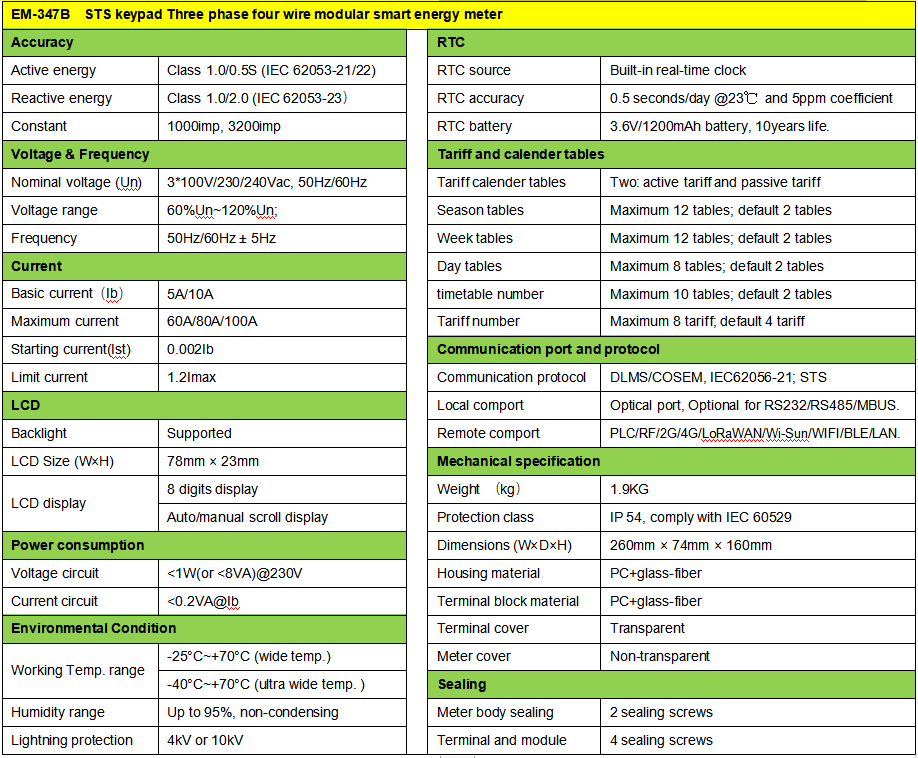

Product details

special function:	Communication module and battery are replaceable	Accuracy class:	0.5S/1.0,0.5S/1.0
Packaging Details:	1. 12 meters per box; 2. 17kg/box	Supply capacity:	8000 boxes per day
stage:	1 phase 2 wires, three phase	Operating temperature:	-40℃~65℃
payment terms:	L/C, Western Union, T/T, MoneyGram	brand:	Robusis
port:	Shenzhen, Hong Kong	Measuring energy range:	99999999
aspect:	260mm 74mm 160mm	The output voltage:	110V/220V/230V/240V
Origin:	Guangdong, China	model:	EM-347B
current:	5/100A	communicate:	Optical port and narrow PLC module
Display type:	numbers only	Release mode:	STS Keypad Prepaid Electricity Meter

Product Description

The EM-347 B is a three-phase STS prepaid and AMI electricity meter with direct-connect modular design, which is used to accurately meter electric energy for commercial and residential customers. The instrument supports multiple communication media for remote management, hot-swappable communication modules, such as PLC/RF/2G/4G/Wi-Sun/LoRaWAN/WIFI/BLE and optical port/RS232/MBUS/RS485/LAN for wired communication, etc. DLMS /COSEM or IEC62056-21 protocol. Excellent features in tamper resistance, anomaly detection and events. Drive to ensure utility asset protection and revenue growth. It can be used for prepaid or postpaid applications.

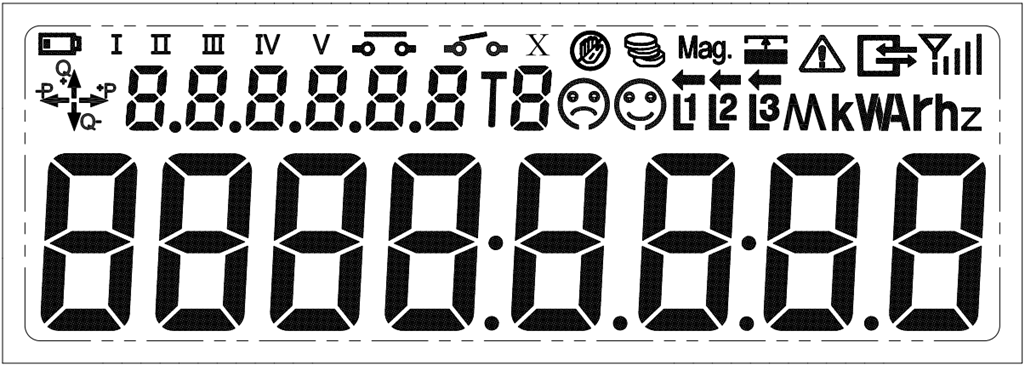

LCD Monitor

The instrument can measure and display active energy, reactive energy, maximum demand, voltage, rate, current, and display wireless signal and relay status on the LCD screen.

Customized service

Communication port:LoRaWAN/Wireless Network/GPRS/3G/4G/NB-IoT/PLC/RS485/M-Bus.

Communication protocol: DLMS, STS, IEC1007, DL645 or Modbus-RTU.

Case: Customize new case according to user requirements.

Software and hardware functions: design new functions according to user requirements.

Accuracy grade: 0.5s, 1.0, 2.0 electric energy meter can be provided.

Anti-tamper features: Various anti-tamper features

APP software: It can provide mobile APP for AMI software.

certified

NB CE: MID certification (European CE: Measuring Instrument Directive)

FCC ROHS certification

STS certification

or other user criteria

Packaging and Shipping

Company Profile--R&D Center

Company Profile--EMC Laboratory

Company Profile-Meter Calibration lines

FAQ

Q: Are you trading company or manufacturer?

A: We are ODM manufacturer. Warmly welcome you to visit our factory.

Q: How long is your delivery time?

A: Generally it is 3-10 days if the goods are in stock. If the goods are not in stock, it is 20-25 days, it is based on quantity.

Q: Do you provide samples? Is it free or extra?

A: Yes, we can provide samples with lower price. If you place an order, all or part of the sample fee will be deducted from the item. Please contact us.

Q: What's your payment terms?

A: Usually, 100% TT in advance. If you have items with other payment terms, please feel free to contact us via:

Email ID: wayne.chueng(@)hotmail.com

Skype ID: wayne.chueng(@)hotmail.com
