Good price digital temperature controller 220V XMTD industrial sensor switch temperature recorder

Supplier: Yueqing Topsun Electronic Technology Co., Ltd.
Region: Zhejiang, China
Contact: Mr Mike Lin
Price: $8.26 / 10 - 99 pieces
$8.02 / 100 - 299 pieces
$7.79 / >=300 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Warranty:	1 year	model:	Xiamen 2301
Supply capacity:	100000 pieces per month	Operating temperature:	0~60℃
custom made:	Yes	Relative humidity:	<85%RH, no corrosion
type:	industrial	Packaging Details:	single product
temperature range:	0~400(℃)	Energy source:	AC 220V, 50/60Hz
Origin:	Zhejiang, China	Certification:	CE
brand:	Zhong Tai Sheng	port:	Yiwu/Ningbo/Shanghai
accuracy:	1.0

Product Description

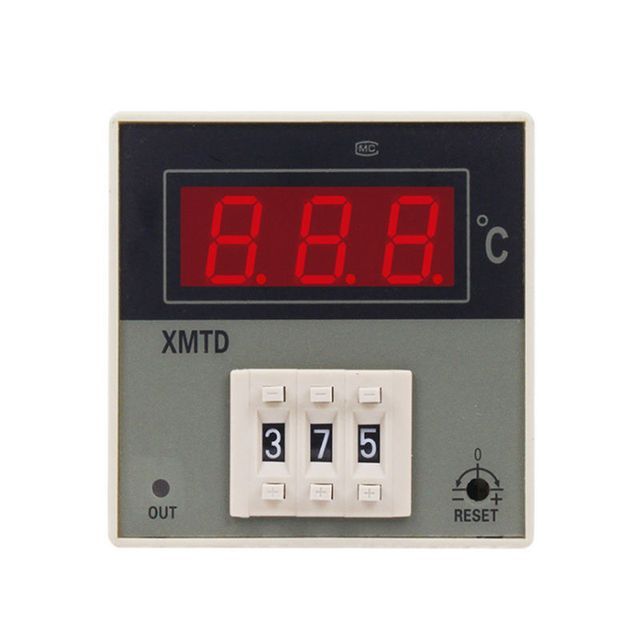

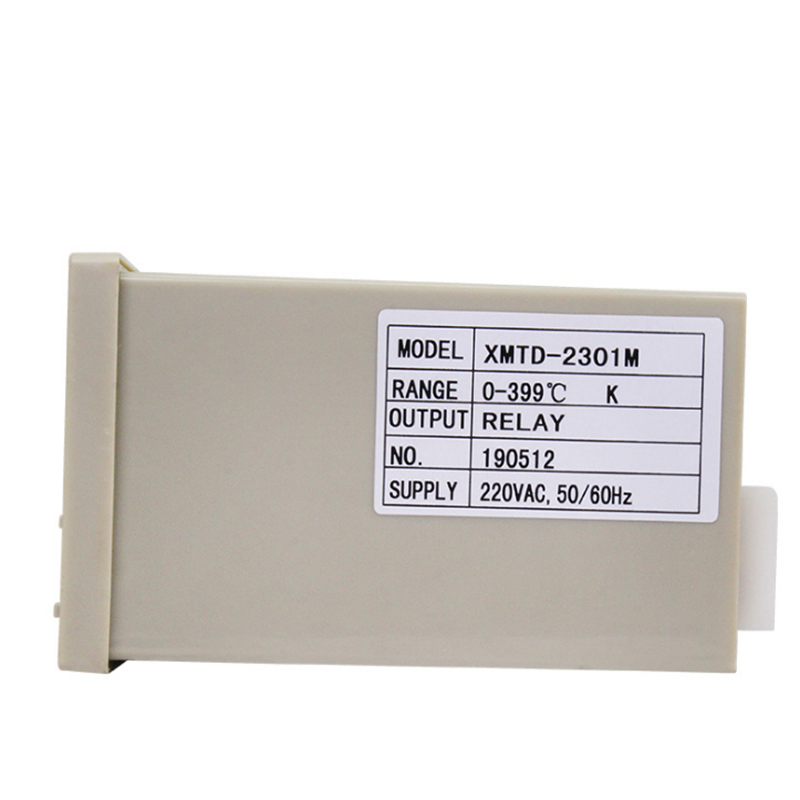

High Quality AC220V Digital Temperature Controller PID XMTD Digital Temperature Controller

1. Features

Adopt industrial grade CPU, strong anti-interference ability; Multiple input signals and output types are available; Multiple alarm types, suitable for different applications; Stable and reliable performance, meeting low-cost temperature control requirements.

2. Specifications

input signal	Thermocouple (××1 type) RTD (××2 type) voltage (××3 type) resistance (××4 type) current (××5 type)
Adjustment method	Two-position adjustment (×0×type) Three-position adjustment (×2×type) Time proportional adjustment (×3×type) SCR phase shift (×6× type) SCR zero crossing (×7× type) Thyristor three-phase zero-crossing (×8× type) PID adjustment (×9× type)
Shape and installation dimensions	Overall dimension 160×80mm Installation dimension 152×76mm’
Power supply rated voltage	AC220V±10% 50/60Hz
accurate	The display accuracy is 0.1 grade, and the control accuracy can reach ±1°C
working environment	Temperature 0~50℃, relative humidity ≤85%
Contact output capacity	Relay connection point 5A 250VAC, no connection point voltage DC12V for SSR
proportional cycle	Relay: 30 seconds, no connection point: 2 seconds.
energy consumption	≤5W
temperature range	Thermocouple 0~1800℃ RTD -200~600℃
