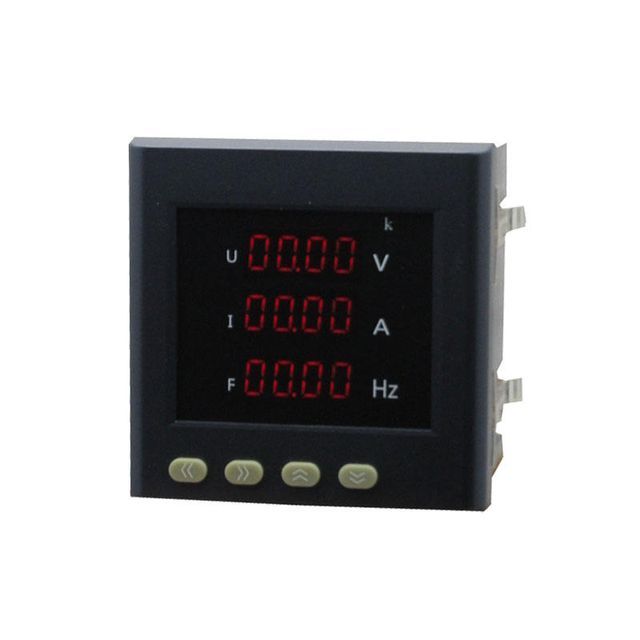

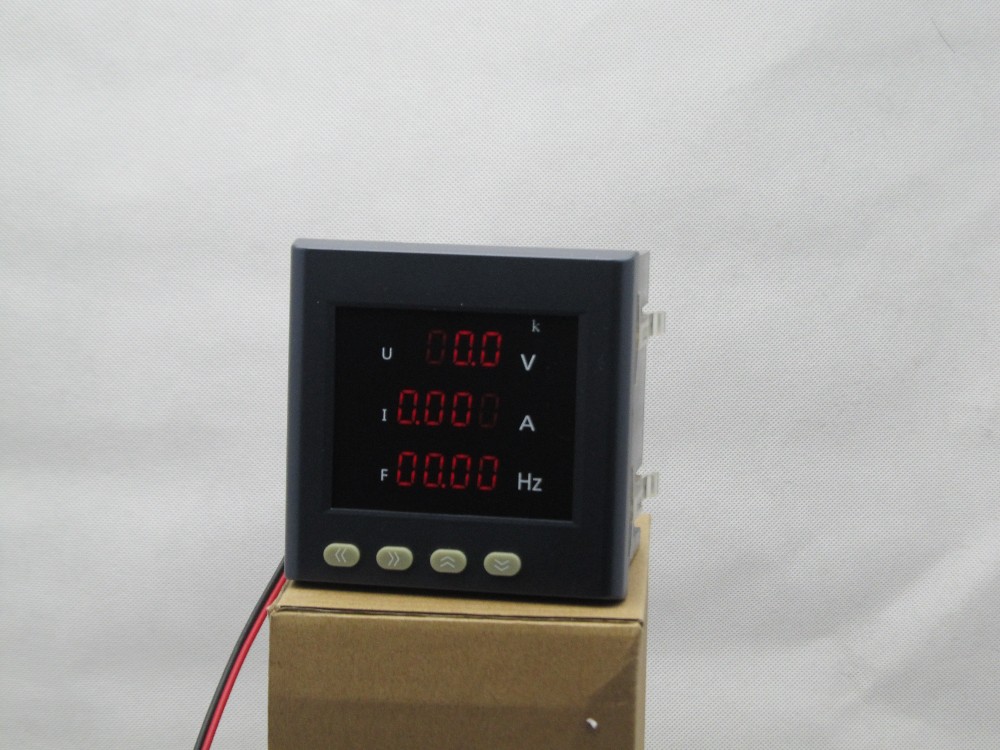

193UI Voltage Surface Panel Mount Three Phase Digital Panel Meter Replacement 500A Digital Display Panel Strap RS485
- 20.00 >=50 pieces
| payment terms: | Western Union, T/T | Measuring range: | 0-9999A |
| Display type: | numbers only | brand: | blue jay |
| aspect: | 80*80mm | model: | BJ-193UI |
| Accuracy class: | 0.5 | Supply capacity: | 5000 pieces per month |
| Operating temperature: | -10~55℃ | voltage: | 86~265Vac/dc |
| Origin: | Chongqing, China |
BJ-192/193 series digital display panel meters are specially developed for the indication and monitoring of three-phase circuits, replacing analog display meters, reducing installation manpower and optimizing panel space utilization.
Ideal for the protection of single-phase and three-phase networks, the digital voltmeter is panel mounted, monitored and often has superior and subordinate alarm functions. Programming parameters are protected by a password. BJ-192/193 digital panel meters are equivalent to Schneider digital panel meters in all functions.
Features of Digital Panel Meters
·Class 0.5 (192 series)/0.5S (193 series) electrical parameter measurement
· Current measurement .../5 or .../1 A
·Measurement function coverage:
Current, voltage, three-phase total power, power factor, frequency
·RS-485 MODBUS-RTU communication
・Expandable input/output module (1 module)
ITF technology: electrical insulation protection input and output
·Large character LED screen display
·A variety of installation sizes are optional
