Taidacent Handheld 0-10V 4-20mA PWM Current Volt Signal Generator Square Wave Generator Analog Function Generator with Display
- 20.18 5 - 24 pieces
- 19.68 25 - 99 pieces
- 19.18 100 - 499 pieces
- 18.18 >=500 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Current Steps: | 0.01 mA | Single packing size: | 9X9X9 cm |
| Whether to bring batteries: | Yes | Voltage step: | 0.01V |
| brand: | Teda Center | Sales Unit: | Single item |
| Gross weight per piece: | 0.255 kg | Currently accurate: | 0.01 mA |
| Power protection: | Yes | Current range: | -25mA to 25mA |
| voltage range: | -12.5V to 12.5V | Short output: | Yes |
| Packaging Details: | Boxed | power supply: | DC12V to 30V/Micro USB 5V |
| Voltage Accuracy: | 0.01V | Origin: | Guangdong, China |
| model: | Signal generator with display 4-20Ma 0-10V | Display Type: | Simulation only |
Taidacent Handheld 0-10V 4-20mA Current Voltage Signal Generator PWM Square Wave Generator Analog Function Generator with Display
Product Description

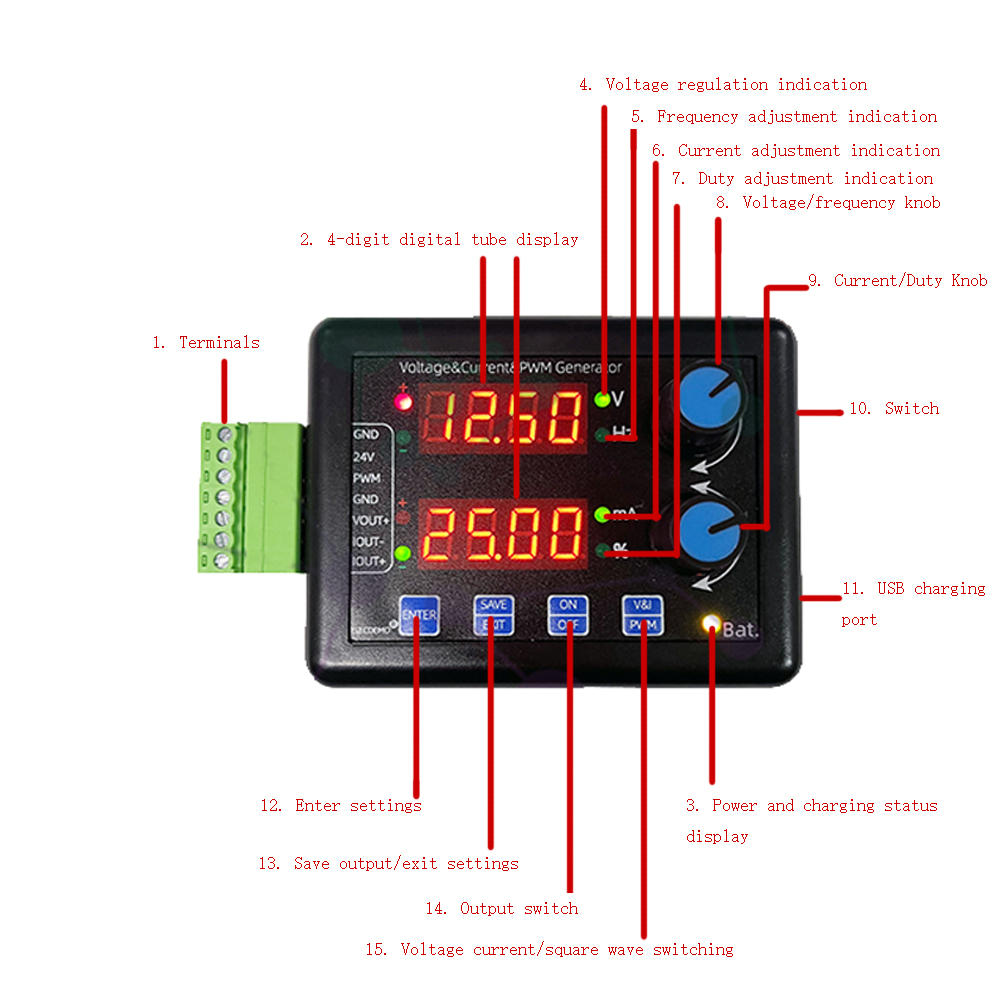

Output mode: voltage, current square wave independent adjustment, independent display, independent generation, voltage source + current source + square wave (PWM) source, three source adjustment methods: voltage current/square wave frequency duty cycle, there is an independent adjustment knob, clockwise rotation increases the output by one step, counterclockwise rotation decreases the output by one step, press the knob, the adjustment position scrolls forward one position (the adjustment position will flash).
Specification
thing | value |
model | Signal generator with display 4-20Ma 0-10V |
power supply | DC12V to 30V/Micro USB 5V |
Whether to bring batteries | Yes |
Short circuit output | Yes |
Power protection | Yes |
voltage range | -12.5V to 12.5V |
Accurate voltage | 0.01V |
Voltage step | 0.01V |
Current range | -25mA to 25mA |
Current Accurate | 0.01 mA |
Current Step | 0.01 mA |
Square wave frequency | 1Hz to 5Khz |
Frequency step | 1 Hz |
Accurate frequency | 0.2 Hz |
Square frequency duty cycle step | 0.1% |

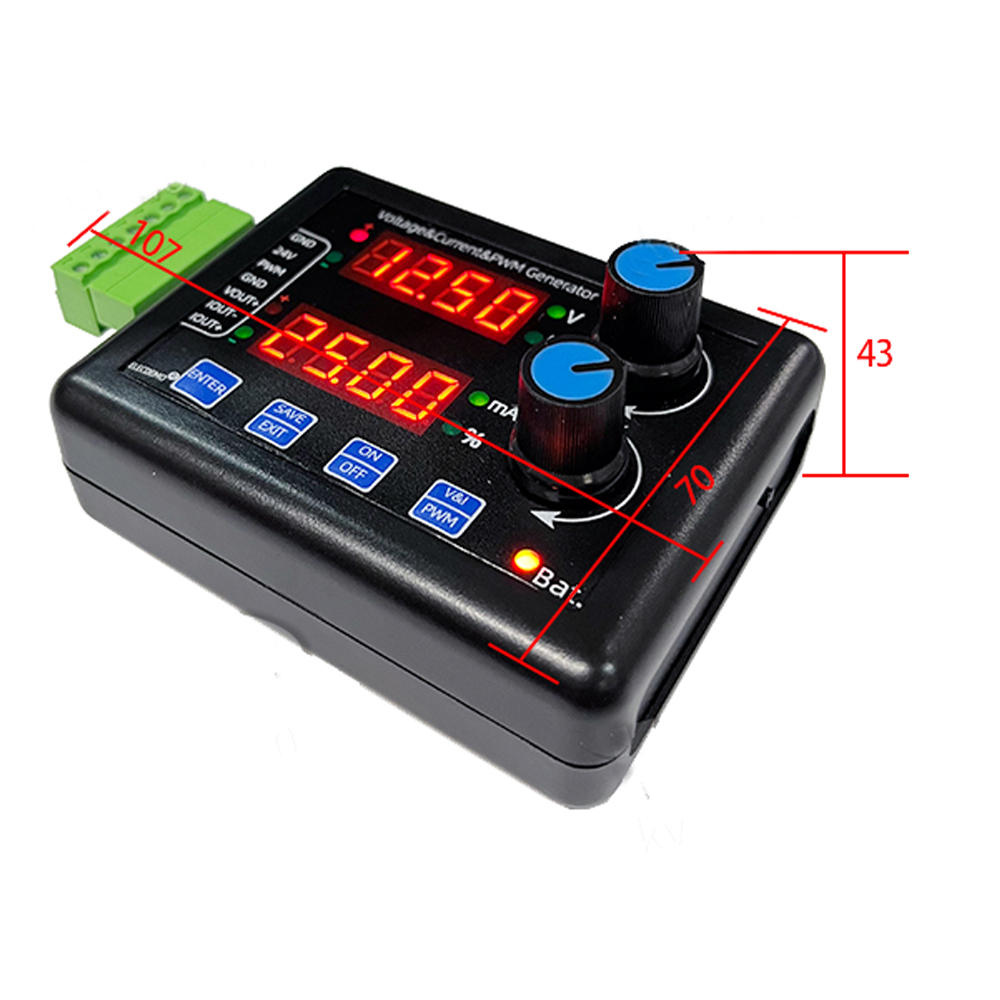

size | 107*70*43mm |
