AC Voltmeter 1000V Resolution 1V LED Digital Voltmeter Power Supply DC 5V Voltage Tester AC Voltage Panel Meter
- 12.00 >=50 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| model: | YB5135B | Supply capacity: | 10000 pieces per month |
| payment terms: | Western Union, T/T | Display type: | numbers only |
| Origin: | Chongqing, China | brand: | blue jay |
| Measuring range: | 0-600V | level of accuracy: | 0.5 |
| aspect: | 70*40*30 | Operating temperature: | 10~65 |
product description
YB5135B
· 0.56" LED, red/blue characters optional
· Appearance adopts 5135 standard size
Wide power supply range: AC 100-240V AC power supply (global)
Can test "positive and negative voltage or current"
· Easy installation, strong anti-interference ability
· Good stability, high precision, low power consumption
Product parameters
· Working voltage: +5V±5%
·Working temperature: -10～+50℃·Working humidity: 10-80% (no
condensation)
·Working pressure: 80～106kPa·Sunlight exposure: no direct exposure
·Power supply: DC5V
·Working current: <100mA
·Test voltage: AC1000V

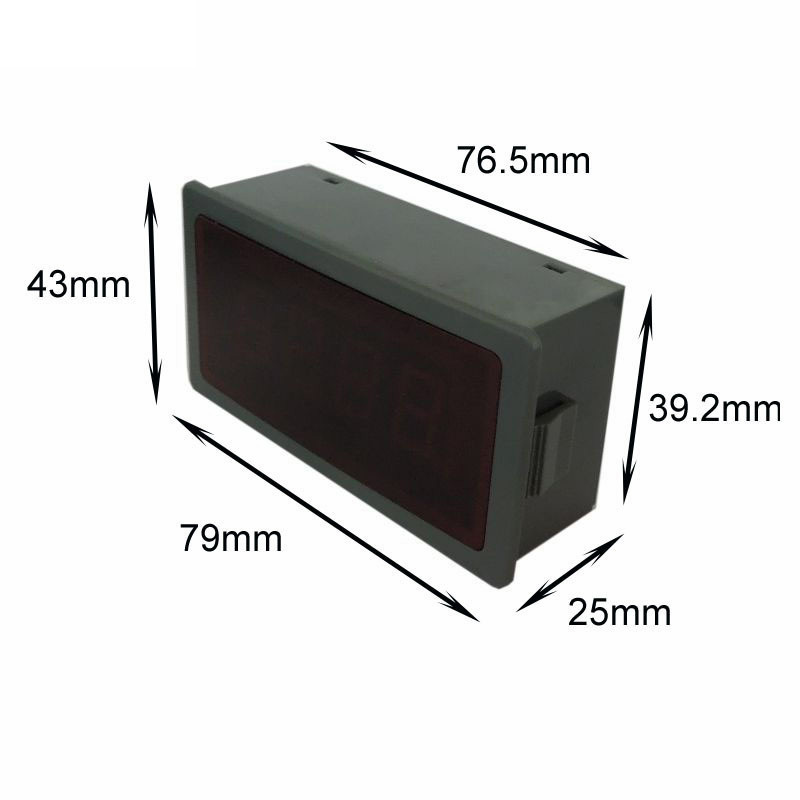

·Size: 79*43*25mm
·Mounting hole: 76*39.5mm
·Display mode: 0.56 LED red/blue
·Test voltage: AC1000V
·Size: 79*43*25mm
·Mounting hole: 76*39.5mm
·Display mode: 0.56 LED red/blue
digital
·Measurement accuracy: 0.5% (±2 digits)
·Measuring rate: ≥2 times/S
·Measurement accuracy: 0.5% (±2 digits)
·Measuring rate: ≥2 times/S
·Resolution: 1V
Voltage | Test range (V) | Resolution (5) | impedance |
AC 200mV | 0-199.9 | 0.1 mV | ≥10KQ |
AC 2V | 0-1.999 | 0.001 | ≥100KQ |
AC 20V | 0-19.99 | 0.01 | ≥1MQ, |
AC 200V | 0-199.9 | 0.1 | ≥1MQ |
AC 500V | 0-500 | 1 | ≥3M Q |

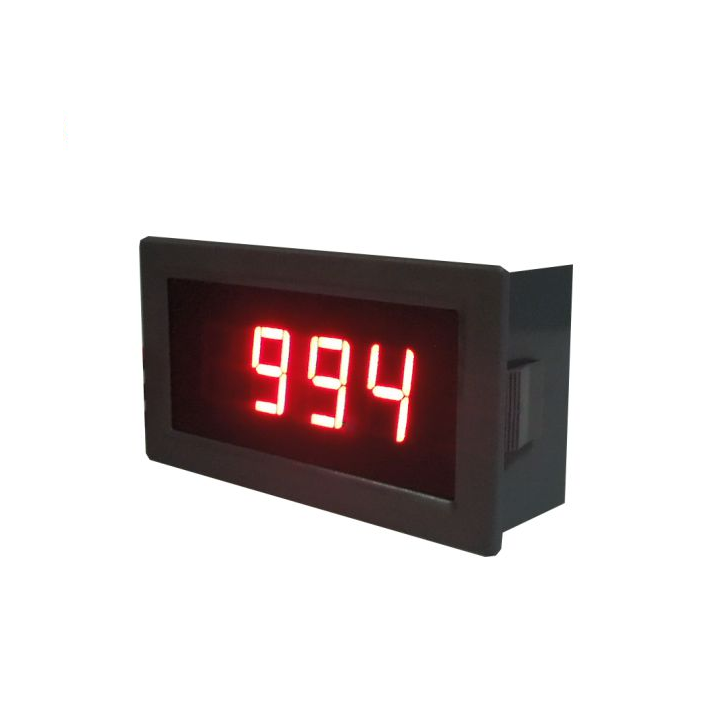

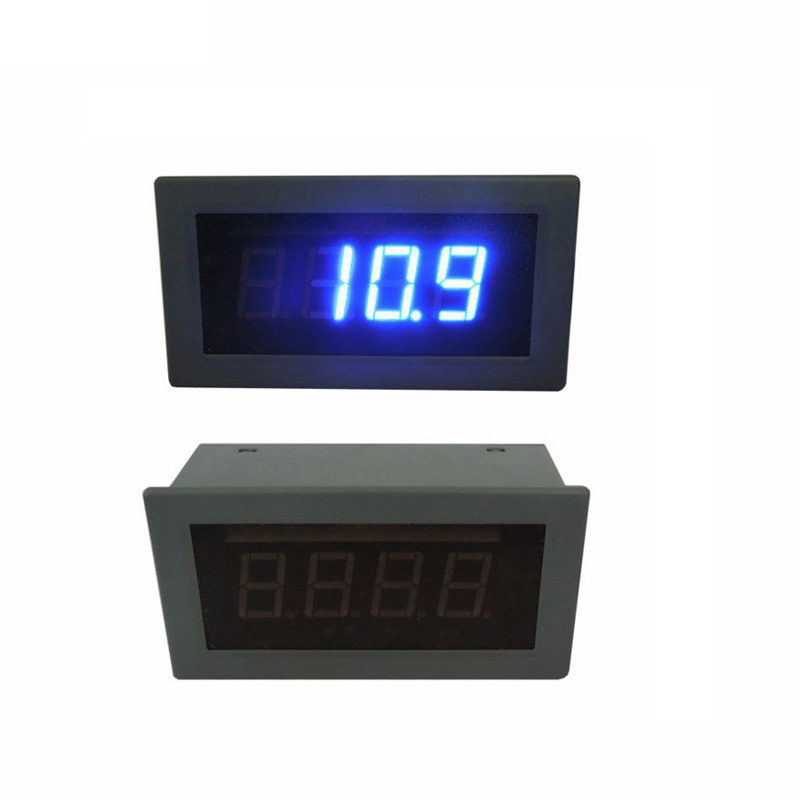

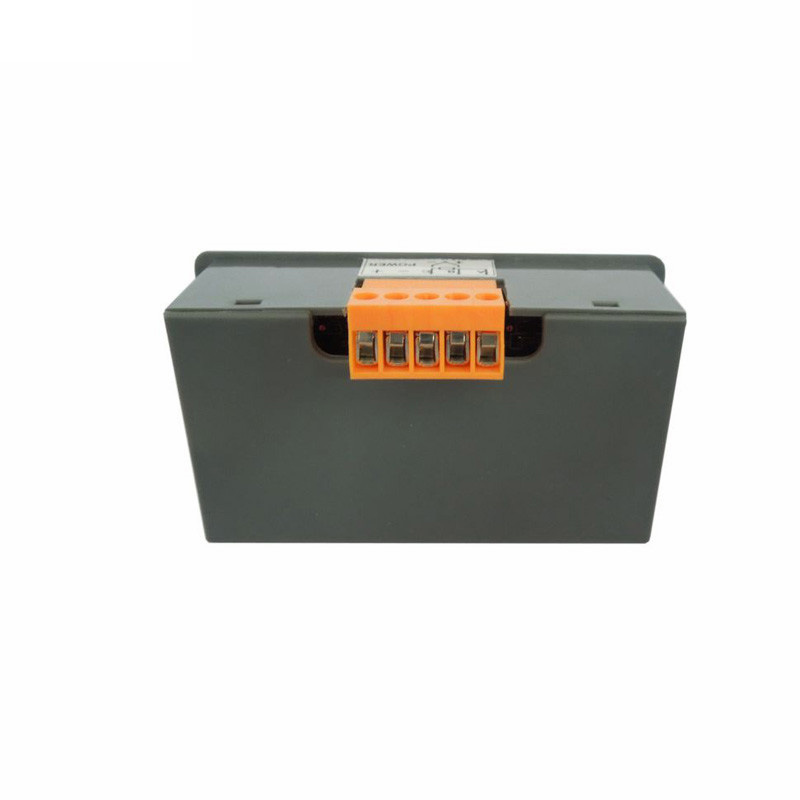

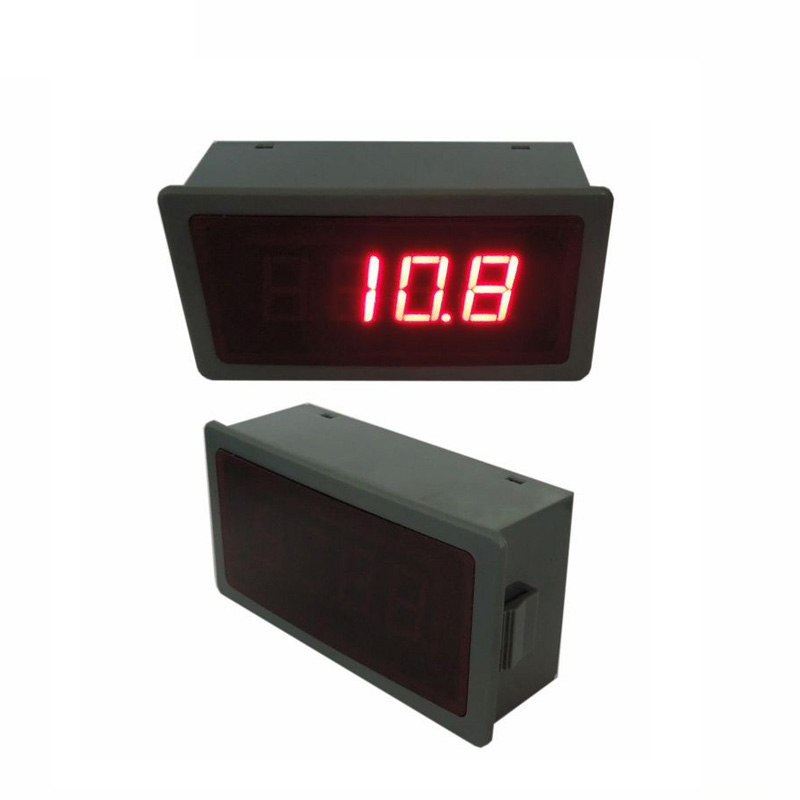

detailed picture

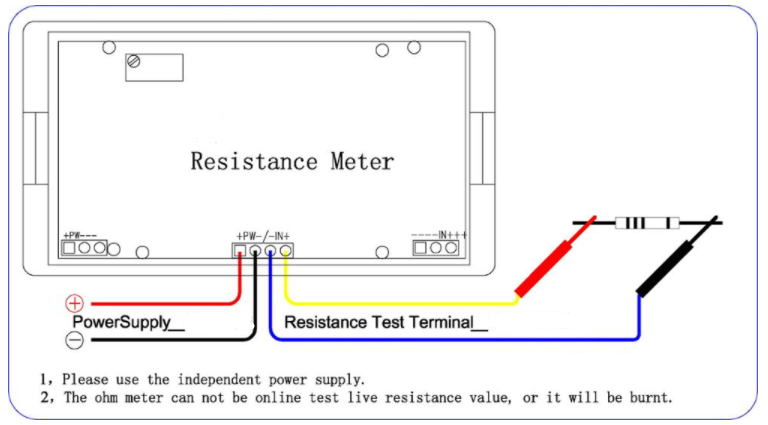

how to use
application
Product packaging
