63A TUYA WiFi smart ground leakage over and under voltage protector relay device switch circuit breaker energy power kilowatt hour meter smart life

Supplier: Yueqing Taixin Electric Co., Ltd.
Region: Zhejiang, China
Contact: Mr Ahmed Gao
Price: $15.00 / 2 - 49 pieces
$14.00 / >=50 pieces
Min. Order: 2 pieces

Click here to contact

Product details

model:	WiFi smart meters and energy savers	level of accuracy:	0.1
Operating temperature:	-10℃-65℃	Display type:	Numbers only
Rated voltage:	230V	Measuring range:	AC 80-400V
Current setting range:	1-63A	Single piece packaging size:	10X10X10cm
Sales unit:	Single product	Packaging details:	Standard export packaging
brand:	Paclitaxel	Gross weight of single piece:	0.250kg
aspect:	35mm guide rail	Place of origin:	Zhejiang, China
frequency:	50Hz/60Hz	Working voltage range:	AC 80-400V (single phase)

parameter

Rated voltage

230V; Frequency: 50Hz/60HZ

Function:
1. Undervoltage protection 150V-190V (adjustable) (default: 170V)
2. Overvoltage protection 250V-300V (adjustable) (default: 270)
3. Overcurrent protection 1A-63A (adjustable) (default: 63A)
4. Reconnection time (delay time): 5s-90s (default: 30s)
5. Leakage protection: 10-99mA
6. Power display range: 0-99999.9kw/h
7.Voltmeter
8. Ammeter
9. Electric energy meter
10. Timer

Note: If the protector trips 3 times due to leakage protection, the device will no longer automatically reconnect until the user checks out where the power outage is and repairs it to ensure personal safety!

PS: This device has a memory function. When the power is off, the device can remember the power, overvoltage, undervoltage, and overcurrent values.

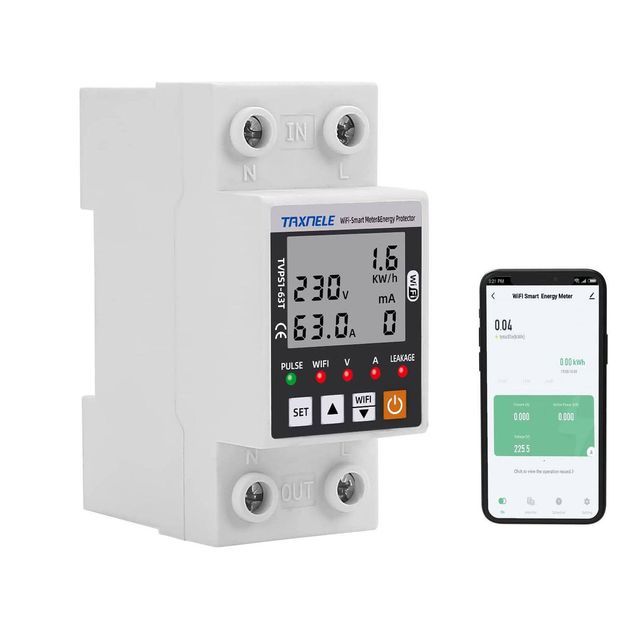

Product display
