Adjustable 30A PWM 6-60V DC motor speed control module DC LED digital display speed governor power control governor switch

Supplier: Yueqing Taixin Electric Co., Ltd.
Region: Zhejiang, China
Contact: Mr Ahmed Gao
Price: $7.20 /piece
Min. Order: 1 piece

Click here to contact

Product details

current:	20A	place of origin; place of origin:	Zhejiang, China
Voltage:	12V 24V	Single package size:	5X5X5 cm
usage:	CVT controller	type:	12v 24v 48v 9v-60v 10a Pwm DC Motor
application:	widely	Model:	Variable speed control switch
Packaging Details:	carton	model:	paclitaxel
Gross weight per piece:	0.150kg	Rated current:	20A
Card:	paclitaxel	Sales unit:	single product
brand:	paclitaxel	weight:	0.5KG
Warranty:	18 months

1.) Parameters

Name	Variable speed control switch

DC Motor Speed Controller

feature
- The motor governor supports soft start and soft stop, reducing the mechanical stress on the motor and shaft.

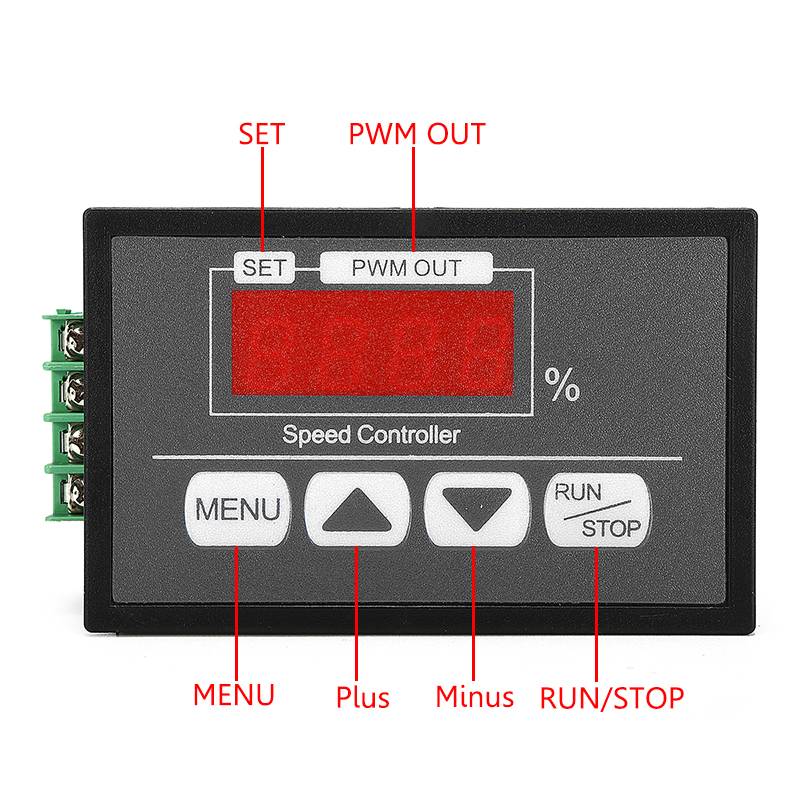

- Designed with digital display panel for easy reading and convenient speed adjustment settings.
- The input of the DC motor controller is connected to DC, not AC, otherwise it will burn.
- Make sure the positive and negative connections are correct, otherwise the controller will be damaged.
- Acceleration and deceleration value setting: every time you press the plus or minus key, the speed changes by 1%, 2%, 5%, 10%, 15%, 20%, 25%.
- Only for brushed motors, not for brushless motors.

Specification

1. Input voltage: DC6-60V
2. Output current: 0-30A
3. Continuous current: within 20A
4. Speed control mode: jog
5. Support motor: DC brush
6. Speed range: 0 - 100%
7. Control frequency: 21KHZ

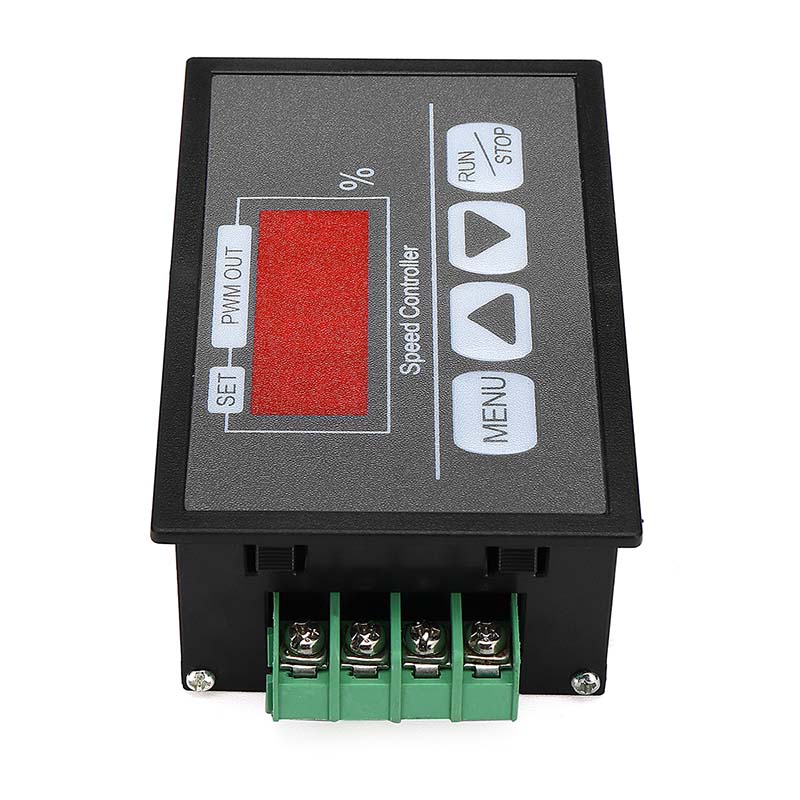

8. Wiring method: fence terminal
9. Weight: 115g

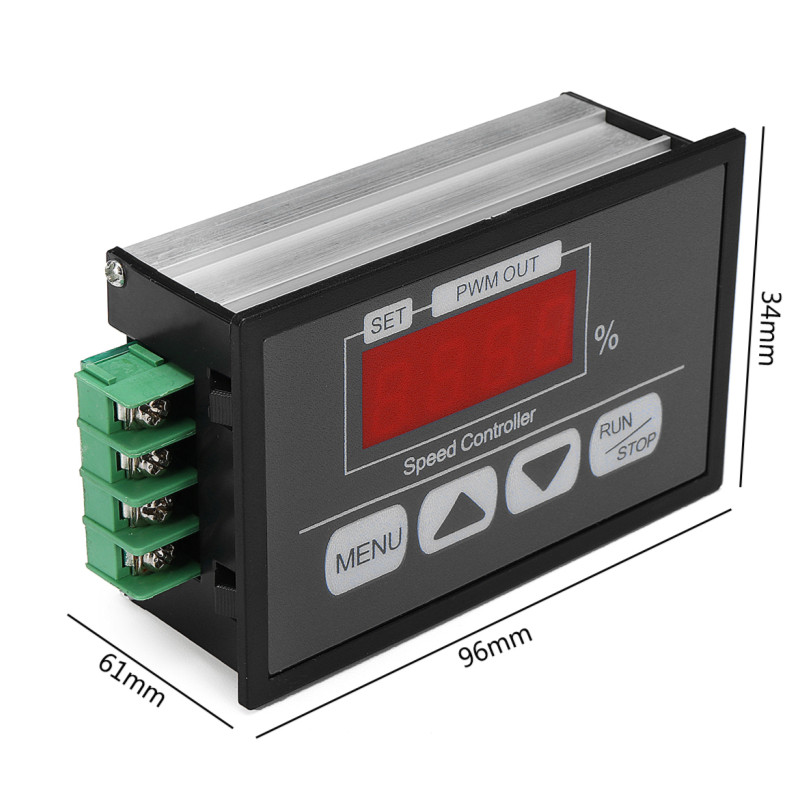

10. Size: 96*61*34mm
