remote control RC 60A 24-48V FOC RS48V CAN dual encoder servo motor driver controller
- 185.00 1 - 4 pieces
- 160.00 5 - 9 pieces
- 150.00 >=10 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Packaging Details: | carton | Warranty: | 1 year |
| brand: | uu motor | model: | SVD48V30A1 |
| Maximum current: | 30A per motor | place of origin; place of origin: | Jiangsu, China |
Product Description

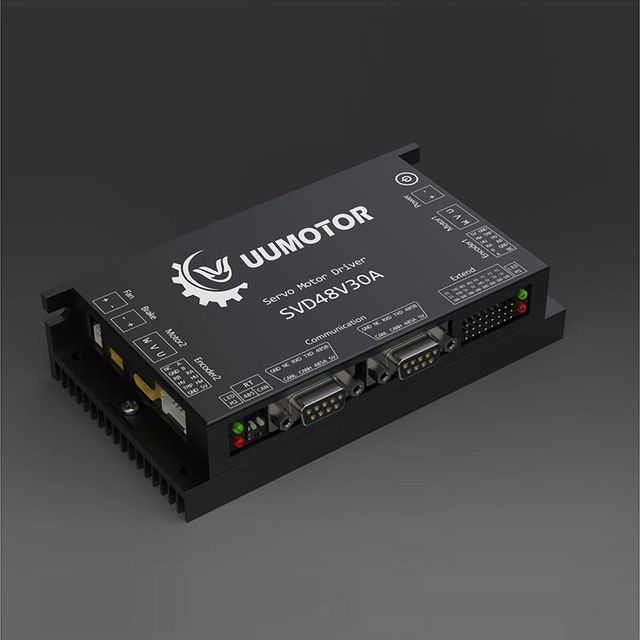

SVD48V30A is our latest brushless motor controller, which is suitable for motors with hall sensors or motors with hall sensors and incremental encoders. This is a new type of servo motor driver, which is suitable for the drive control of automatic control machines such as robots and AGVS. FOC speed-mode makes the motor run at low speed with maximum torque, which is very popular nowadays. We also added RC function to the driver, which can remotely control the operation and rotation of the two motors.
Operating Voltage | 18-60V | continuous current | 20A per motor | ||
Features | FOC, hall sensor, encoder, RS485, CAN, remote control | ||||
It can also be controlled by ADC, that is, use the accelerator to control the speed. What's more interesting is that this new driver supports RC controller, but you need to buy RC yourself.
A driver or dual-drive controller can control two motors or one motor as required, or even four motors can be controlled by two drivers. It can work with encoder motors or even regular hall sensor brushless motors. It is programmable and we have PC programming software.
A driver or dual-drive controller can control two motors or one motor as required, or even four motors can be controlled by two drivers. It can work with encoder motors or even regular hall sensor brushless motors. It is programmable and we have PC programming software.
remote support

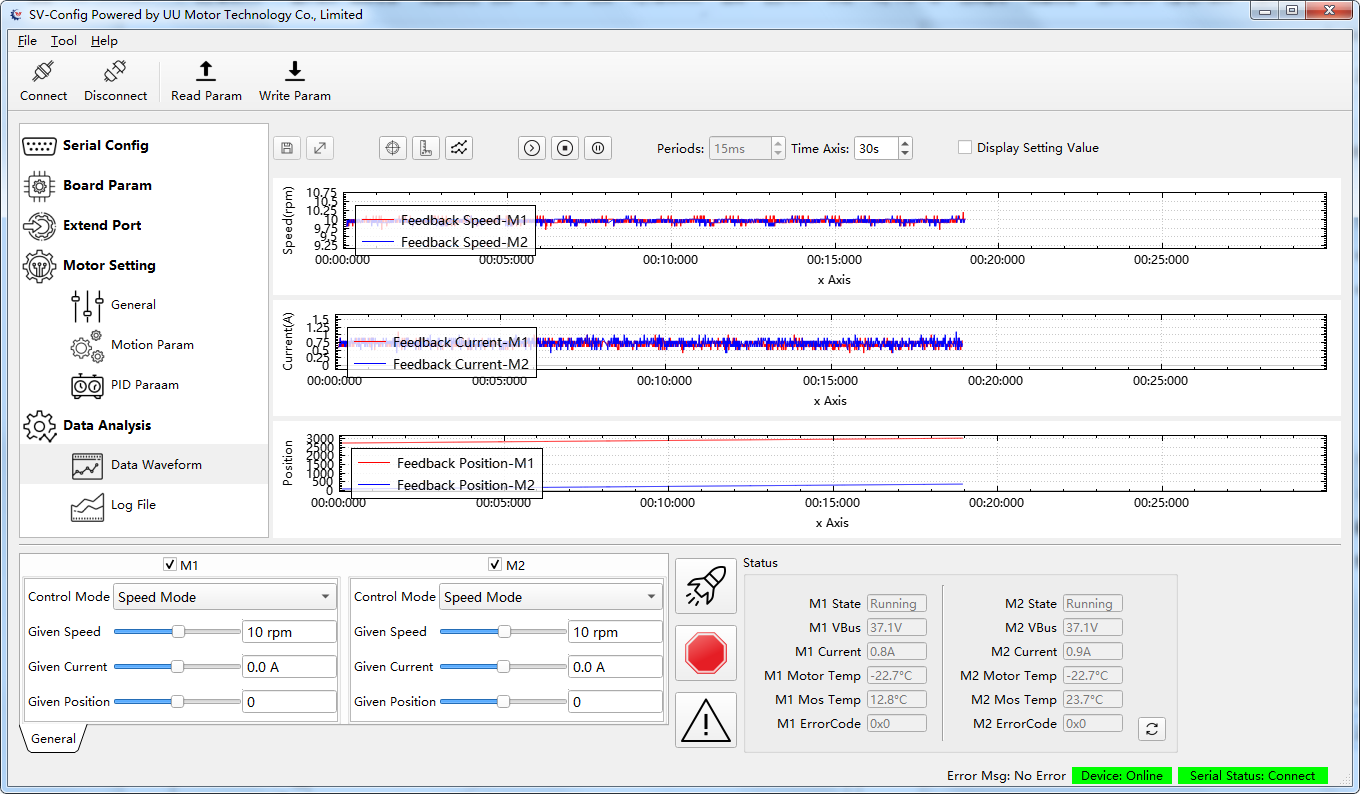

You can use such a Microzone connection driver to control the motor, it is very easy to connect and operate through our computer software, all data is easy to set.If you want to see our software or user guide, please contact me or visit our official website. Dual drive or quad motor drive is easy to file.
Tp to connect the driver to the pc programmable software, you need a RS232-USB conversion cable, our side is $25 each. You can also buy by your side.
6 inch single shaft PU tire gear low speed motor with drive. You can buy it as a set. The motor is 24-48v, 100rpm-200rpm can be customized.
8 inch single shaft PU tire gear low speed motor with drive. You can buy it as a set. The motor is 24-48v, 100rpm-200rpm can be customized.
