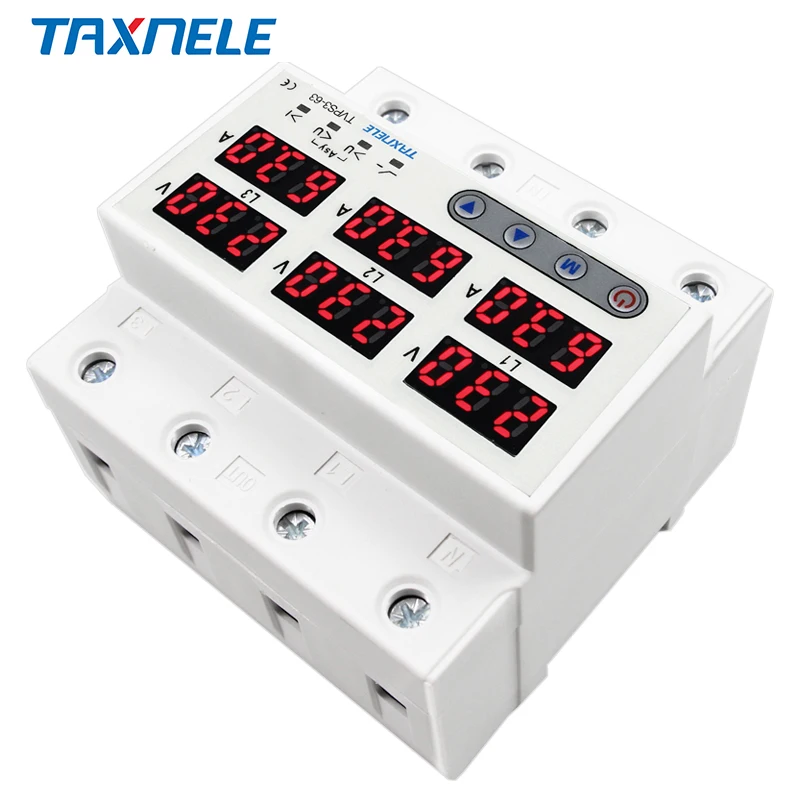

3 three phase Voltage Current Relay Protector 63A 60A 220V 3P+N Over Under Voltage Relay Current limiter automatic protect
- 28.50 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Single gross weight: | 0.8 KG; | Usage: | JIW; |
| Place of Origin: | Zhejiang China; | Display: | DIGITAL; |
| Single package size: | 5X5X5 cm; | Brand Name: | taxnele; |
| Model Number: | Voltage Protection; | Application: | General-purpose; |
| Color: | AS PIC; | Protection: | Under And Over Voltage Protection; |
| Warranty: | 18 months; | Current Type: | AC; |
| Efficiency: | high efficiency; | Input voltage: | 220V; |
| Phase: | Single Phase; | Main Products: | Under And Over Voltage Protection; |
| Output voltage: | 220V; | Frequency: | 50Hz/60Hz; |
| Selling Units: | Single item; | Packaging Detail: | PAPER BOX; |
parameters
1.Over-voltage Adjustable protection
2.Under-voltage Adjustable protection
3.Over-Current Adjustable protection
4. Asymmetry protection
5.Phase squence protect
6.Automatic time Adjustable recovery
Parameter
| Code | Parameter | Value |
| P1 | Power On Time | 1-500S |
| U1 | Over Voltage | 230-300V |
| U2 | Recovery Voltage | 220-295V |
| U3 | Recovery Time | 1-500S |
| U4 | Power Off delay Time | 0.1-30S |
| U5 | Under Voltage | 140-210V |
| U6 | Recovery Voltage | 145-215V |
| U7 | Recovery Time | 1-500S |
| U8 | Power Off delay Time | 0.1-30S |
| U9 | Voltage Deviation | _9.5 to 9.5% |
| U10 | Asymmetry | 20-99V |
| U11 | Phase squence protect | on/off |
| C1 | Over Current | 3-63A |
| C2 | Recovery Time | 1-500S |
| C3 | Power Off delay Time | 0.1-30S |
| C4 | Current Deviation | _9.5 to 9.5% |
| C5 | Continues Over Current Times | 1-20 off |

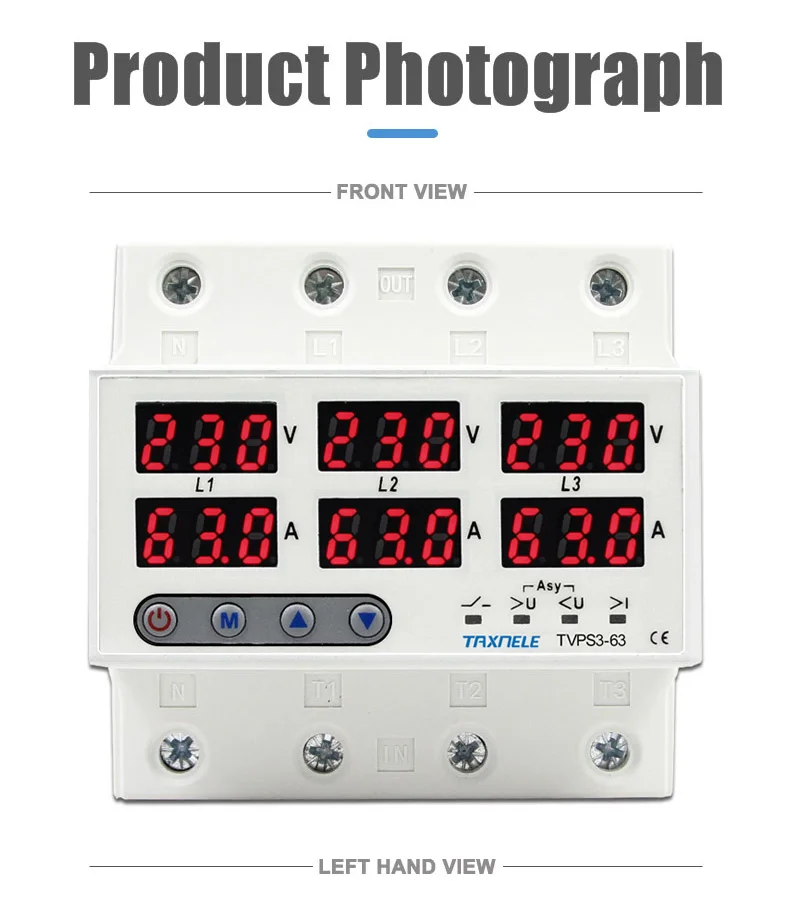

Product display
