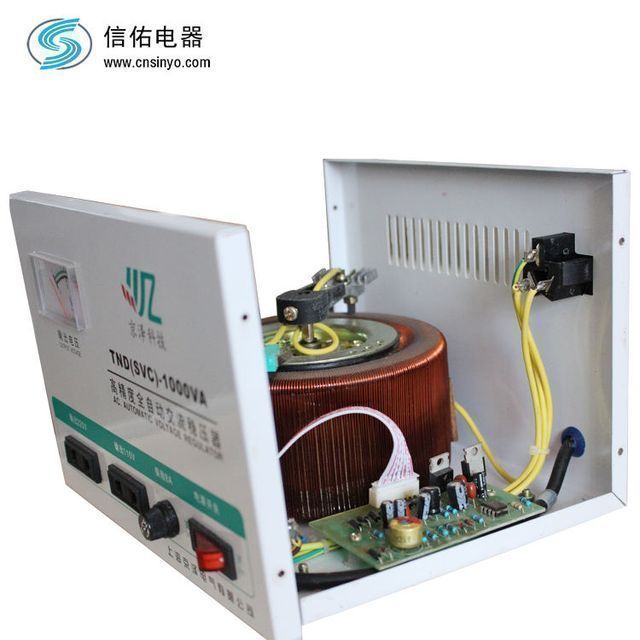

Single-phase AC servo motor voltage regulator AC solid-state voltage regulator

Input voltage

130V-250V

The output voltage

220V±3%

frequency

50Hz/60Hz

efficiency

>90%

Response time

<1S (for 10% input voltage deviation)

ambient temperature

-10℃~+40℃

Relative humidity

<90%

wave distortion

non-fidelity waveform

power factor

0.8

Insulation resistance

≥5Ω

Delay function

Long time 5±2mins, short time 5±2secs

Protect

Overvoltage, overcurrent, short circuit, overload, overheating

Model (VA)

Dimensions (L*W*H)

net weight

Quantity/package

500VA

19*16*14cm

4 kg

4

1000VA

21*19*17cm

5.5 kg

4

1500VA

21*19*17cm

5.8 kg

4

2000VA

29*24*20cm

10 kg

2

3000VA

29*24*25cm

12 kg

2

5000VA

36*22*29cm

15 kg

2

7000VA

36*22*29cm

16.5 kg

2

10000VA

42*24*36cm

27 kg

1

15000VA

42*38*76cm

64 kg

1

20000VA

42*38*76cm

70 kg

1

30000VA

45*43*87cm

95 kg

1

5000VA(vertical)

32*28*46cm

17 kg

1

10000VA(vertical)

36*28*51cm

36 kg

1
