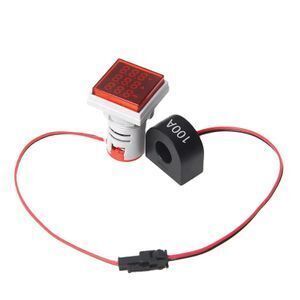

AC 0-100A AC V+A+HZ LED Traid display 22mm square 12v led digital panel analog voltmeter and ammeter indicator frequency meter
- 2.25 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Frequency Measuring range: | 0-99HZ; | Voltage: | AC 50-380V; |
| Selling Units: | Single item; | Dimensions: | 21.75mm*22mm*52.69mm; |
| Display Type: | Digital Only; | Accuracy: | ± 2% A V HZ; |
| Packaging Detail: | Standard packaging; | Ampere Measuring range: | AC 0-100A; |
| Single gross weight: | 0.1 KG; | Model Number: | AD101-22VAH2S; |
| Package Preview: | ; | Accuracy Class: | ± 2% A V HZ; |
| Measuring Range: | AC 0-100A AC 50-380V 0-99HZ; | Operating Temperature: | -25℃ to 55 ℃; |
| Sample rate: | About 1time/s; | Brand Name: | NIN; |
| Color: | red green yellow blue white; | Single package size: | 8.4X5.3X4.55 cm; |
| Voltage Measuring range: | AC 50-380V; | Display resolution: | 1V 1A 1HZ; |
| Input circuit power loss: | <2VA; | Place of Origin: | Zhejiang China; |
| No input signal hint message: | A display 00.0 V display 00.0 HZ display 00.0; | Mounting diameter: | 22mm; |
LED Traid display
| type | AD101-22VAH2S |
| place of origin | Zhejiang Province,China(Mainland) |
| brand name | NIN |
| mounting diameter | 22mm |
| ampere measuring range | AC 0-100A |
| voltage measuring range | AC 50-380V |
| measuring range | 0-99HZ |
| color | red green yellow blue white |
| accuracy | ± 2% A V HZ |
| display resolution | 1V 1A 1HZ |
| sample rate | About 1time/s |
| input circuit power loss | <2VA |
| no input signal hint message | A display 00.0 V display 00.0 HZ display 00.0 |
Notice:Can not used in the electric environment with frequency conversion , high frequency, strong harmonic interference signal.
