MCP FC1024 Counter/Digital Frequency Meter/Portable Frequency Meter 1.24GHz
- 60.00 >=10 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Supply capacity: | 300 pieces per month | Voltage: | 110V / 220VAC |
| Accuracy class: | 10-5 | payment terms: | L/C, Western Union, D/P, T/T |
| Display type: | numbers only | brand: | main control board |
| aspect: | 230*85*240mm | Origin: | China Shanghai |
| port: | Shanghai | model: | FC1024 |
| Measuring range: | 2.4GHz | Operating temperature: | normal |

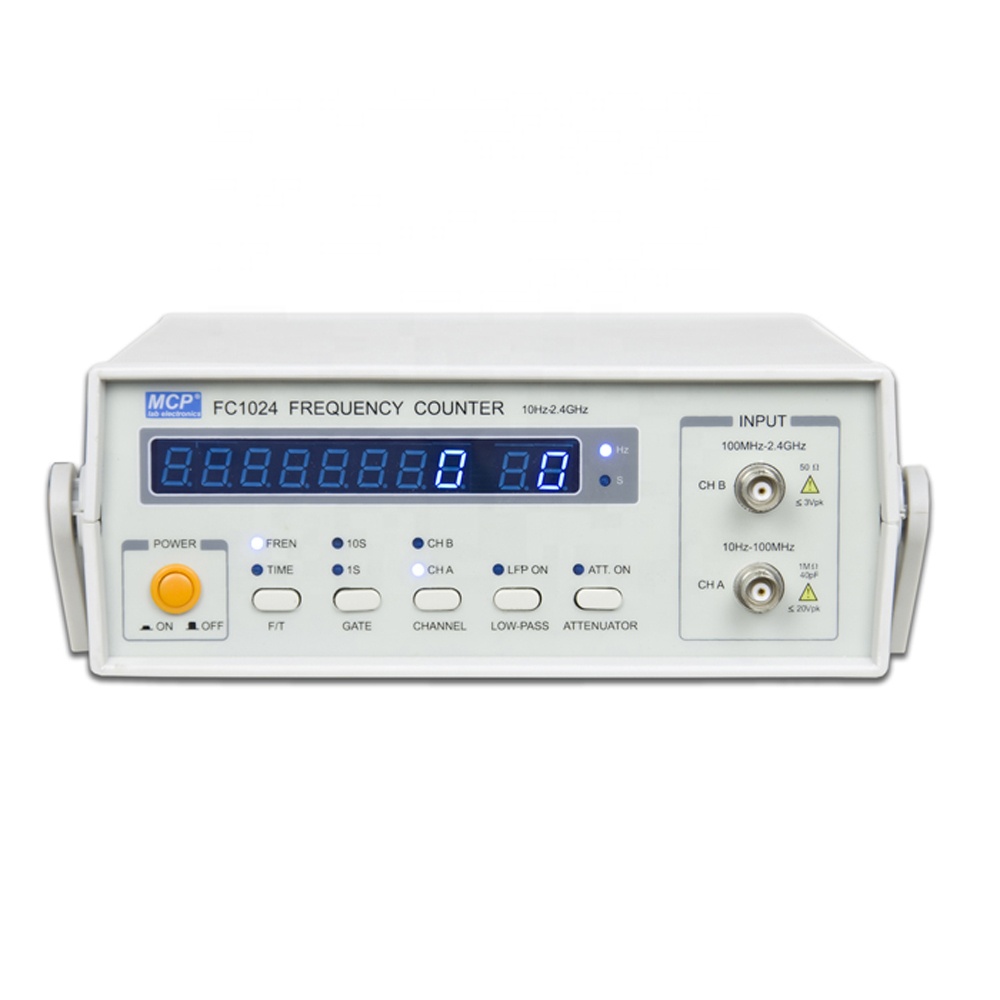

FC1024 Multi-Function Counter/Frequency Counter
feature
.8-digit LED display
.Measurement range up to 2.4GHz (Channel B)
.Low pass filter for low frequency measurements
.Double channel input
| Function | Measurement frequency, period | |
| Measurement frequency range | 10Hz~100MHz (Channel A) 100MHz~2.4GHz (B channel) |
|
| cycle range | 100ns~1s (A channel) | |
| sensitivity | 35mV (1~20Hz) 20mV (20Hz~100MHz) 30mV (100MHz~2.4GHz) |
|
| input voltage | 250V (Channel A), 1/20 attenuation 30mVrms~1Vrms (Channel B) |
|
| input resistance |
1MΩ (Channel A) |
|
| Channel A Low Pass Filter | -3dB bandwidth about 100kHz | |
| Channel A fader. | 0dB/20dB | |
| couple mode | air conditioner | |
| Measurement error | ± time base error ± trigger error ± LSD | |
| door time | 1 second, 10 seconds | |
| Dimensions (WxHxD) | 230×85×240mm | |
| weight | 1.5 kg | |
