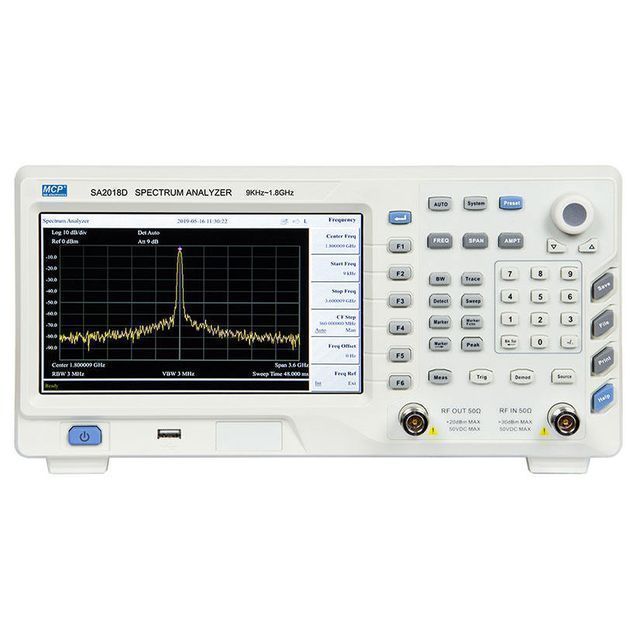

MCP SA2000 - Chinese 1.8 GHz 3 GHz digital spectrum analyzer

Supplier: Shanghai MCP Corp.
Region: Shanghai, China
Contact: Ms Doris Liu
Price: $3150.00 / 1 - 4 pieces
$2800.00 / >=5 pieces
Min. Order: 1 piece

Click here to contact

Product details

Frequency Range:	3.0GHz	place of origin; place of origin:	China Shanghai
type:	desktop	Packaging Details:	2 per box
payment terms:	letter of credit, wire transfer	model:	SA2030
Supply capacity:	200 pieces per month	port:	Shanghai
brand:	MCP

SA2000 seriesSpectrum Analyzer

feature

.Frequency range 9kHz~1.8GHz/3.0GHz

. Resolution bandwidth 1Hz~3MHz, sensitivity better than -158dBm

.Dual source function, tracking/independent

. Acquiring Fast Transient Signals Using a Dedicated Transient Detector .

.Waterfall curve, modulation quality analysis, audio demodulation function

.Field strength, demodulation measurements, S11/S21 parameters and channel measurements

.Pass-fail and other field test early warning capabilities

.8" color TFT-LCD display, multi-track running measurement

Technical data		SA2018/2018D	SA2030/2030D
Frequency Range		9kHz~1.8GHz	9kHz~3GHz
Frequency resolution		1 Hz
Frequency reading accuracy		±(frequency indication×frequency accuracy+1%span+10%RBW+0.5×[span/(sweep dot-1)]+1Hz)
Aging rate		<2ppm/year
temperature drift		<1ppm, 15℃~35℃
bandwidth resolution		10Hz~500kHz, 1MHz, 3MHz
Resolution filter shape factor (60dB: 3dB)
RBW accuracy		<5% (typ.)
video bandwidth		10Hz~3MHz, 1-3-10 sequence
DANL (preamp off/on)		100kHz~1MHz, <-100dBm-3x(f/100kHz)dB/<-120dBm-3x(f/100kHz)dB 1MHz~10MHz, <-130dBm/<-150dBm 10MHz~1GHz, <-135dBm/<-155dBm 1GHz~1.8GHz, <-134dBm/<-153dBm 1GHz~3GHz, <-130dBm/<-148dBm
phase noise		-90dBc/Hz (offset: 30kHz) -100dBc/Hz (offset: 10kHz) -115dBc/Hz (offset: 1MHz)
Sweep time range		3ms~ 3000s (span≠0) 1ms~ 3000s (span≠0)
Sweep mode		continuous, single
Frequency Counter Resolution		1Hz, 10Hz, 100Hz, 1kHz
Frequency meter accuracy		Frequency indication × frequency reference accuracy + frequency counter resolution
Amplitude accuracy		±1.5dB (input signal 0dBm~-50dBm)
amplitude	Displays the average noise level (Test range fc>=10MHz)	+20dBm (SA2018/SA2018D) +27dBm (SA2030/SA2030D)
	maximum. input level (average continuous power)	+23dBm (SA2018/SA2018D) +27dBm (SA2030/SA2030D)
	maximum. DC input voltage	50V
	P1dB	+7dB
Spurious and residual responses	IP3(>30MHz)	+13dB
	IP2	+30dB
	input spur	<-60dBm
	residual reaction
trace source (SA2018D/SA2030D)	Frequency Range	100kHz~1.8GHz (SA2018D) 100kHz~3.0GHz (SA2030D)
	Output Power	-30dBm~0dBm, 1dB step
	Output flatness	±3dB
input Output	RF input	N female, 50Ω
	USB	USB2.0 (H), USB2.0 (D)
	local area network	10/100 Base-T, RJ-45
	RS232	9-pin, D-SUB female
	Time base input/output	10MHz, BNC female, input power 0dBm~10dBm, output power 0dBm±2dB
	VGA	800×460, 60Hz, 15 pins, D-SUB female
	trigger input	BNC female, 5V TTL level (maximum ±10V, 100mA)
	AM/FM demodulation	3.5 jack female
display		8'' TFT-LCD
energy source		100V~240V, 40Hz~60Hz, 20W
Dimensions (W×H×D)		335×162×116mm
weight		4 kg
