describe





Code: 835617

Weight: 9.000 kg

Voltage: 220/110 Volts





A brief review of RIGOL DSA815 and TG. Compact, lightweight and economical spectrum analyzer with frequency range from 9 kHz to 1.5 GHz. A 1.5 GHz tracking generator is included in the package.

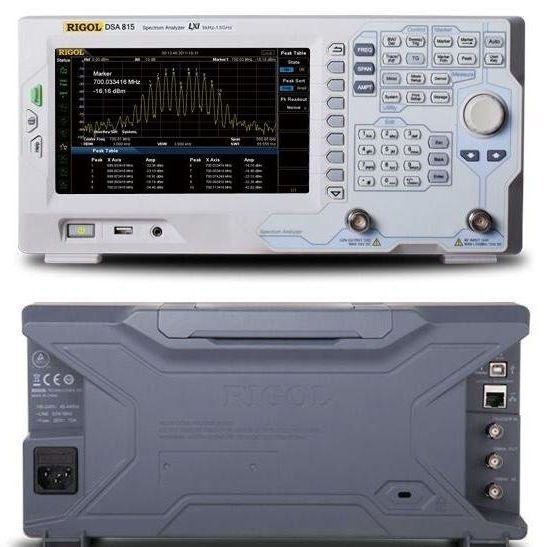

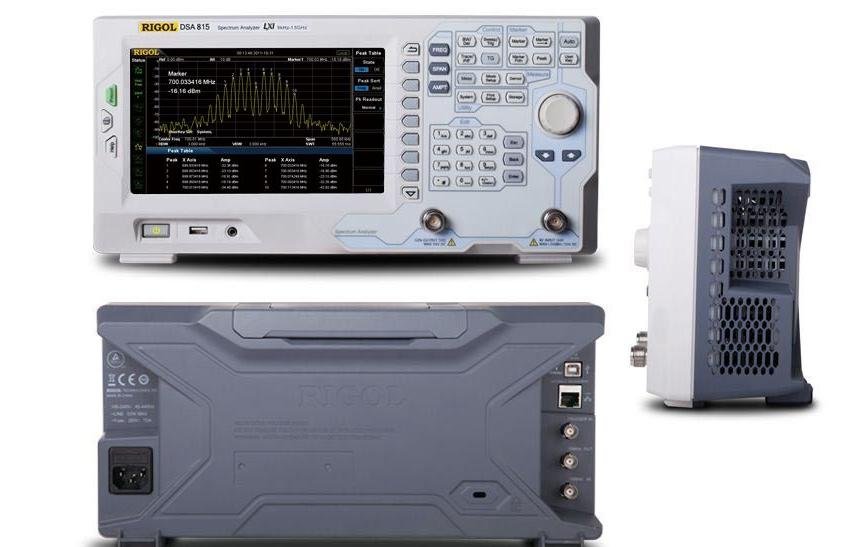

RIGOL DSA815 digital spectrum analyzer is one of the DSA800 series spectrum analyzers, which is small in size, light in weight and high in cost performance. RIGOL DSA815 is equipped with an easy-to-operate numeric keypad, a high-resolution color LCD display and a variety of remote communication interfaces. RIGOL DSA800 series spectrum analyzer, especially the DSA815 model can be widely used in various fields such as education, enterprise research and development, and industrial manufacturing.



A 1.5 GHz tracking generator is included in the package.



Features of RIGOL DSA815 Spectrum Analyzer

9 kHz to 1.5 GHz frequency range



· Typical -135 dBm Displayed Average Noise Level (DANL)



· Total amplitude uncertainty < 1.5 dB

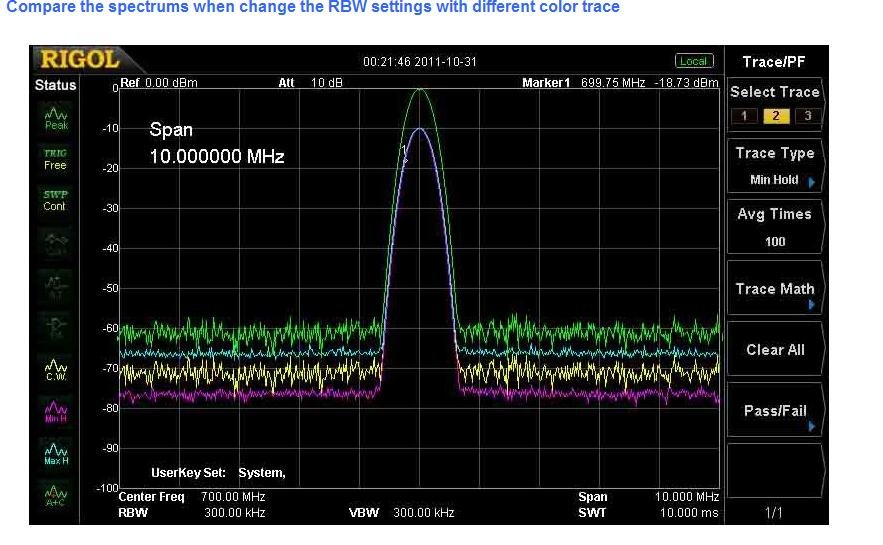

100 Hz minimum resolution bandwidth (RBW)

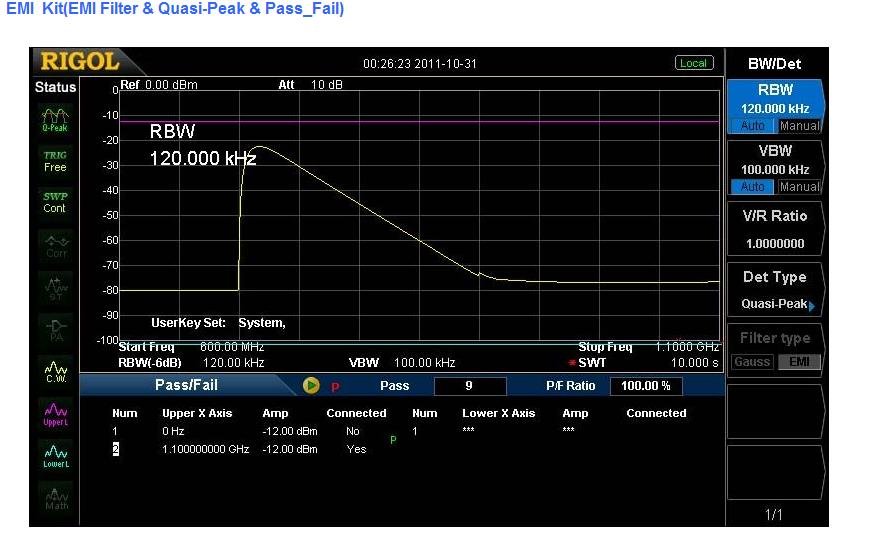

· EMI filter and quasi-peak detector kit (optional)

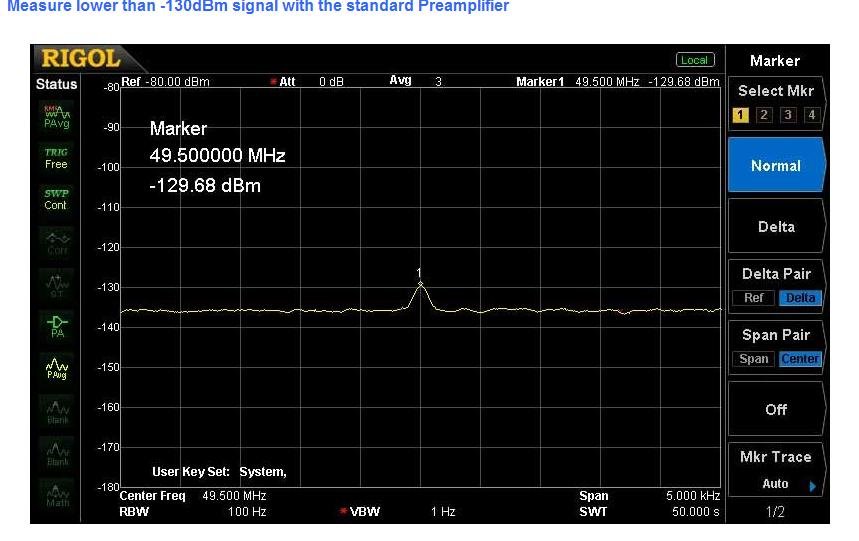

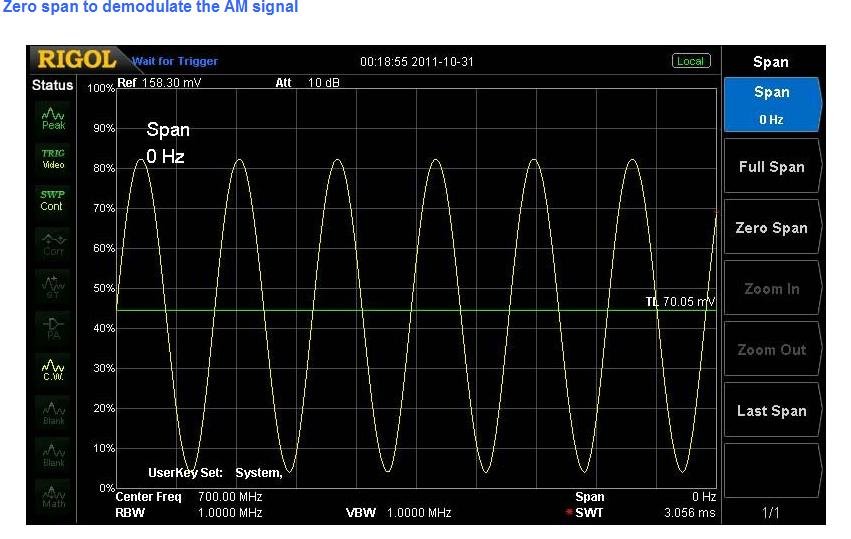

· Preamplifier and AM/FM demodulation function



· 1.5 GHz tracking generator (included)



· 8-inch high-definition (800×480 pixels) LCD screen



· Interfaces: LAN, USB host, USB device and GPIB (optional)



· Small size and light weight



RIGOL DSA815 Spectrum Analyzer Specifications

frequency
