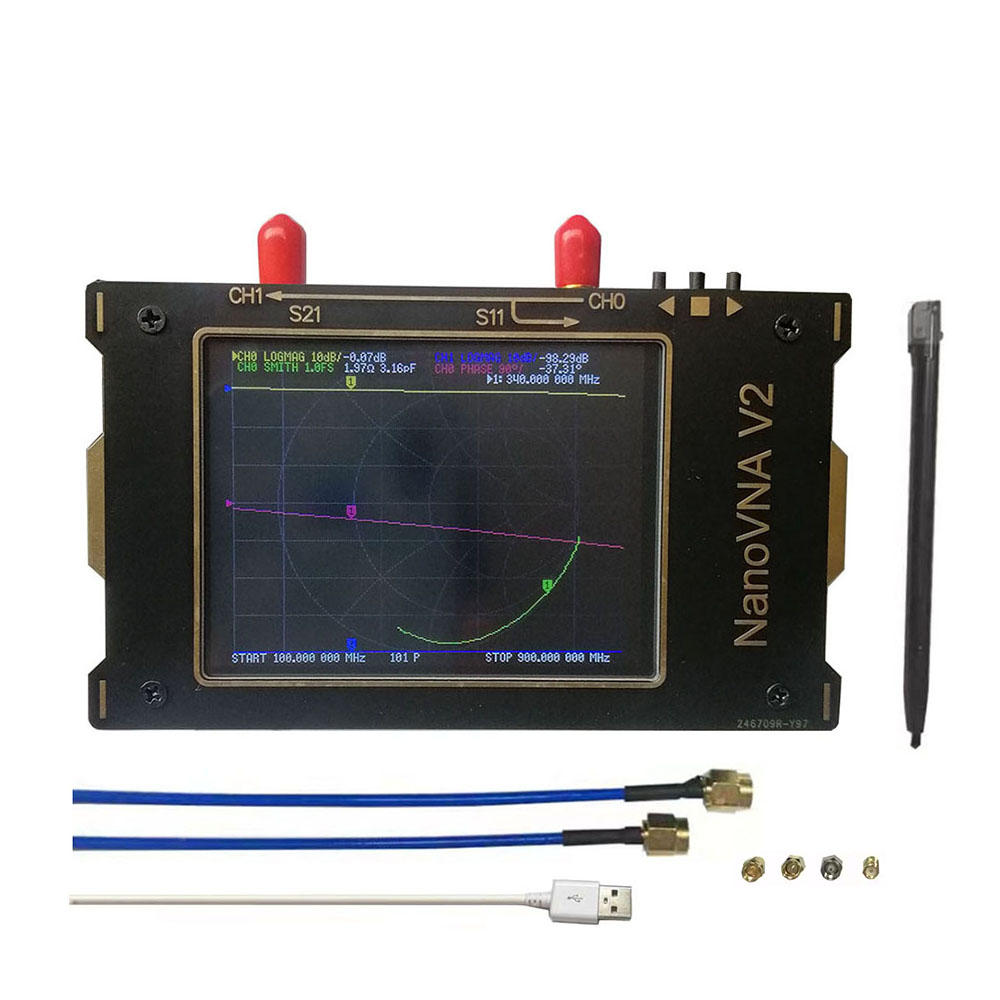

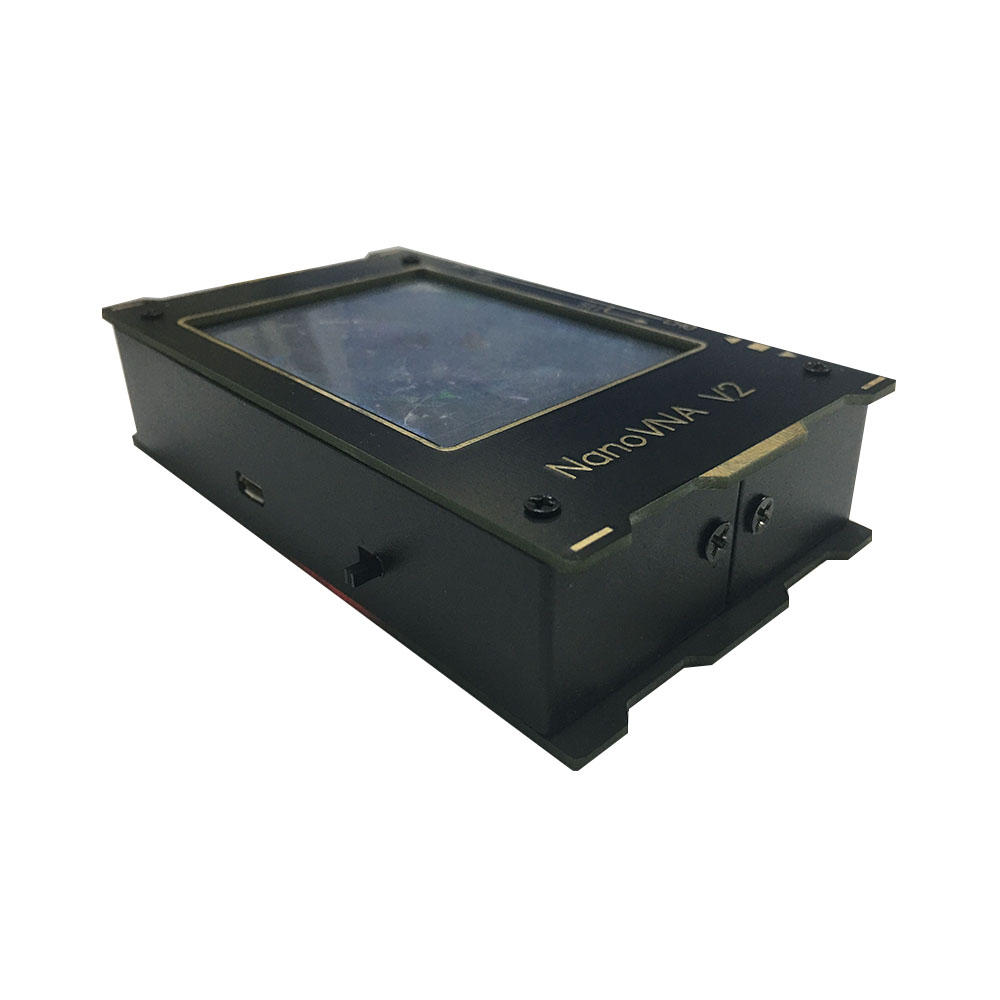

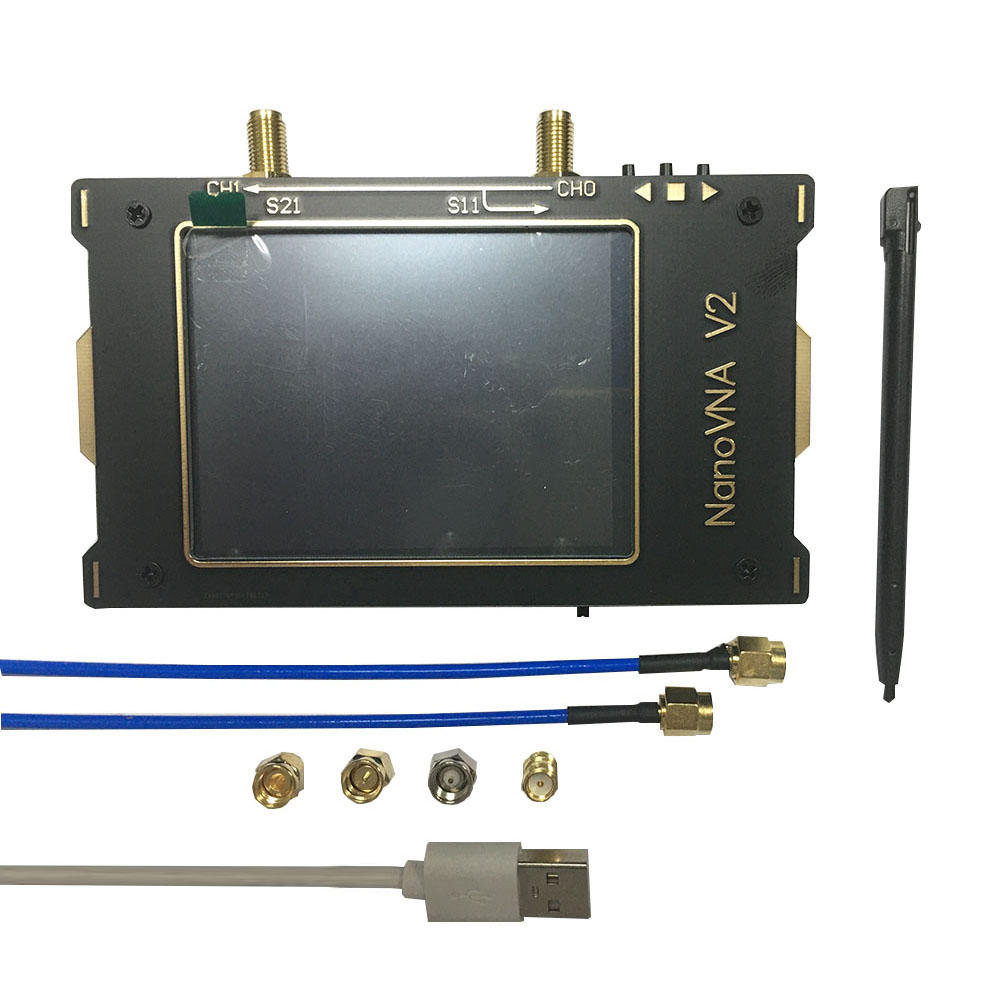

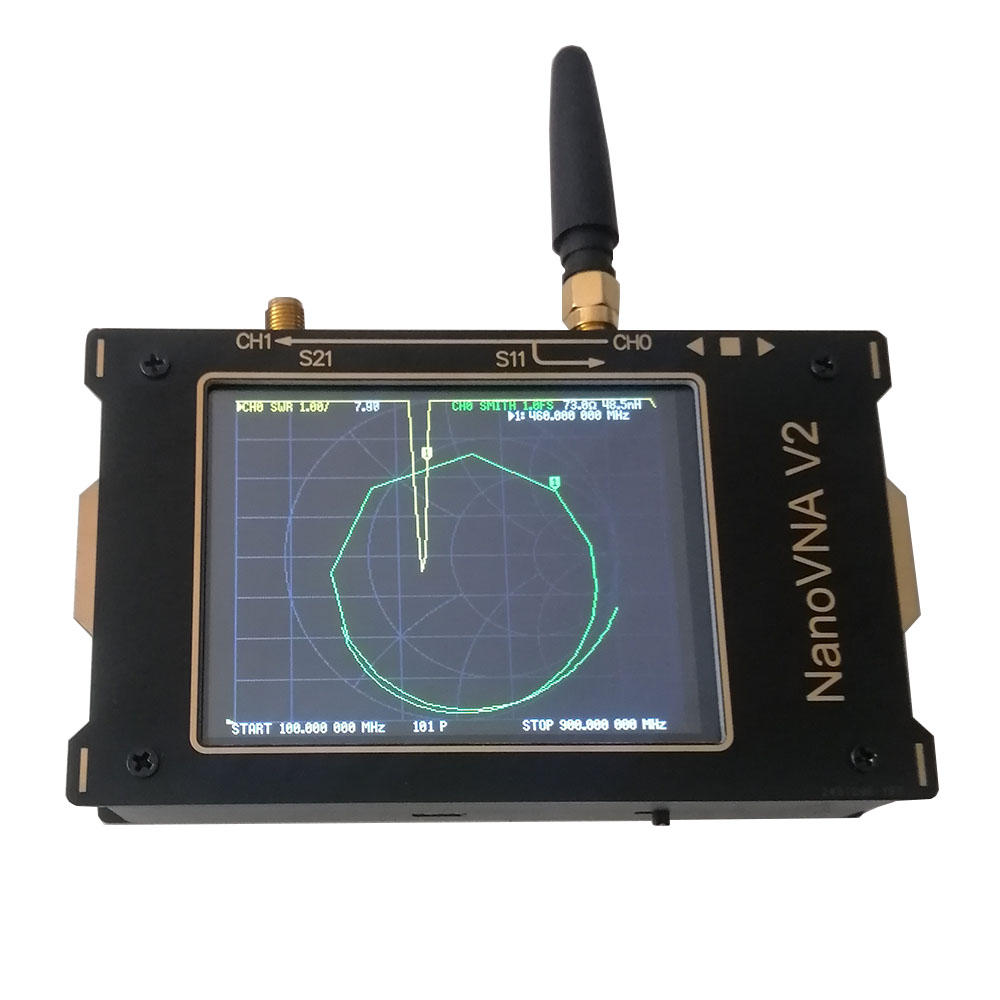

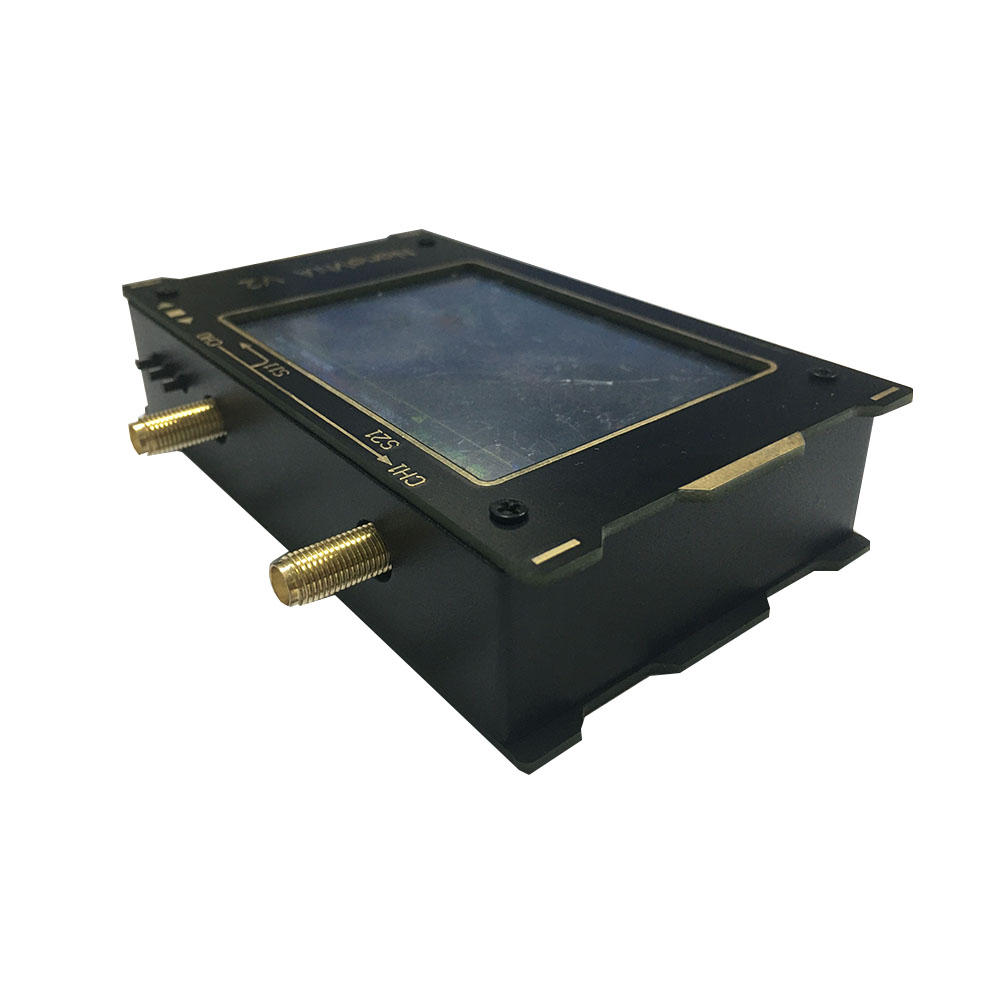

3G SAA-2 NanoVNA V2 Vector Network Analyzer Digital Tester Nano VNA MF HF VHF UHF Standing Wave Logic Antenna
- 129.99 1 - 19 pieces
- 119.99 20 - 999 pieces
- 109.99 >=1000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Warranty: | 1 year | power supply: | USB, maximum charging current 1A |
| Port 2 Return Loss (3GHz): | 13 dB minimum | Origin: | HEB |
| brand: | - | Customization support: | Processing |
| Supply capacity: | 50000 pieces per year | Packaging Details: | Neutral packing, standard packing, customized packing, we can pack according to customer's requirements |
| S11 background noise: | -50dB (up to 1.5GHz), -40dB (up to 3GHz) | Frequency Range: | 50KHz-3GHz |
| System dynamic range: | 70dB (up to 1.5GHz), 60dB (up to 3GHz) | Package preview: | |
| USB interface: | Micro USB | port: | Shenzhen |
| Port 2 Return Loss (1.5GHz): | 20dB typical | type: | / |
| Scan speed: | 100 points/second | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Maximum scan point: | 201 | exhibit: | 2.8 inches, 320 x 240 |
| model: | AYSPPY-004 |
Product Description
Specification
thing | value |
Warranty | 1 year |
type | / |
Custom support | Processing |
birthplace | HEB |
brand | - |
model | AYSPPY-004 |
Frequency Range | 50KHz-3GHz |
System dynamic range | 70dB (up to 1.5GHz), 60dB (up to 3GHz) |
S11 background noise | -50dB (up to 1.5GHz), -40dB (up to 3GHz) |
scanning speed | 100 points/second |
exhibit | 2.8 inches, 320 x 240 |
USB interface | Micro USB |
power supply | USB, maximum charging current 1A |
maximum scan point | 201 |
Port 2 Return Loss (3GHz) | 13 dB minimum |
Port 2 Return Loss (1.5GHz) | 20dB typical |
