USB Interface HSA2016A Handheld Digital Spectrum Analyzer with HLX Field Force Meter Portable Spectrum Monitor
-
Supplier: Shenzhen Hualixin Electronic Technology Co., Ltd. -
Region: Guangdong, China -
Contact: Mr Allen Ma -
Price: $406.20 / 1 - 9 pieces
$372.30 / 10 - 99 pieces
$355.40 / >=100 pieces -
Min. Order: 1 piece
| Reference frequency: | 10MHz | Number of traces: | 4 |
| port: | Shenzhen | Counter resolution: | 1 Hz |
| Frequency Range: | 9KHz~1.6GHz AC coupling | Number of markers: | 4 |
| brand: | Hantec | Pay: | TT |
| model: | HSA2016A | Sweep (trace) point: | 461 |
| Frequency Resolution: | 1 Hz | Origin: | Guangdong, China |
| Resolution filter form factor: | <5:1 nominal | MOQ: | 1 |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |

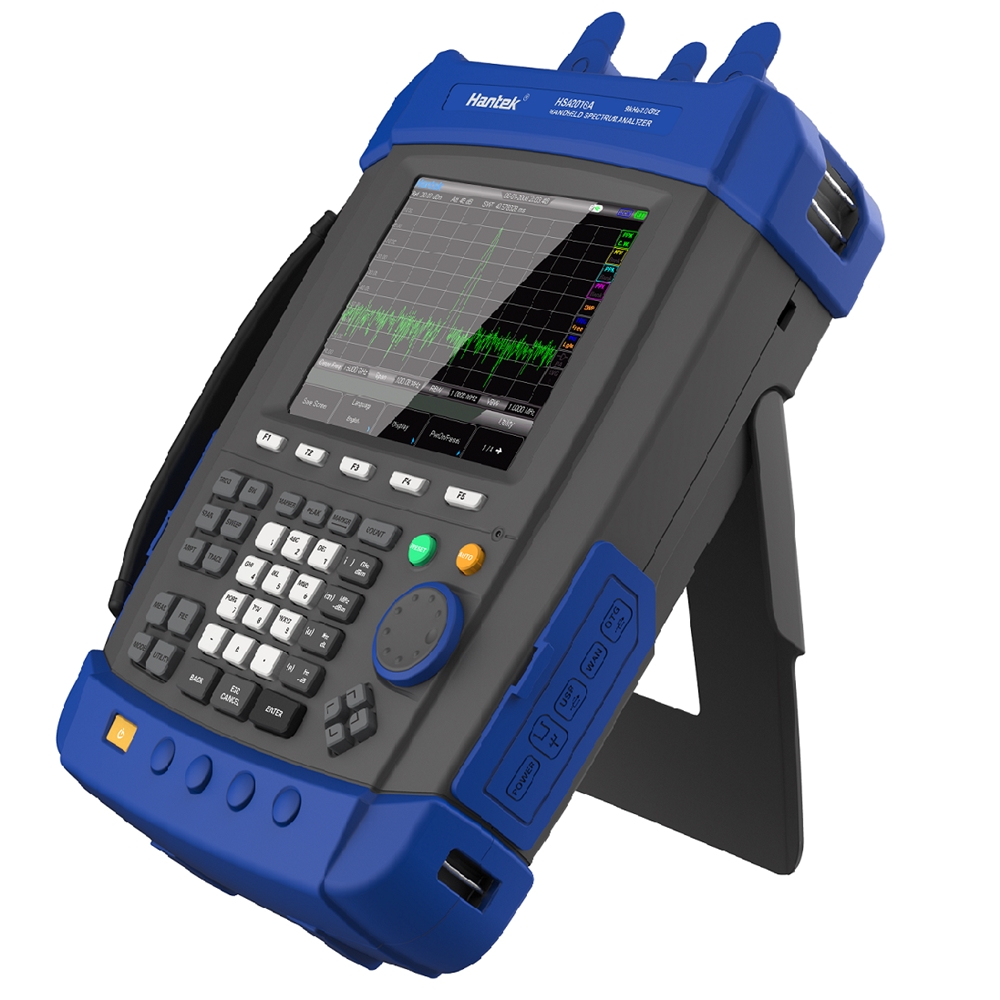

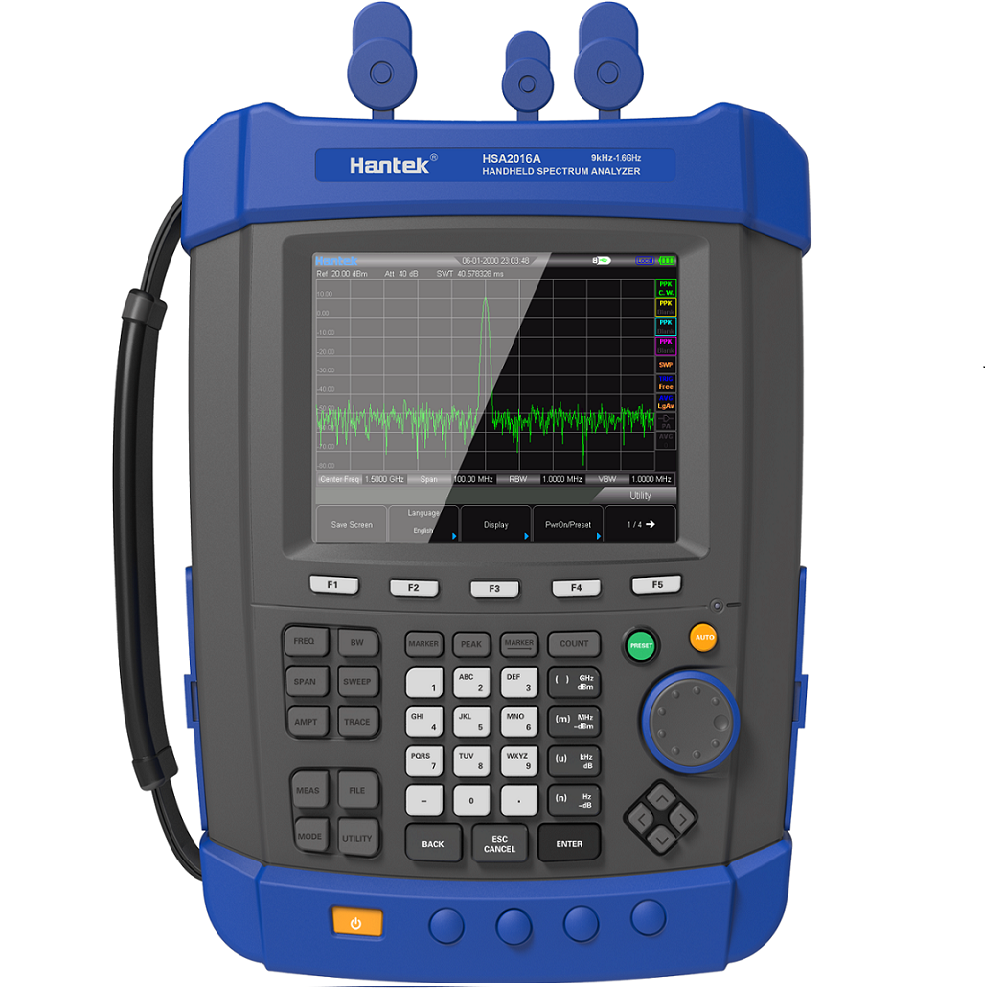

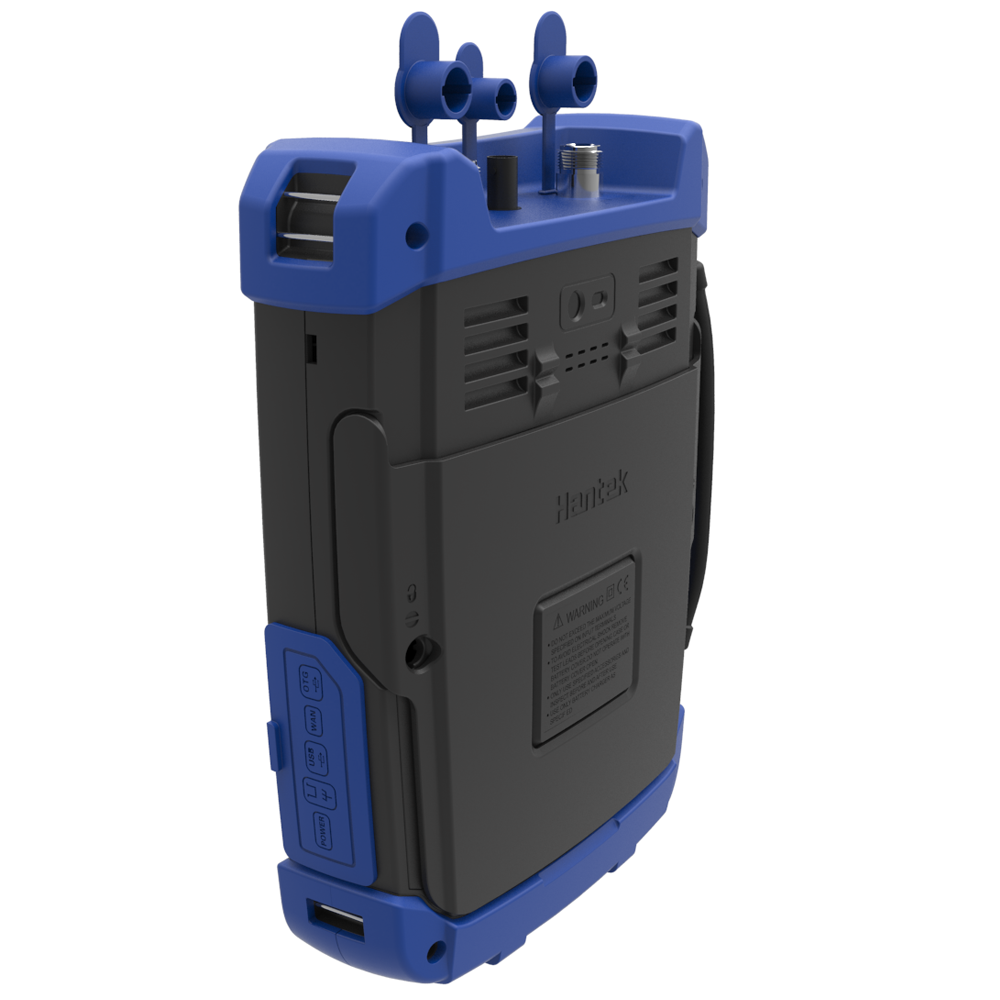

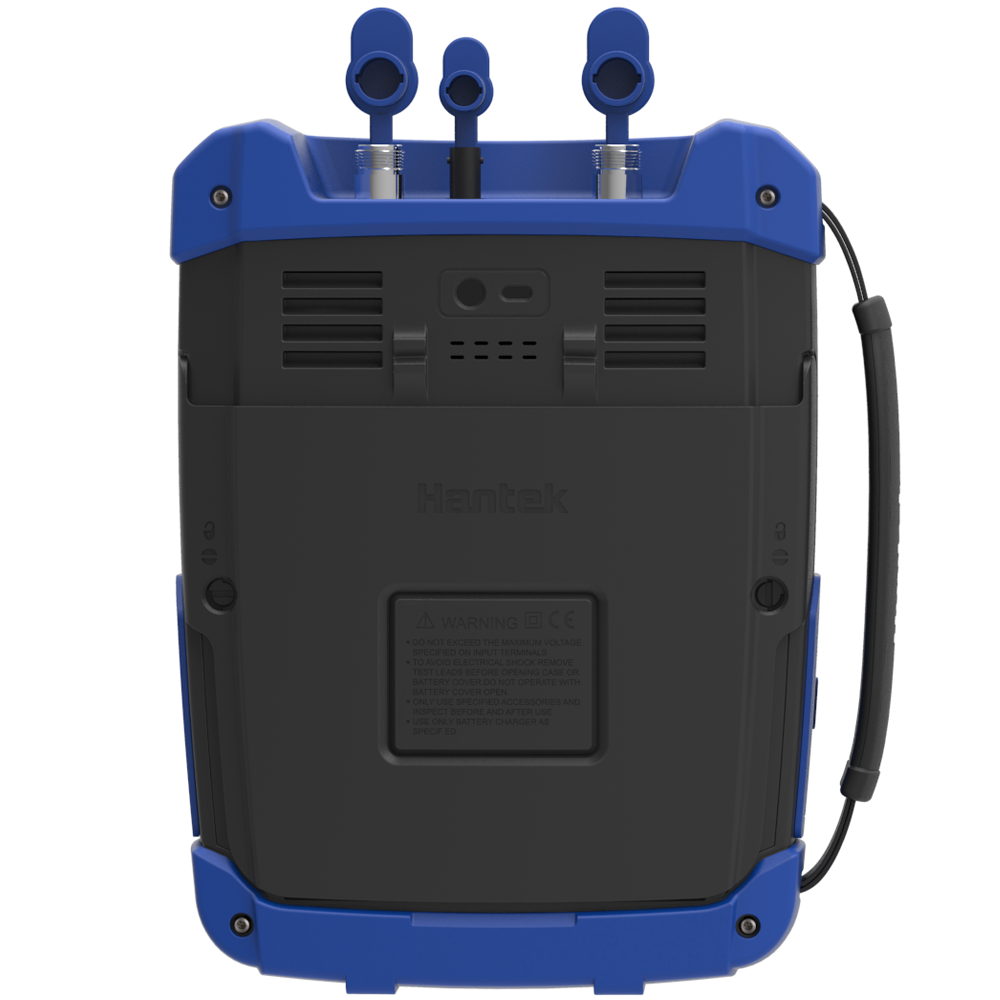

HSA2016A USB interface handheld digital spectrum analyzer with portable field strength meter spectrum monitor
HSA2016 series
Frequency range: 9KHz~1.6GHz; best sensitivity: -161dBm; RBW: 10Hz to 1MHz. High-protection portable design, sturdy and durable, can be used in the laboratory, more suitable for field mobile use, built-in large-capacity lithium battery, can work longer than 4 hours. 18650 rechargeable battery. USB/LAN communication for remote control. 5.6-inch bright color display, 640*480 resolution, clear waveform display.
Frequency range: 9KHz-1.6GHz (adjustable to 9KHz) AC coupling
Best Sensitivity: -161dBm RBW: 10Hz to 1MHz
· IP-51 high protection portable design, sturdy and durable, can be used in the laboratory, more suitable for mobile use in the field.
·Built-in large-capacity lithium battery, can work continuously for more than 4 hours. 18650 rechargeable battery.
· 5.6-inch bright color display, 640*480 resolution, clear waveform display.
· HSA2000 series spectrum analyzer has the lowest DANL and SSB phase noise, and the narrowest RBW. Greatly improved the ability to identify stray signals and noise signals.
· Optional FM/AM modulation analysis including carrier power, modulation rate, AM depth/FM deviation, SINAD and carrier frequency offset.
· Standard spectrum functions. It can analyze the time stability of the signal and accurately find the blank signal in the communication system.
· Powerful field strength test function, suitable for testing the transmitter, base station, antenna coverage site. It can display field strength or power density. Users can also use the amplitude offset function to calibrate gain or loss.
· The HAS2000 series has the smallest RBW among analyzers of the same level, and can easily confirm, distinguish and measure two similar signals.
· 5.7-inch high-brightness color display screen, accurate, bright and clear internal and external tracks, no need to move to a shading place to work.
· Short scanning time. It can quickly capture data to help locate and identify irregular transient interference signals, thereby optimizing test time and accuracy.
· Adopt advanced built-in battery management system. It is equipped with 7800mAh large-capacity lithium battery as standard, and supports 6 sets of 18650 battery packs, which can keep on-site measurement work for more than 4 hours.
· Sturdy and precise mechanical structure, tight rubber cover, suitable for harsh on-site working environment.

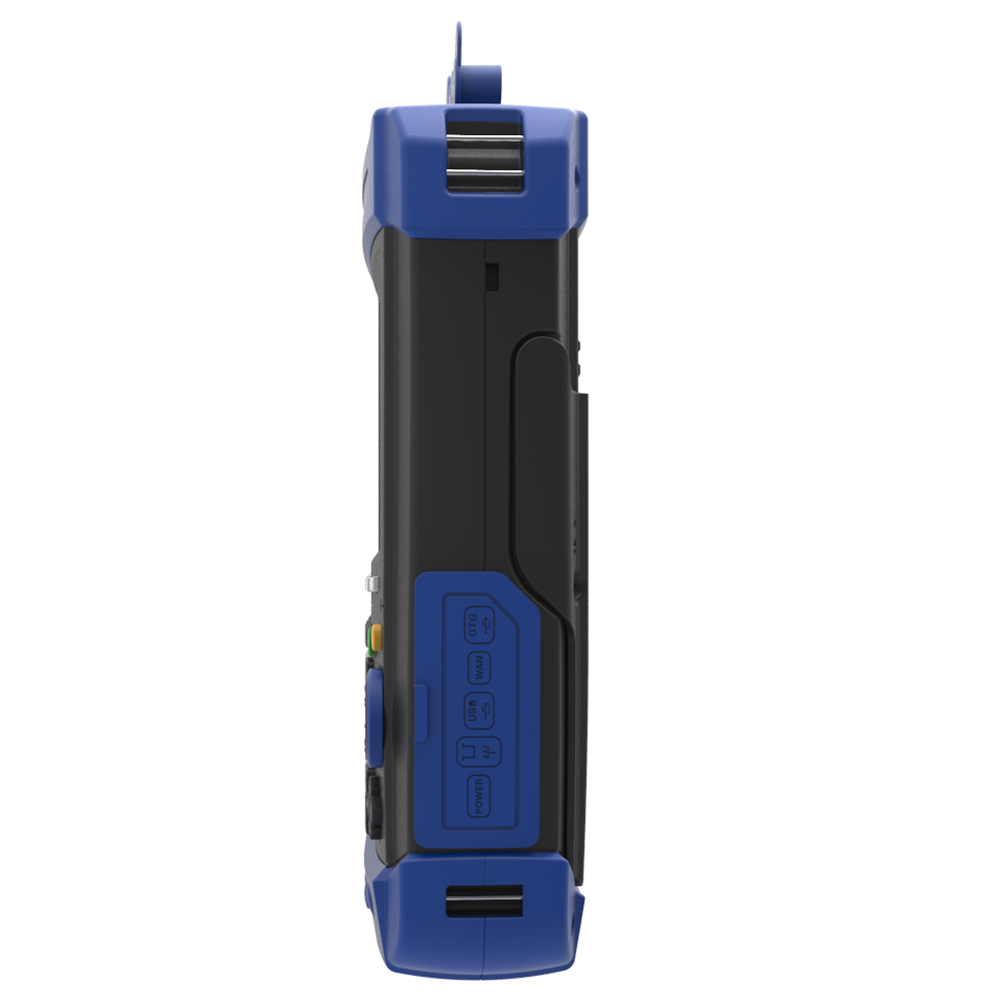

· Integrated USB Host & Device, support U disk storage, optional WIFI/LAN, convenient for networking and remote control.
· The upper computer software can realize the management and storage of detection data.
· HSA2000 series field measurement application.
parameter
parameter | |||
Model | HSA2016A | HSA2016B | |
frequency | |||
Frequency Range | 9KHz~1.6GHz AC coupling | 9KHz~1.6GHz AC coupling 5M~1.6GHz TG | |
frequency resolution | 1 Hz | ||
reference frequency | 10MHz | ||
Frequency Reading Accuracy | ±(frequency indication*frequency reference uncertainty+1%*span+20%RBW+cursor resolution+1Hz) | ||
Internal 10MHz reference accuracy | aging rate | ±1ppm/year (0℃~50℃, reference is 25℃) | |
temperature stability | ±1ppm/year | ||
Mark resolution | (frequency span)/(sweep points-1) | ||
Resolution Bandwidth (RBW) | |||
-3dB bandwidth | 10Hz to 1MHz, 1-3-10 sequence | ||
accuracy | ±5% RBW=10Hz~1MHz nominal | ||
Resolution Filter Shape Factor | <5:1 nominal | ||
Video Bandwidth (VBW) | -3dB bandwidth | 1Hz to 1MHz, 1-3-10 sequence | |
accuracy | ±10% VBM=1Hz~1MHz nominal | ||
Displayed average noise level (normalized to 1Hz) | |||
9K~1MHz | preamp off | -108dBm, typical value -127dBm | |
1MHz ~10MHz | -128dBm, typical value -146dBm | ||
10MHz ~500MHz | -142dBm, typical value -146dBm | ||
500MHz ~2.5GHz | -141dBm, typical value -145dBm | ||
2.5GHz ~3GHz | -140dBm, typical -144dBm | ||
9K~1MHz | Preamplifier | -131dBm, typical -150dBm | |
1MHz ~10MHz | -148dBm, typical value -163dBm | ||
10MHz ~500MHz | -161dBm, typical value -164dBm | ||
500MHz ~2.5GHz | -159dBm, typical value -162dBm | ||
2.5GHz ~3GHz | -158dBm, typical value -161dBm | ||
SSB Phase Noise | |||
Carrier offset (20℃~ 30℃,500MHz Center frequency) | 10K | < -92 dBc/Hz, typical -95 dBc/Hz | |
30K | < -93 dBc/Hz, typical -96 dBc/Hz | ||
100K | < -95 dBc/Hz, typical -97 dBc/Hz | ||
1MHz | < -117 dBc/Hz, typical -119 dBc/Hz | ||
Scan time | |||
scope | Span>100Hz | 2 milliseconds to 1000 seconds | |
Span=0Hz | 600ns to 200s | ||
scan mode | continuous, single | ||
trigger source | free run; video; external | ||
trigger slope | Selectable rising or falling edge | ||
trigger delay | Span=0Hz | ±12ms to ±12s nominal | |
frequency counter | |||
counter resolution | 1 Hz | ||
accuracy | ±(marker frequency × frequency reference uncertainty + counter resolution) | ||
Level display range | |||
Log scale and units | 1 to 10 dB/div in steps of 1, 2, 5, 10 dB, displaying 10 divisions | ||
Linear scale and units | 0 to 100%, 10 grid display | ||
proportional unit | dBm, dBmV, dBuV, Watts, Volts | ||
Sweep (trace) point | 461 | ||
number of marks | 4 | ||
detector | Normal, Pos Peak, Damping, Neg Peak, RMS | ||
Number of traces | 4 | ||
tracking function | Clear/Write, Max Hold, Min Hold, Average, Check, Off | ||
level measurement error | ±1.5dB (excluding input VSWR mismatch) 20~30℃, peak detector, preamplifier off, input signal -50dBm to 0dBm | ||
reference level | |||
Predetermined area | -100dBm to +30dBm, step 1dB | ||
set resolution | logarithmic scale | 0.01dB | |
linear scale | Almost Logarithmic (2.236µV to 7.07V) | ||
amplitude | |||
Maximum Safe Input Level | Average continuous power | +33dBm | |
DC input voltage | 50Vdc | ||
Measuring range | 9KHz~2MHz | Displayed Average Noise Level (DANL) to +10dB | |
2MHz~3GHz | Displayed Average Noise Level (DANL) to +20dB | ||
Input attenuator range | 0 to 51dB in 1dB steps | ||
spurious response | |||
Second Harmonic Distortion (SHI) | <65dBc, 50MHz to 3GHz (mixing level -30dBm, attenuator=0dB, preamplifier off, 20℃~30℃) | ||
third order Intermodulation (TOI) | 50~300MHz | +8dBm, third-order intermodulation products: 2 x -20dBm; frequency division 100KHz: attenuation = 0dB; preamplifier off, 20℃~30℃ | |
300MHz~1.6GHz | +10dBm | ||
Input related spurs | <-75dBc, (input mixer = -30dBm) | ||
intrinsic residual reaction | <-90dBm, -98dBm typical (input terminated and 0 dB RF attenuation, preamp off) | ||
RF input VSWR (at tuning frequency) | 10MHz to 1.6GHz | <1.5:1, nominal attenuator setting 10~20dB | |
10MHz reference/external trigger input | |||
Reference input frequency | 10MHz | ||
Reference input amplitude | 0~10dBm | ||
trigger voltage | 5V TTL level | ||
Connector and Output Impedance | N female; (50Ω) | ||
general characteristics | |||
interface language | English, Chinese, Traditional Chinese | ||
show index | 5.7 inches, 640*480 resolution, 64M color LCD display | ||
temperature range | Serving | -10°C to +50°C, (Battery: 0°C to 50°C) | |
storage | -40°C to +70°C, (Battery: -20°C to 50°C) | ||
Relative humidity | <95% | ||
weight | 2.9kg (with battery), 2.6kg (without battery) | ||
size | 260m X 220m X 75m | ||
strength | Input voltage range | DC: 12-17V, maximum 2.8A input 220VAC±15% | |
AC frequency range | 40Hz to 60Hz | ||
energy consumption | Maximum 32W | ||
