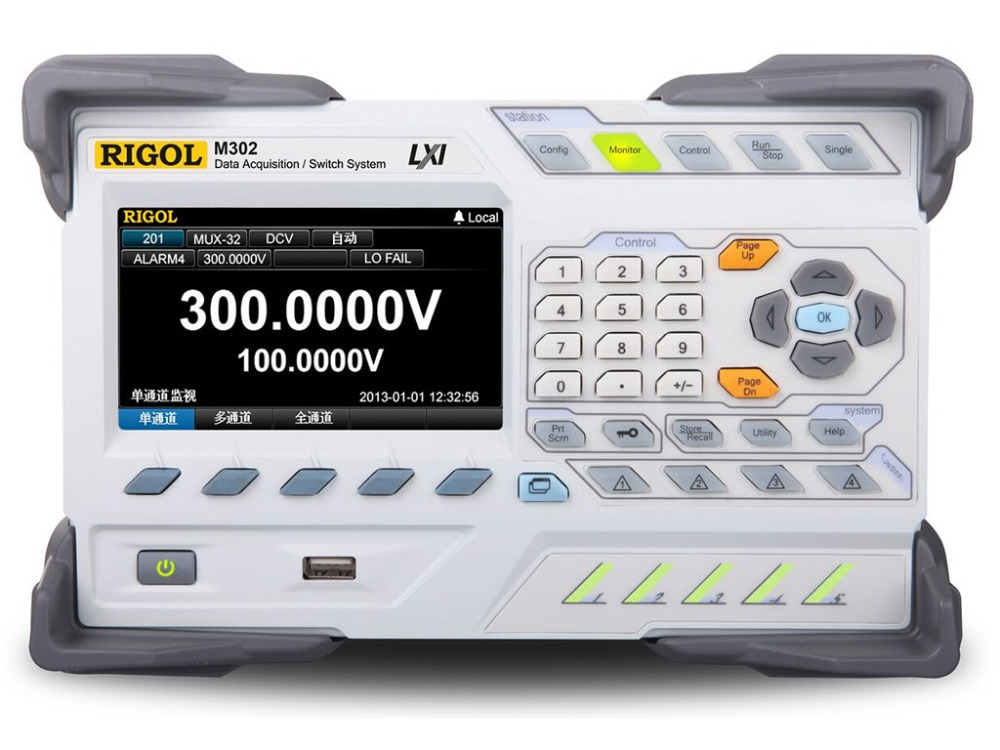

Rigol M302 Data Acquisition/Switching System + Digital Multimeter Module

Click here to contact

Product details

Digital multimeters include:	6 1/2	maximum. Scanning speed:	250 channels/sec
Supply capacity:	100 pieces per week	Available Module Models:	8
place of origin; place of origin:	Guangdong, China	brand:	Regal
payment terms:	wire transfer	port:	Shenzhen, China
Packaging Details:	standard packaging	Number of slots:	5 (DMM and MUX20 use two of these slots)
maximum. Number of channels per host:	320-channel or 256-channel plus digital multimeter	model:	M302

Rigol M300 Data Acquisition Switch System
The M300 series data acquisition/switching system adopts a modular structure, which combines precision measurement capabilities and flexible signal connections, and can provide a general-purpose multi-point or multi-signal test application for product performance testing in the R&D stage and automated testing in the production process. solution process.

Data acquisition mainframe with DMM module, 20-channel MUX module and M3TB20 terminal block Up to 320 switch channels per mainframe
Integrated DMM scans up to 256 channels
Interval scan to store up to 100,000 time-stamped readings

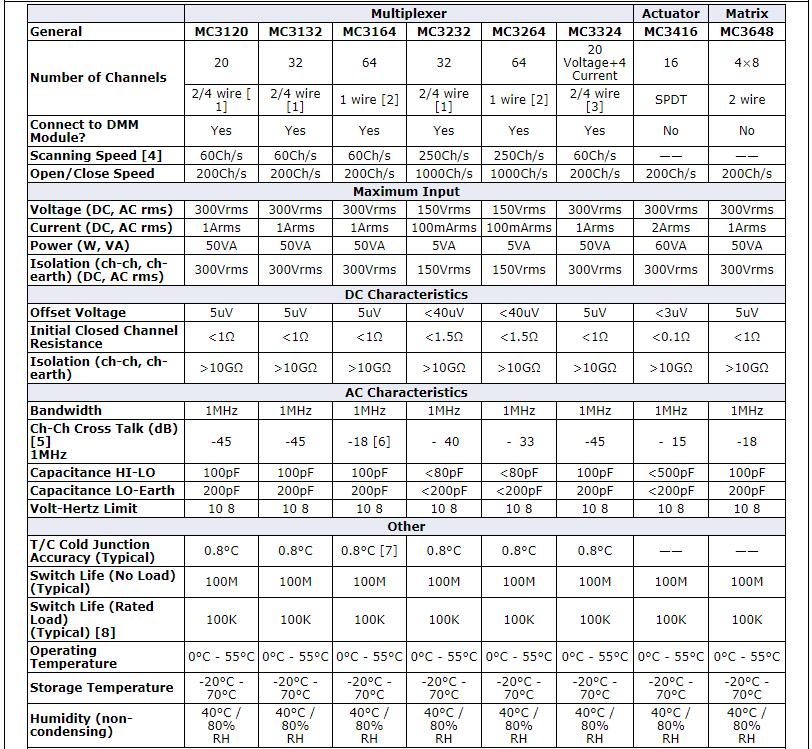

8 different modules available, including MC3065 6.5 DMM module and MC3120 MUX module (these modules are included in mainframe model M302)
Each module has a terminal block (M3TB20 terminal block is included in the mainframe model M302)

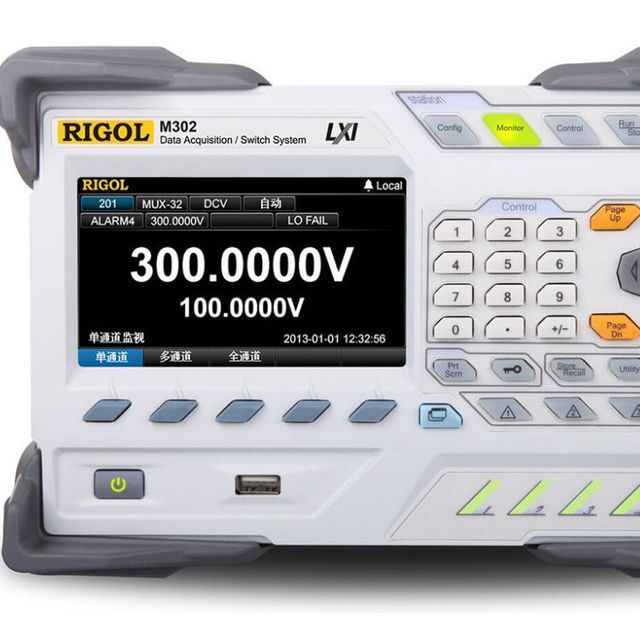

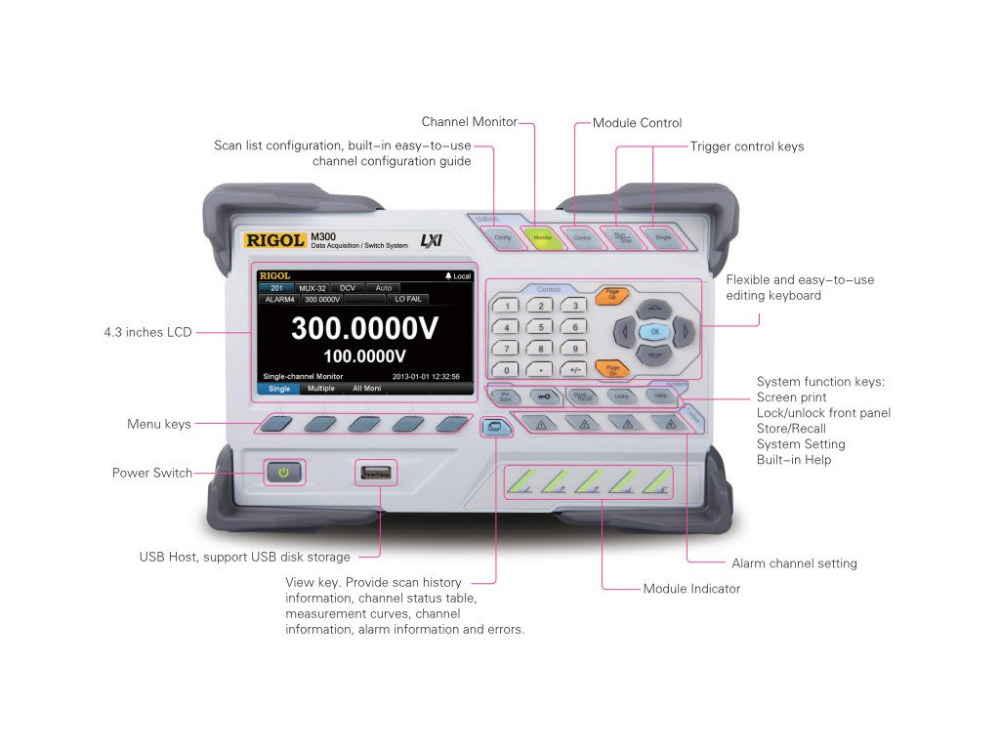

4.3" LCD display with intuitive GUI for front panel configuration without PC
UltraAcquire Data Acquisition PC Software for Advanced Users

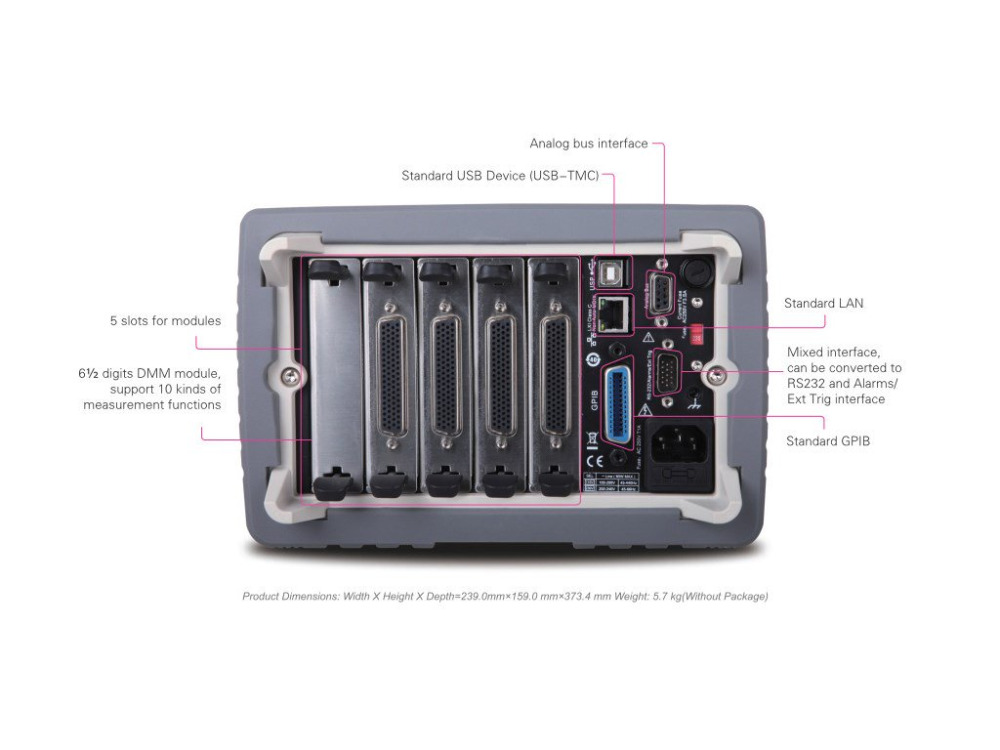

Connect via USB, GPIB, LAN (LXI-C) or RS-232
Automatic storage of configuration or recorded readings to USB memory stick
