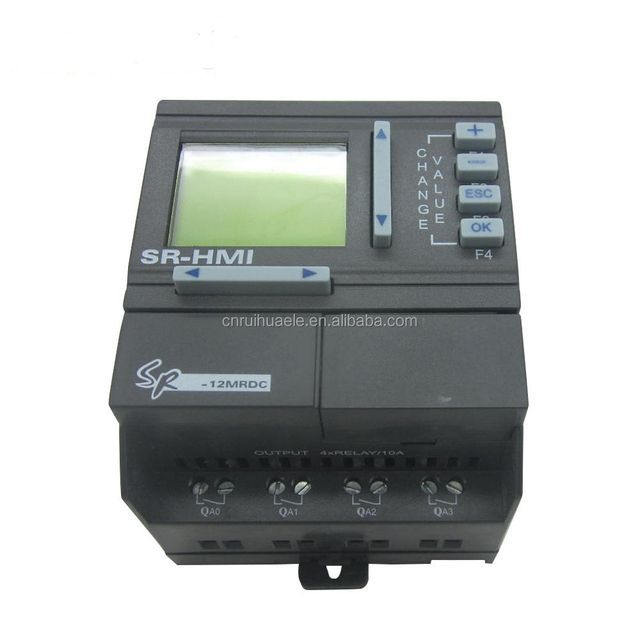

Wholesale SR-12MR 12VDc Cheapest Mini PLC
-
Supplier: Yueqing City Ruihua Cabinet & Whole Set Equipment Co., Ltd. -
Region: Zhejiang, China -
Contact: Ms Annie Xu -
Price: $30.00 /piece -
Min. Order: 1 piece
| payment terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Escrow | Packaging Details: | Cheapest plc 50pcs in a carton |
| Supply capacity: | 50,000 PLCs per year | model: | SR-12MRDC |
| brand: | Hua Ruihua | Origin: | Zhejiang, China |
| port: | Shanghai | Voltage: | 12-24v DC |
| Shipping Details: | Best and cheapest plc within five days after payment | The best and cheapest plc: | Relay output |
Wholesale SR-12MR 12VDc cheapest plc
8 points of AC input, 4 points of relay output
(with RTC) (6-point analog)
describe
SR intelligent controller is a new product of Super Mold programmable controller, which adopts FBD programming and is easy to learn. Used in conjunction with the voice module and remote control module, functions such as telephone remote control, wireless control, voice prompts, and automatic dialing can be realized. Used in conjunction with expansion modules, the number of input and output points can be expanded to meet your control needs.
The input terminal can receive both digital and analog values to control and transmit information such as temperature, humidity, pressure, flow, and liquid level. The wiring between machines and modules can be fixed bridges and flexible connections. The function is more perfect and the function is more powerful.
SR series intelligent controllers are widely used, such as mechanical automation equipment, fluid control, building automation and other fields. In this way, automation control can really enter every space of life, especially the automation control system and the intelligent field that needs time control system.
SR is really easy to handle. The appearance of the product is exquisite and small, and the highly integrated design makes your life more convenient and free, and you can enter a real super intelligent space.
. Product table
SR-12MR
| 12 point relay machine
| 8 points of AC input, 4 points of relay output (with RTC) (6-point analog)
|
2. SR intelligent controller is a programmable new product
power supply | |
strength | 12V-24V |
Input parameters: | |
input number | 8(A0-A5,B4-B5) |
digital input | 8(A0-A5,B4-B5) |
analog input | 6(A0-A5) |
power range | 0-24V(Digital)/ 0-10V(Analog) |
input signal 0 | 0-5V |
input signal 1 | 10-24V |
Output parameters: | |
output number | 4(QA0-QA3) |
output type | Transistor (PNP) output |
The output voltage | 0-24V |
Output current | 2A |
Ambient temperature: | |
operating temperature | -20c-70c |
storage/shipment | -40c-70c |
On-off level: | |
mechanism | 10 Hz |
resistance/light load | 2 Hz |
Sensitive load | 0.5 Hz |
Other parameters: | |
25°C clock buffer memory | 80 hours |
Real Time Clock Accuracy | Maximum ±5s/day |
Protect | IP20 |
online discharge | EN55011(B) |
Main frequency range | 47-63 Hz |
function block number | 128 |
Program memory capacity | 64K |
isolation strength | IEC1131 |
SR-12MR | 12-24V 8-point input (with 6-point analog), 4-point relay output |
SR-12MT | 12-24V 8-point input (with 6-point analog), 4-point transistor output (NPN) |
SR-12MG | 12-24V 8-point input (with 6-point analog), 4-point transistor output (PNP) |
SR-20 era | 100-240VAC 12-way AC input, 8-point relay output, 20-point expansion module |
SR-20ERD | 12-24V 12-point input, 8-point relay output, 20-point expansion module |
SR-20ETD | 12-24V 12-point input, 8-point transistor output, 20-point expansion module (NPN) |
SR-20EGD | 12-24V 12-point input, 8-point transistor output, 20-point expansion module (PNP) |
SR-22MRAC | 100-240VAC 14 points AC input, 8 points relay output |
SR-22MR | 12-24V 14-point input (with 8-point analog), 8-point relay output |
SR-22MT | 12-24V 14-point input (with 6-point analog), 8-point transistor output (NPN) |
SR-22MG | 12-24V 14-point input (with 6-point analog), 8-point transistor output (PNP) |
SP-24AL | Voltage: 24V Current: 3A |
SP-24AS | Voltage: 24V Current: 1.5A |
SR-AUD | Wires between recording microphone and sound card and SR-VPA/SR-VPD |
SR-CP | Programmable cable for editing, simulating, monitoring from PC to Super Relay |
senior engineer | Long Connection Antennas for SR-RCA and SR-RCD |
SR-ECBA | AC type, remote connection machine and expansion module |
SR-ECBD | Type, remote connection machine and expansion module |
SR-EHC | SR-HMI connection kit, remotely connect SR machine and SR-HMI |
SR-Human Machine Interface | Monitor operation panel |
SR-RCA | 100-240VAC remote control receiver module |
SR-RCD | 12-24V remote control receiver module |
SR-TC | 3V remote control transmitter |
SR-USB | USB/RS232 converter (DIN mount) |
SR-DUSB | SR and PC USB port interface (front plug type) |
SR-VPA | 100-240VAC telephone voice module |
SR-VPD | 12-24V telephone voice module |
SR-WRT | programming panel |
SR-Modbus | 2 analog outputs, 0-20mA/4-20mA/±10V/1*5V optional |
....
-
