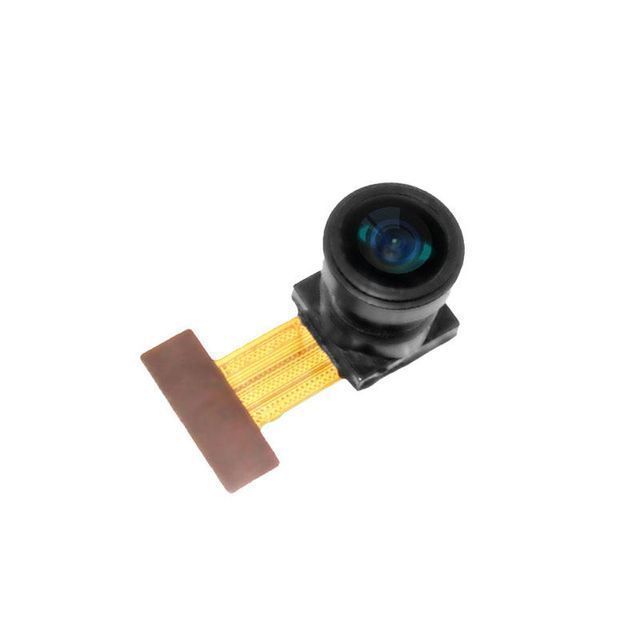

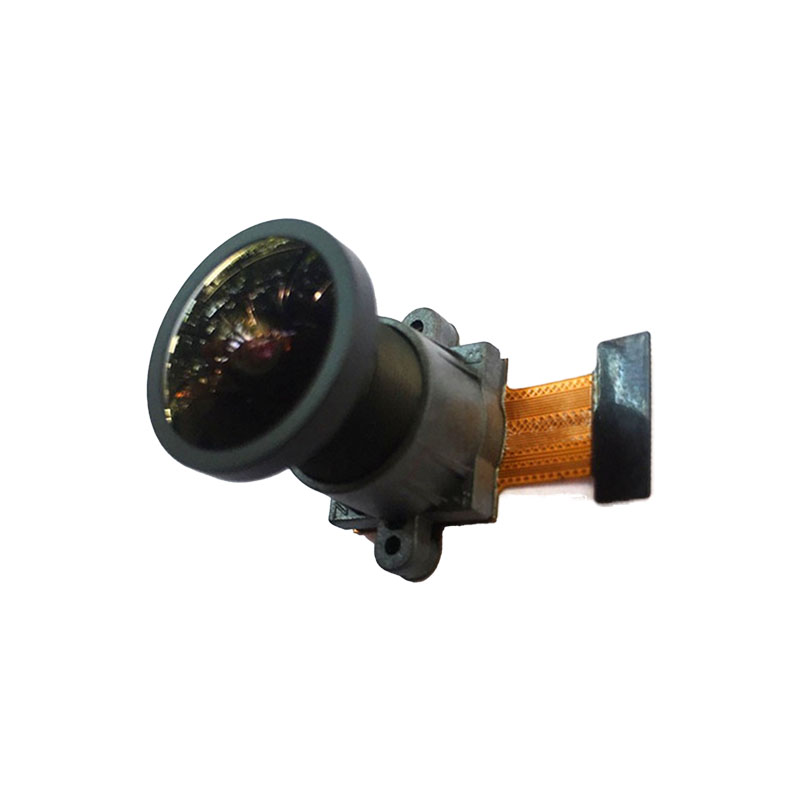

Support customized OV5640 camera module DVP/MIPI 5MP 24pin gold finger wide-angle HD mobile phone camera, doorbell

Supplier: Shenzhen Brilliant Cmos Technology Co., Ltd.
Region: Guangdong, China
Price: $23.00 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

FOV (diagonal):	120°157°198° (interchangeable lens)	aspect:	22.5mm15mm30mm
type:	MIPI camera	payment terms:	L/C, T/T
Focus type:	focus	Packaging Details:	boxed
Maximum dynamic range:	to be determined	Key words:	OV5640 MIPI/DVP camera module
model:	CBT-5MPFF-IR157	Supply capacity:	10000 pieces per week
place of origin; place of origin:	Guangdong, China	Interface Type:	DVP/MIPI
Resolution:	2592(horizontal) x 1944(vertical)	brand:	Spirit
sensor:	1/4''CMOS

Product Description

product name	OV5640 MIPI/DVP camera module
sensor	1/4' OV5640
resolution	2592×1944@15FPS

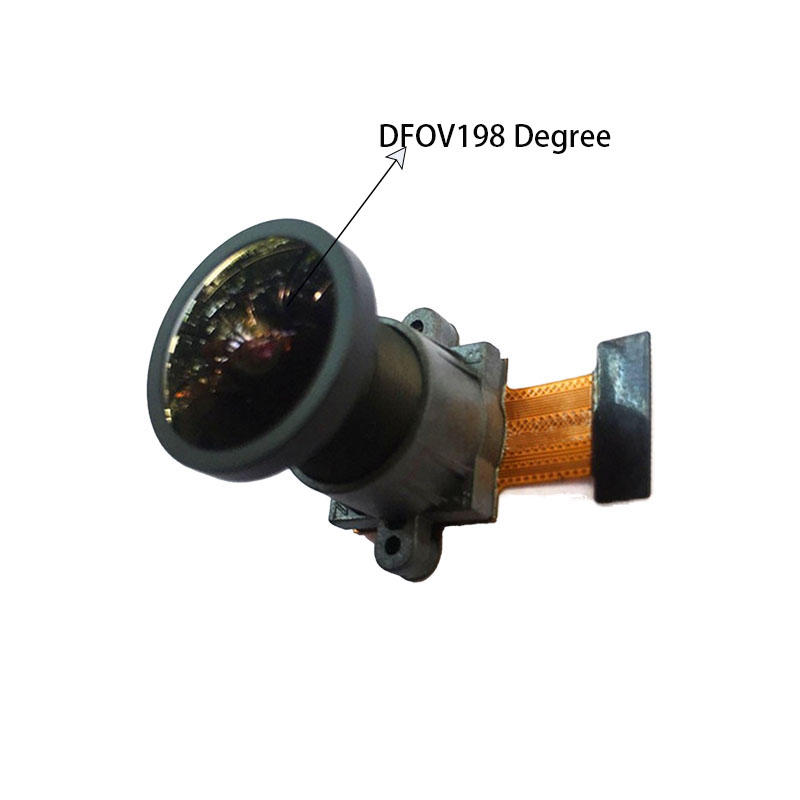

FOV (diagonal)	120°, 157°, 198° (optional lens)
focus type	focus
Compression format/Video stream format	MJPEG/YUV2 (YUYV)
shutter type	Electronic rolling door
Maximum dynamic range	to be determined
SNR	to be determined
infrared cutting	Yes
night vision	Yes
object distance	10CM (optional)
aspect	22.5mm15mm30mm

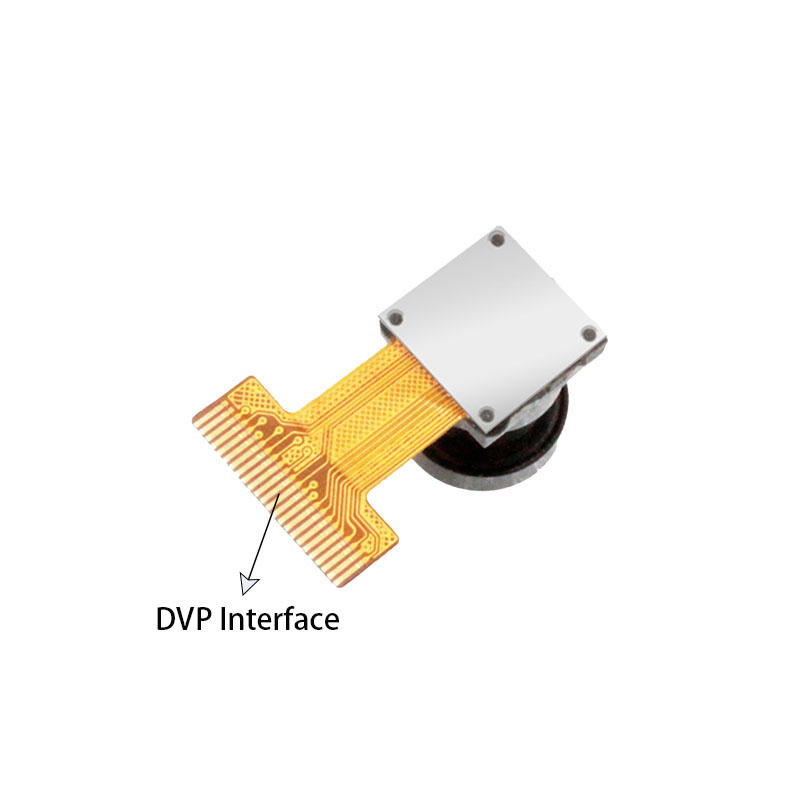

interface	MIPI/DVP interface

Main features:

1.OV5640 DVP/,IPICamera module. 2. The most effective pixel size is 2593(H) x 1944(V)@15FPS (MJPEG). 3. Fixed focus, DVP/MIPI interface.

4. Support lens90°,120°, 157°, 198°

VIEW MORE
