MCP DQ2000Y - Digital Super Phosphor Oscilloscope 4 Channel Oscilloscope Digital 100MHz

  • Supplier: Shanghai MCP Corp.
  • Region: Shanghai, China
  • Contact: Ms Doris Liu
  • Price: $700.00 / 2 - 9 pieces
    $520.00 / >=10 pieces
  • Min. Order: 2 pieces
Click here to contact
Product details
Customization support:OEM productionOrigin:China Shanghai
Supply capacity:500 pieces per monthbrand:main control board
Packaging Details:2 pieces per cartonport:Shanghai
type:2/4 channelWarranty:24 months
payment terms:L/C, Western Union, T/Tmodel:DQ2104Y

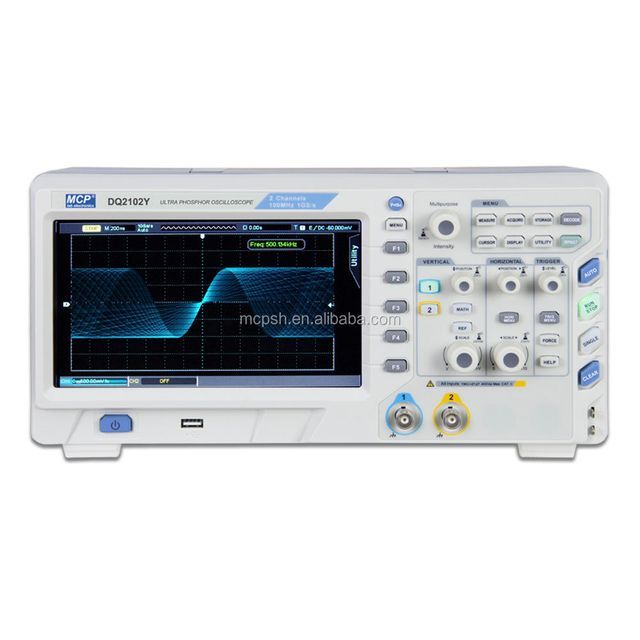

DQ2104Y - Digital Super Phosphor Oscilloscope 4 Channels 100MHz



feature
. 1GSa/s sampling rate
. 2 or 4 channel mode
. 8-inch wide rectangular color LCD with WVGA(800x480) resolution
. Waveform capture rate up to 50,000wfms/s
. Memory depth 28Mpts per channel
. 1mV/div~20V/div wide range
. 256-level intensity classification
. 65,000 frames for waveform recording and playback
. Support serial bus triggering and decoding
. Interface: USB Host, USB Device, LAN, AUX out



Technical data DQ2072Y DQ2074Y DQ2102Y DQ2104Y
exhibit
type 8" Rectangular Color LCD Display
backlight intensity 300 nits (cd/m2)
display resolution 800 horizontal x 480 vertical pixels
display contrast adjustable
vertical system
channel 2 4 2 4
Sensitivity and Accuracy 1mV/div~20V/div
vertical resolution 8 bits
Bandwidth (-3dB) 70MHz 70MHz 100MHz 100MHz
Rise Time ≤5ns ≤5ns ≤3.5ns ≤3.5ns
single bandwidth 70MHz 70MHz 100MHz 100MHz
input coupling DC, Ground, AC
DC Gain Accuracy ±3%
horizontal system
SEC/DIV range 5ns~50s/div 5ns~50s/div 2ns~50s/div 2ns~50s/div
Sample rate range 250MSa/s(4CH), 500MSa/s(2CH), 1GSa/s(1CH)
Waveform capture rate 50,000 waveforms/sec
Waveform interpolation (Sinks)/x
memory depth Auto, 28kpts, 280kpts, 2.8Mpts, 28Mpts per channel
Sample Rate and Latency Accuracy ±50ppm in any time interval ≥1ms
Delta Time Measurement Accuracy Single ±(1 sampling interval+50ppm×rdg+0.6ns)
Average ±(1 sampling interval+50ppm×rdg+0.4ns)
trigger system

model

 Auto, Normal, Single
type Edge, Alternate, Runt, Timeout, Nth Edge, Delay, Duration, Set/Hold, Pulse Width, Slope, Video, Mode, RS232/UART, I2C, SPI
Bus decoding (optional) RS232/UART,I2C,SPI
Postponement range 100ns ~ 10s
math +, -, ×, ÷, FFT, logic operations, editable advanced operations
get input
collection method Sampling, peak detect, high resolution, envelope and averaging
input coupling DC, AC or Ground
input resistance 1MΩ±2%// 20pF±3pF
Probe attenuation 0.001×, 0.01×, 0.1×, 1× 10×, 100×, 1000×
input voltage 300V (DC+AC peak value, 1MΩ)
Channel Customer Relations Better than 40:1
time delay between channels 150ps
Measurement
cursor Voltage difference between cursors (Delta V)
Time difference between cursors (DeltaT)
Reciprocal of Delta T in Hz (1/DeltaT)
automatic measurement Peak-to-peak, amplitude, maximum, minimum, top, bottom, average, median, cycle average,
RMS, Cycle RMS, Area, Cycle Area, Overshoot, Preshoot, Frequency, Cycle,
Rise time, fall time, positive pulse, negative pulse, positive duty cycle, negative
Duty cycle, delay A->B↑, delay A->B↓, delay B->A↑, delay B->A↓
Measurement times Simultaneous display of up to 5 measured values
measurement statistics Average value, maximum value, minimum value, standard deviation, number of measurements
frequency counter Hardware 6-bit counter (optional channel)
input Output
standard USB host, USB device, LAN, AUX output
Elective LA Module, WaveGen Module, DMM Module
calibrator signal 10Hz, 100Hz, 1kHz, 10kHz; ≈3Vpp
energy source 100~ 240VACrms, 50Hz/60Hz; Max 50VA
Accessories Instruction Manual, Power Cord, USB Data Cable, Probe×2(×4), Software CD
size and weight 336(W) × 164(H) × 105(D)mm, 3.5kg
