Digital Super Phosphor 500MHz Bandwidth, Four Channels, 4GS/s Sample Rate, USB Communications Oscilloscope

Supplier: Huazheng Electric Manufacturing (Baoding) Co., Ltd.
Region: Hebie, China
Contact: Ms Sunny Shen
Price: $200.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Customization support:	OEM production	Certification:	CE certification
Name:	oscilloscope	brand:	Huazheng
port:	Tianjin/Shanghai	interface:	USB OTG
Storage:	bitmaps, settings, waveforms	exhibit:	7-inch 64k color TFT LCD screen, 800*480
type:	other	Warranty:	1 year

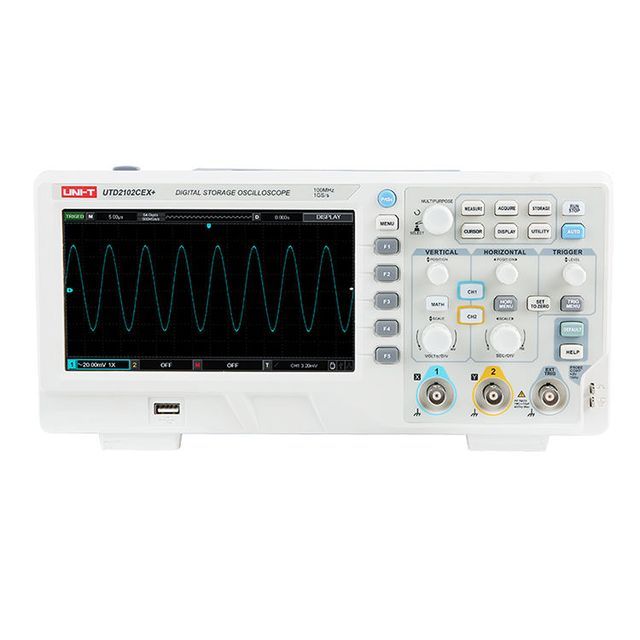

Origin:	Hebei china	model:	UTD2102CEX+
Supply capacity:	10,000 digital oscilloscopes per month	Product Weight:	2.2 kg
channel:	2	Time base range (s/div):	2ns/div~50s/div
Packaging Details:	Digital super phosphor 500MHz bandwidth, four channels, 4GS/s sampling rate, USB communication oscilloscope Inner packing: Bubble board Outer packing: Standard box Customer OEM packing is also available	Product color:	white and gray
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram, paypal	Product Size:	306mm 147mm 122mm

Digital Super Phosphor 500MHz Bandwidth, Four Channels, 4GS/s Sample Rate, USB Communications Oscilloscope

Product Description

1. 2 channels, wide vertical range: 1mV/div~20V/div;
2. 7-inch widescreen LCD display;
3. New interface style;
4. Support plug and play USB storage devices. Communication and remote control with computer via USB device;
5. U disk system software upgrade;
6. Waveform setting and interface waveform storage and setting reproduction;
7. Automatically measure 32 waveform parameters;
8. Unique waveform record and playback function;
9. Provide multilingual menu

Specifications:

Specification	UTD2102CEX
channel	2
bandwidth	100MHz
Sampling Rate	1GS/sec
Rise Time	≤3.5ns
memory depth	25kpts
Waveform Acquisition Rate	≥2000wfms/s
Vertical Sensitivity (V/div)	1mV/div~20V/div
Time base range (s/div)	2ns/div~50s/div
storage	settings, waveforms, bitmaps
trigger mode	Edge, Pulse, Video, Slope, Alternate
interface	USB OTG
general characteristics
strength	100-240VAC, 45-440Hz
exhibit	7-inch 64k color TFT LCD screen, 800×480
Product color	white and gray
Product Weight	2.2 kg
Product size (width x height x depth)	306mm×147mm×122mm
Standard accessories	Probe × 2 (1 ×, 10 × switchable), power cord, USB data cable, PC software CD
Standard Individual Packaging	Gift box, English manual
Standard quantity per box	2
Standard carton size (length x width x height)	450mm×420mm×280mm
Standard carton gross weight	8.5 kg
Optional accessories
Los Angeles Module

Accessories:

Probe × 2 (1 ×, 10 × switchable),
power cable,
usb cable,
computer software disc,
LA module (UT-M09)*
