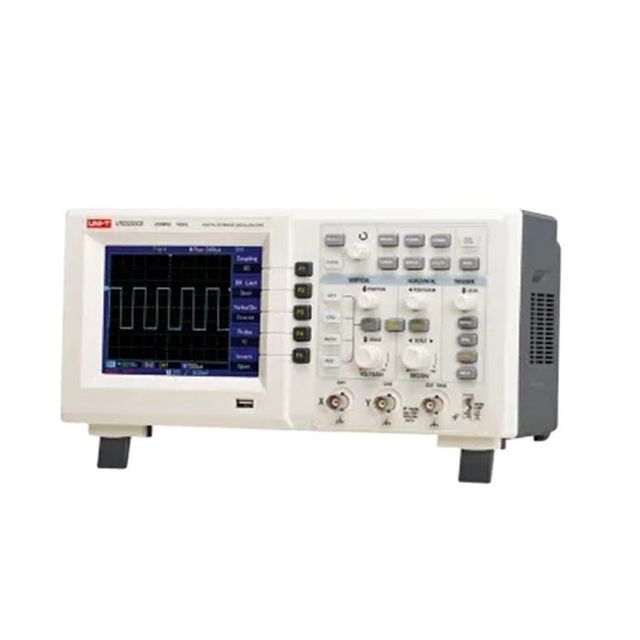

Uni-t Low price oscilloscope portable digital oscilloscope oscilloscope
-
Supplier: Hebei Huanhai Import & Export Trading Co., Ltd. -
Region: Hebei, China -
Contact: Ms Tina Zhu -
Price: $200.00 /unit -
Min. Order: 1 unit
Product details
| usage: | Digital Storage Oscilloscope | Packaging Details: | 60MHz low-cost digital storage oscilloscope UTD2062C Packaging: standard export packaging, express, air |
| Specification: | UTD2062C | channel: | 2 |
| brand: | Huazheng | Warranty: | 1 year, 1 year |
| Supply capacity: | 2000 digital storage oscilloscopes per month | type: | oscilloscope |
| Rise Time: | ≤5.8ns | Customization support: | OEM production |
| channel: | 2 | payment terms: | L/C, Western Union, T/T, MoneyGram, Trade Assurance |
| model: | HZ-UTD2062CE | After-sales service: | Yes |
| Origin: | Hebei china | bandwidth: | 60MHz |
| port: | Tianjin/Shanghai, any port is ok | strength: | 100-240VAC, 45-440Hz |
| Sampling Rate: | 500 ms/s |
Uni-t low price oszilloskop portable digital oscilloscope osciloscopio
UT China agent
Product Description
describe:
1. Support plug-and-play USB storage devices. Communication and remote control with computer via USB device;
2. Store waveform settings and reproduce interface waveforms and settings;
3. Automatically measure 28 waveform parameters;
4. Unique waveform record and playback function;
5. Edge, Pluse, Video, Alternate trigger function;
6. Multilingual menu display.
scope:
| Specification | UTD2062CE |
| channel | 2 |
| bandwidth | 60MHz |
| Sampling Rate | 500 ms/s |
| Rise Time | ≤5.8ns |
| memory depth | 25kpts |
| vertical sensitivity | 2mV/div ~ 5V/div |
| time-based range | 5ns/div ~ 50s/div |
| storage | settings, waveforms, bitmaps |
| trigger mode | Edge, Pulse, Video, Alternate |
| interface | USB device, USB host |
| general characteristics | |
| strength | 100-240VAC, 45-440Hz |
| exhibit | 5.7 inches 64K color TFT LCD screen, (320×240) |
| Product color | red and gray |
| Product Weight | 2.5 kg |
| Product size (W×H×D) | 320mm×150mm×130mm |
| Standard accessories | Probe × 2 (1 ×, 10 × switchable), power cord, USB data cable, PC software CD |
| Standard Individual Packaging | Gift box, English manual |
| Standard quantity per box | 2 |
| Standard carton size (L×W×H) | 450mm × 420mm × 280mm (0.053 CBM/standard carton) |
| Standard carton gross weight | 9.2 kg |
| Optional accessories* | |
| LAN communication port | |
