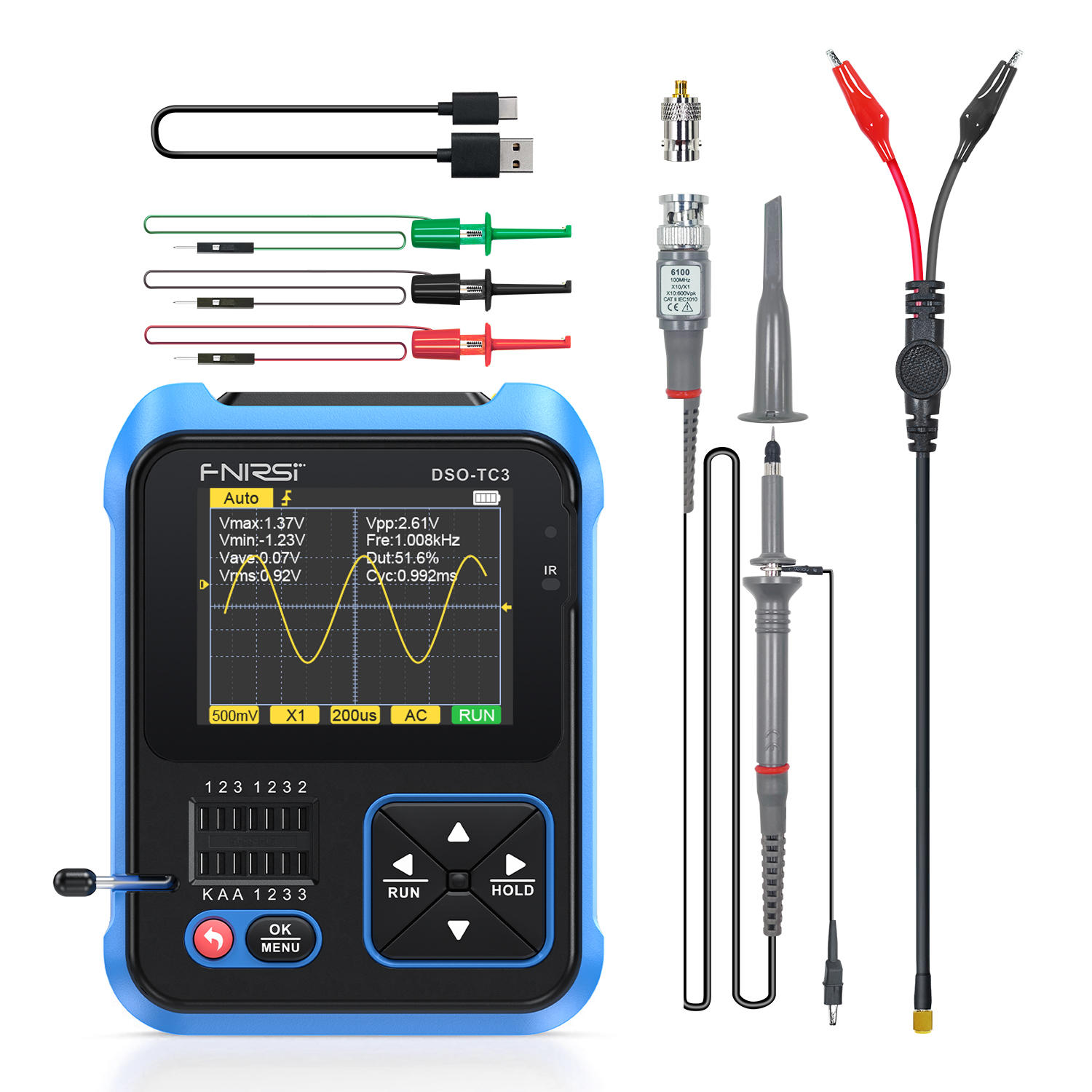

FNIRSI DSO-TC3 10MS/s 500kHz Bandwidth Support Diode PWM Out Transistor LCR Signal Generator Digital Oscilloscope with P6100

Click here to contact
Product details
Packaging Details:standard packagePackage preview:
model:Oscilloscope-TC3+P6100Origin:Guangdong, China
bandwidth:500Khzlanguage:English
Customization support:OEM,ODM,OBMKey words:Signal Oscilloscope
port:Shenzhen PortWarranty:1 year
brand:infrared spectrometerSampling Rate:10M Sa/s
MOQ:1payment terms:Western Union, T/T, MoneyGram
Key words:Neilsey ScopeCertificate:EU ROHS
type:portable oscilloscopeproduct name:oscilloscope
pack:cartonSupply capacity:200 pieces per week
Package weight:0.5 kg
Product Description
FNIRSI DSO-TC3 10MS/s sampling rate 500kHz bandwidth support diode PWM output transistor LCR signal generator digital oscilloscope

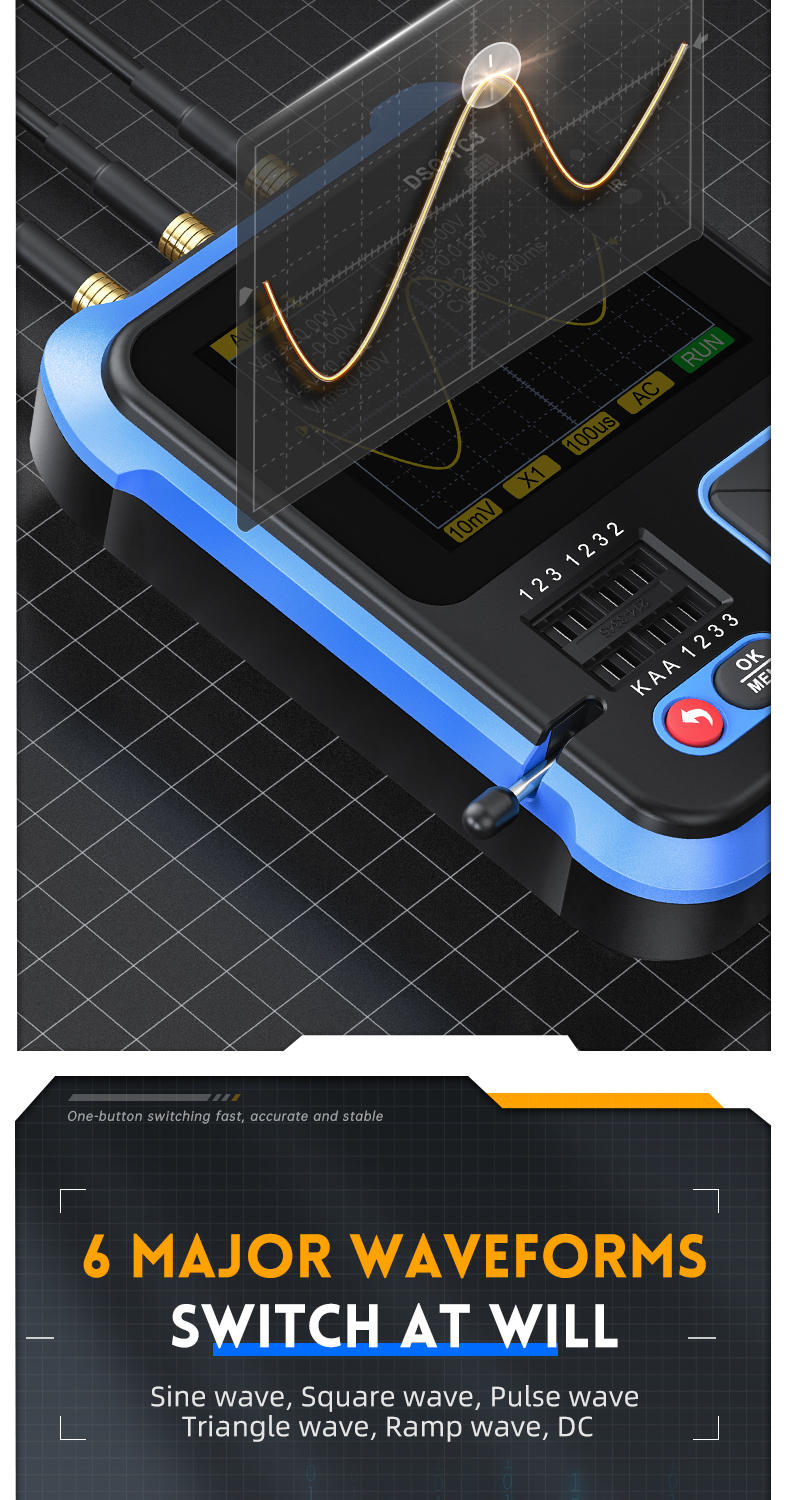

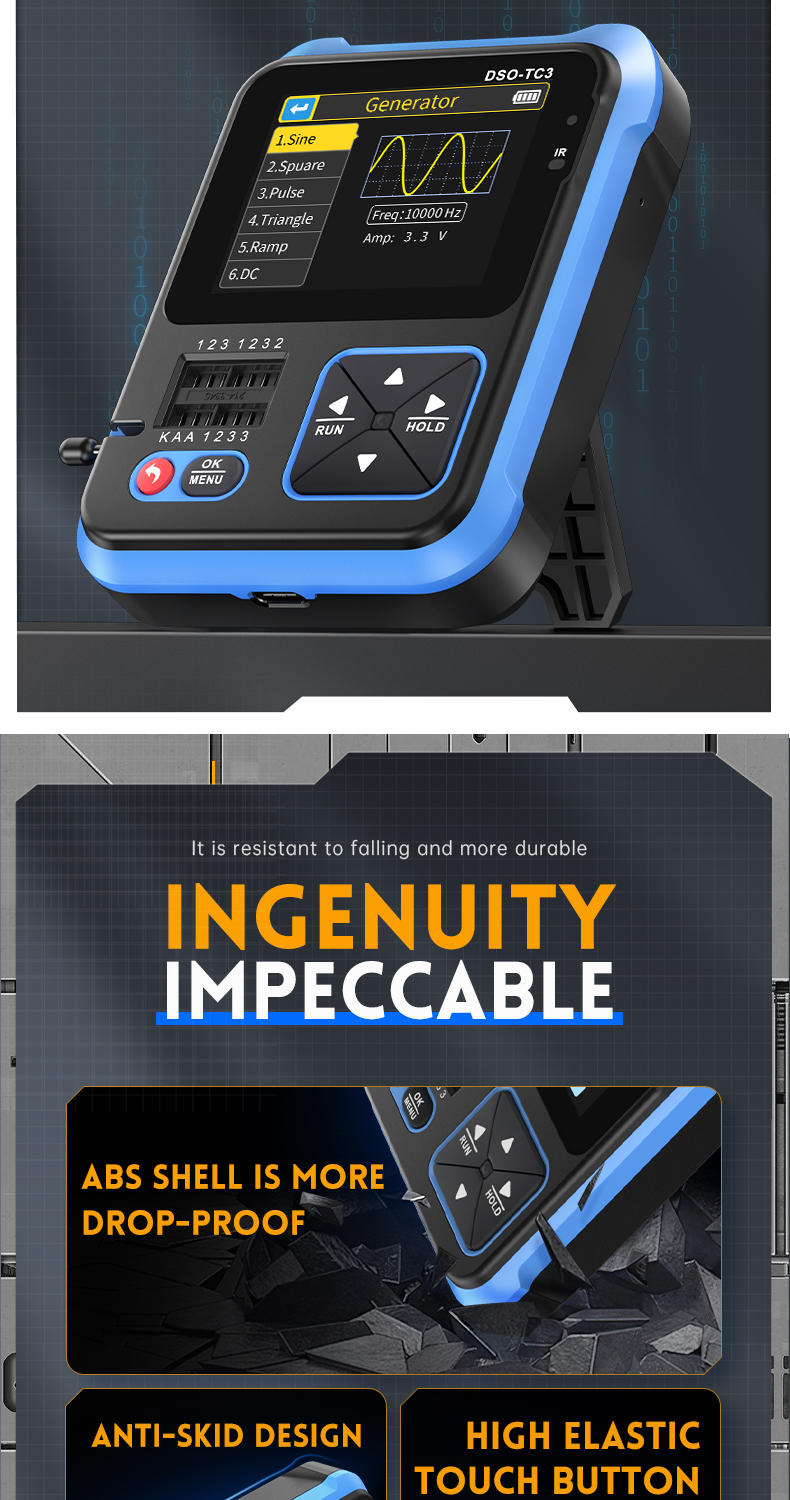

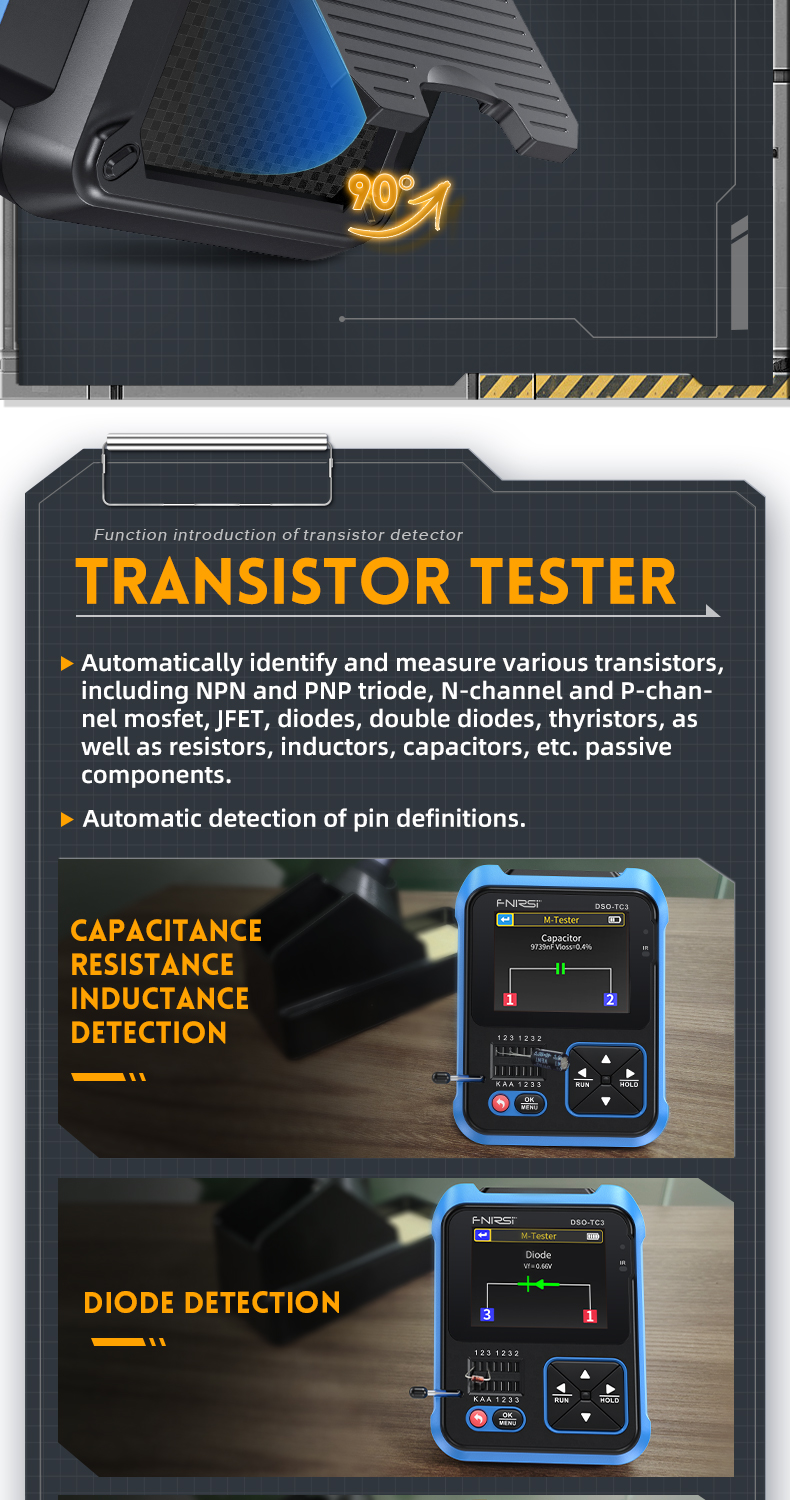

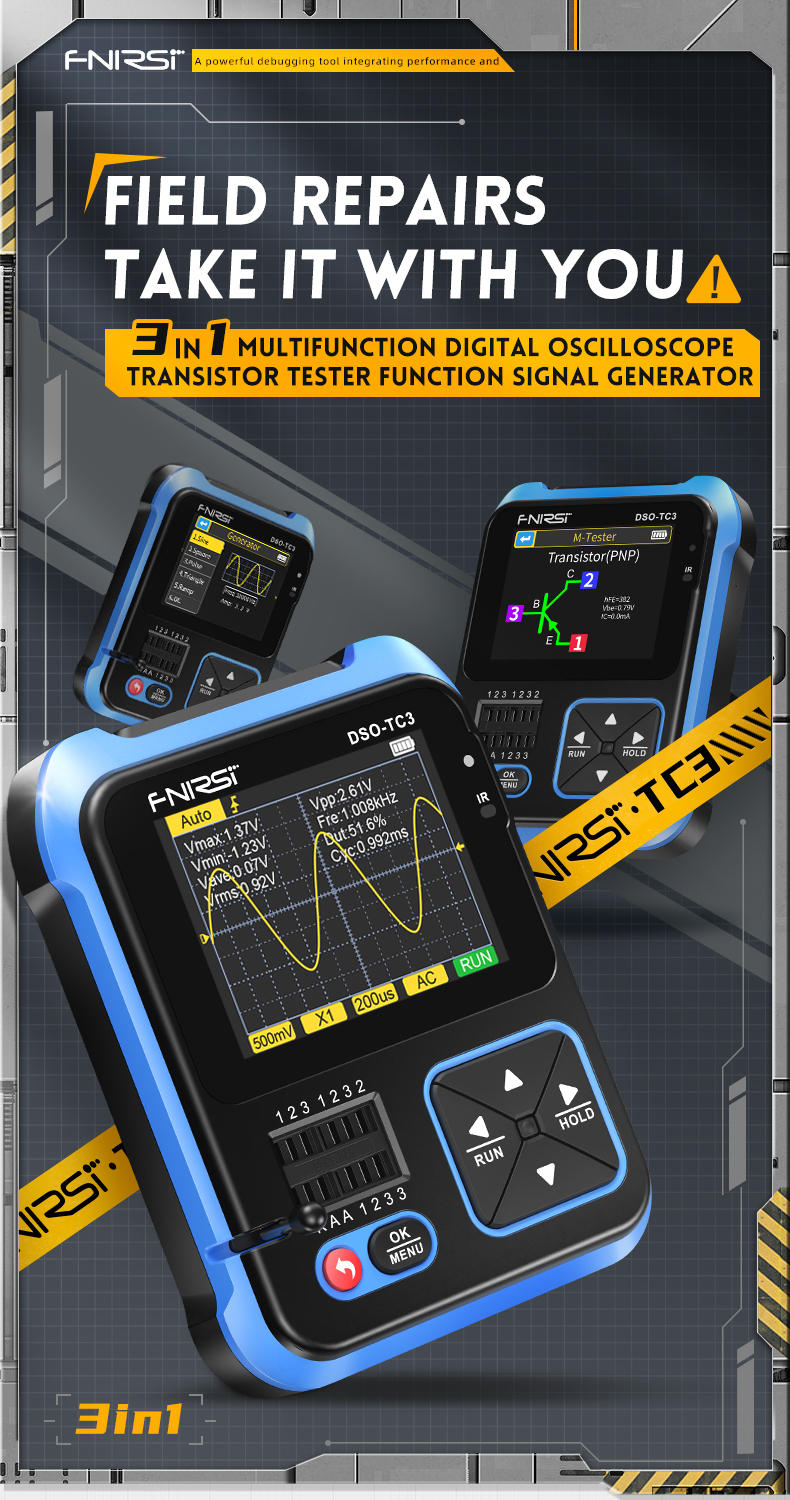

This product cleverly integrates the functions of digital oscilloscope, transistor tester and signal generator in one machine. It has a real-time sampling rate of 10MS/s and a bandwidth of 500Khz. Support maximum 400V voltage signal measurement. Has a complete trigger function (automatic, single, timing). Equipped with an efficient button AUTO, the measurement waveform can be displayed without cumbersome adjustments. Automatic identification and measurement of various transistors. Automatic detection of pin definitions. 6 kinds of signal waveform detection. And it has the function of circuit continuity test.feature:Three-in-one function: This product cleverly integrates the functions of digital oscilloscope, transistor tester and signal generator into one machine. Digital oscilloscope function: real-time sampling rate 10MS/s, bandwidth 500Khz. Support maximum 400V voltage signal measurement. Has a complete trigger function (automatic, single, timing). Equipped with an efficient button AUTO, the measurement waveform can be displayed without cumbersome adjustments. Transistor tester function: Automatically identify and measure various transistors, including NPN and PNP transistors, N-channel and P-channel MOSFETs, JFETs, diodes, dual diodes, thyristors, and resistors, inductors, capacitors, field Passive components such as effect tubes. Automatic detection of pin definitions. Signal generator function: 6 signal waveforms: sine wave, square wave, pulse wave, triangle wave, ramp wave, direct current. 1-100KHz adjustable output frequency. 3.3V adjustable output voltage. 0-100% adjustable output duty cycle. Toolbox function: Automatically analyze infrared codes of specific protocols. Other function modes: including circuit continuity test, 0-40V input voltage measurement, PWM output, 0-32V diode measurement, temperature and humidity sensor measurement, etc. Small size: Lightweight and portable, it can also be used as a portable tool - on-site debugging. Reliable quality: ABS anti-fall shell, non-slip concave surface design, high elastic buttons, simple interface and easy operation. 2.4-inch digital TFT display: TFT color screen, high-resolution display with LED backlight, bright colors, high contrast, the data is clearly visible under strong light. High precision: Infrared decoding design, fast response, accurate capture of high-sensitivity response signals, fast and accurate measurement, small error. Rich and powerful functions: one-button automatic adjustment, support for free switching, support for intelligent fire prevention. Long battery life: Built-in 1500mAh large-capacity rechargeable polymer lithium battery, long service life, Type-C interface, continuous power supply without isolation transformer, safer to use. Folding stand: It comes with an invisible stand, which can be folded in one piece and placed firmly, freeing your hands and not taking up too much space. Wide range of applications: suitable for single-chip microcomputer debugging, car maintenance, home appliance maintenance, DIY gaming, power supply debugging, inverters, etc.Specification:Name: 3-in-1 digital oscilloscope Material: ABS Display: 2.4 inches TFT color screen Battery: Built-in 1500mah rechargeable lithium battery (included) Charging interface: USB Type-C, +5V Digital oscilloscope: 10MSa/s Real-time sampling rate: 500Khz Analog Bandwidth: 1μΩ Input Resistance: AC/DC Coupling Method: 400V Test Voltage Range: 10mV-10V Vertical Sensitivity (x1): 1us-10s Horizontal Time Base Range: Trigger Mode: Auto/Normal/Single Trigger Type: Rising Edge/ Falling edge waveform freezing: Yes Automatic measurement: Yes Transistor tester: Capacitor: 25pF~100mF Resistance: 0.01Ω~50μΩ Inductance: 10uH~1000uH Battery: 0.1~4.5V Input voltage: 0~40V DS18B20: 0-85℃ DHT1: 0-60°C/5-95% Signal generator: Sine wave: 1-10KHz/0-3.3V/50% Square wave: 1-100KHz/3.3V/50% Pulse wave: 1-100KHz/3.3V/ 0-100% triangle wave: 1-10KHz/0-3.3V/50% ramp wave: 1-10KHz/0-3.3V/0-100% DC: 0-3.3V Product size: 110 * 76 * 30mm / 4.33 * 2.99 * 1.18in Package size: 140 * 125 * 55mm / 5.51 * 4.92 * 2.17in Package weight: Standard configuration: 300g / 10.58ounce High configuration: 345g / 12.17ouncePacking list (high configuration):1 * 3in1 Digital Oscilloscope 1 * Adapter 1 * Probe 1 * High Voltage Probe 3 * Test Hook 1 * Type-C Cable 1 * Manual

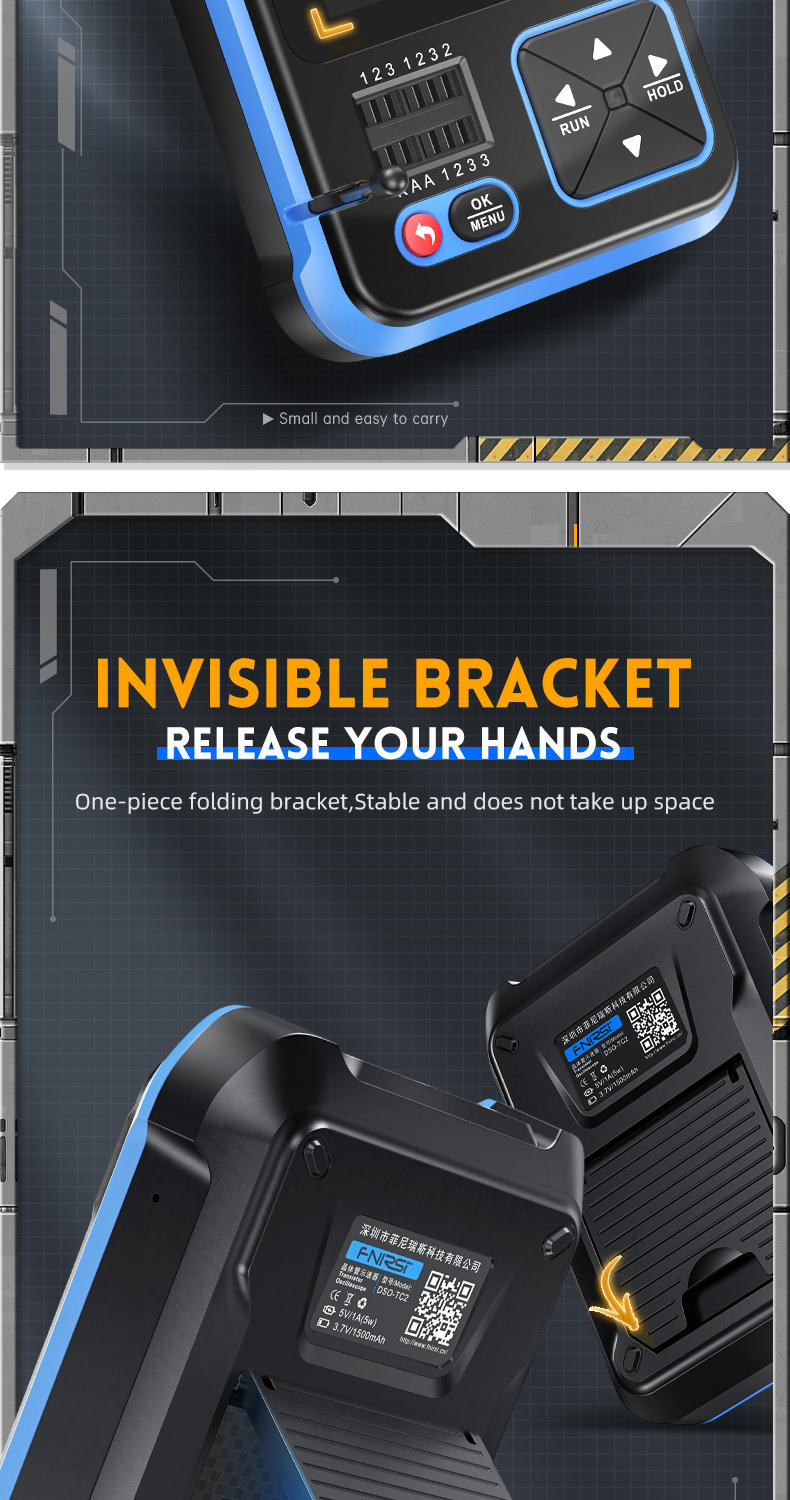

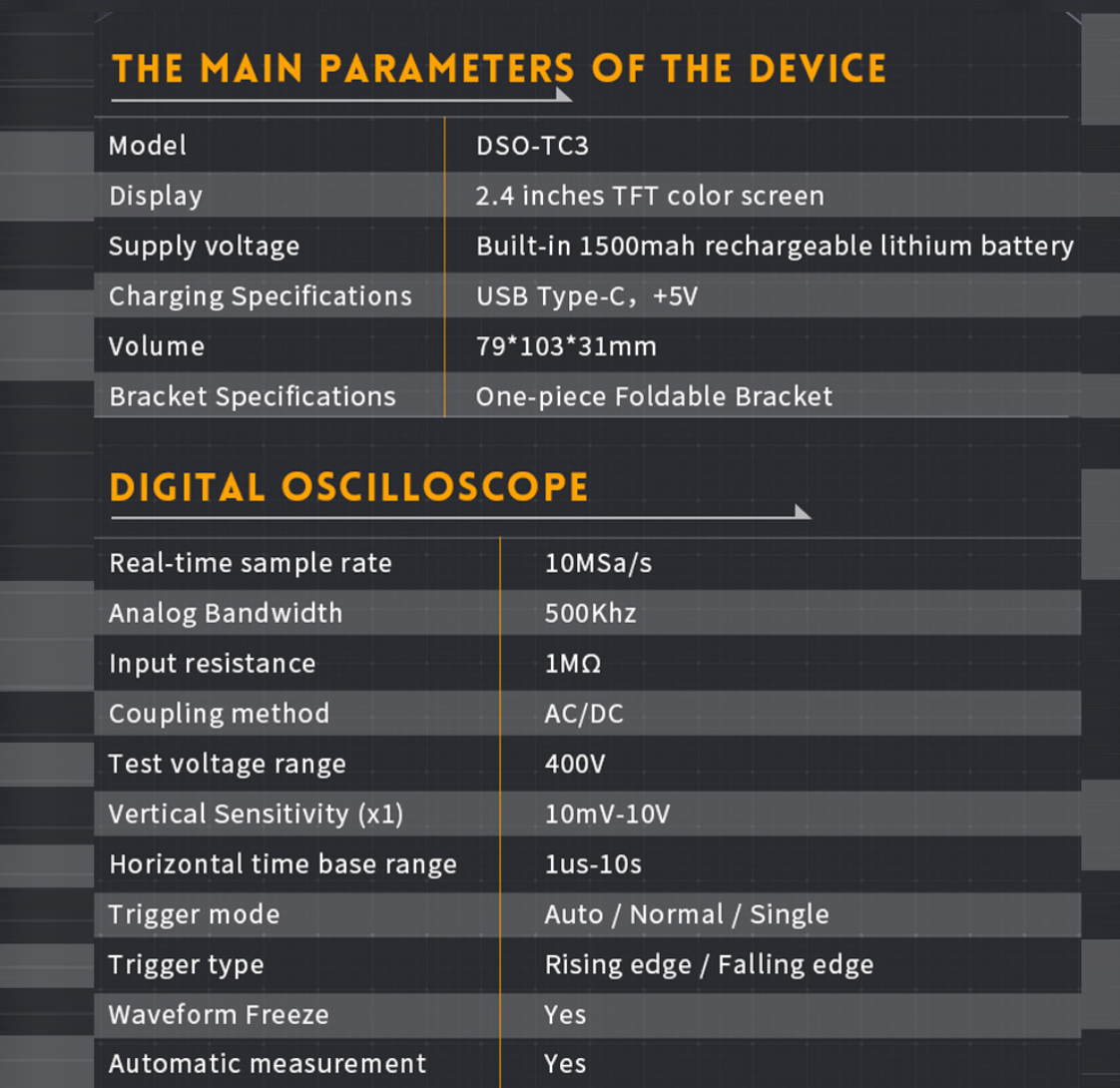

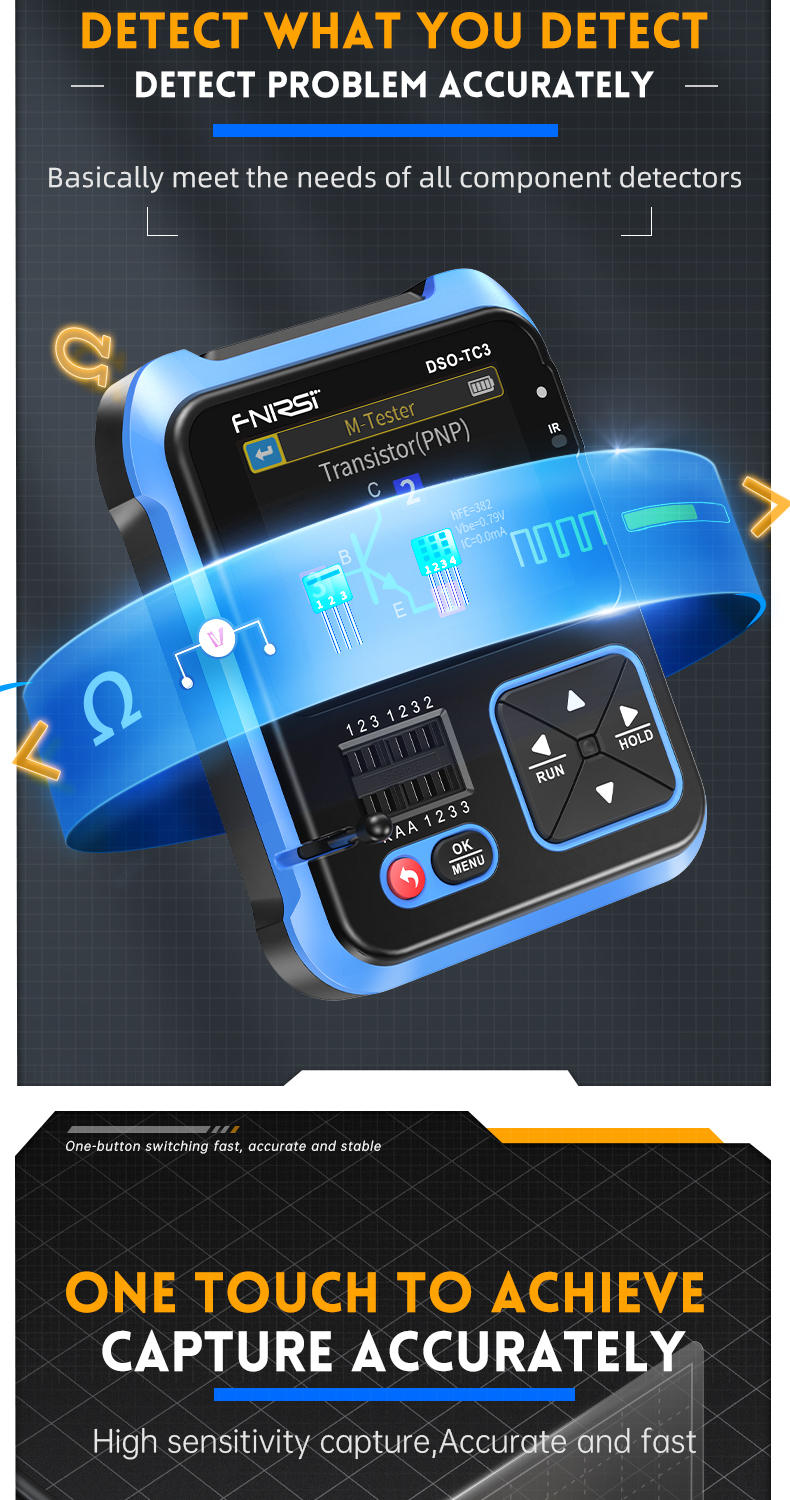

detailed drawing
customer photo

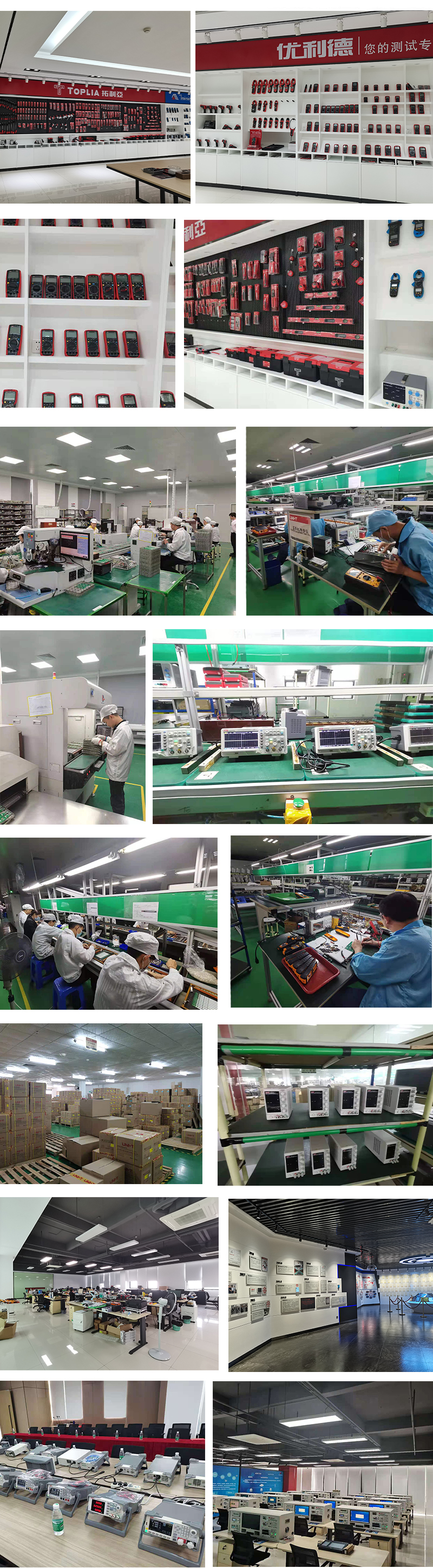

Manufacturing Technology
