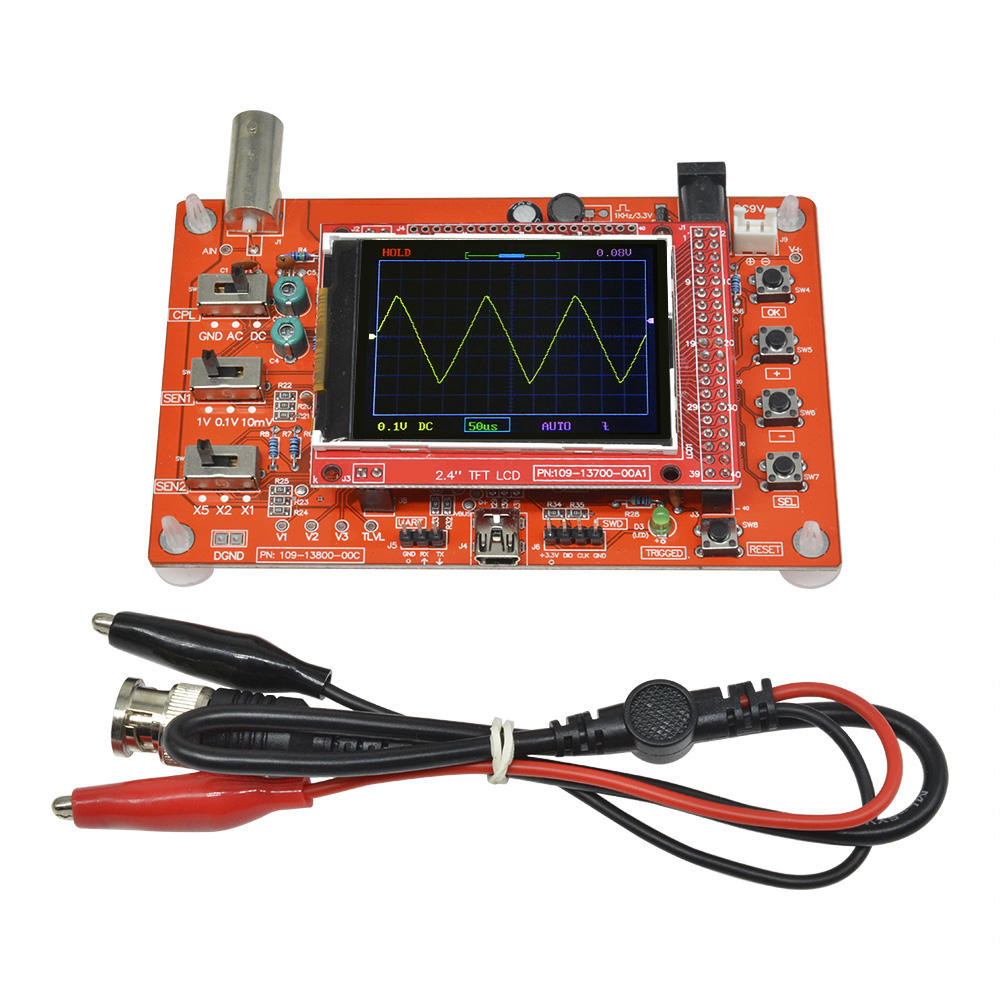

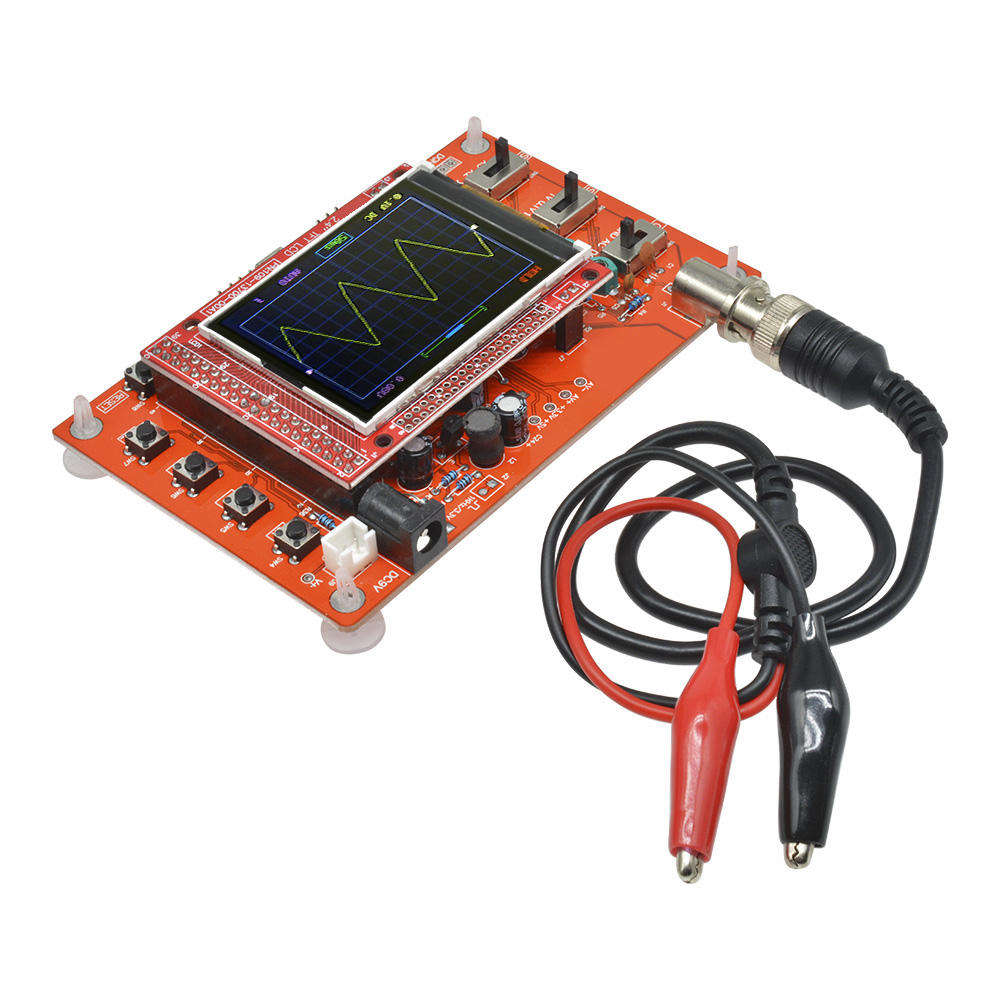

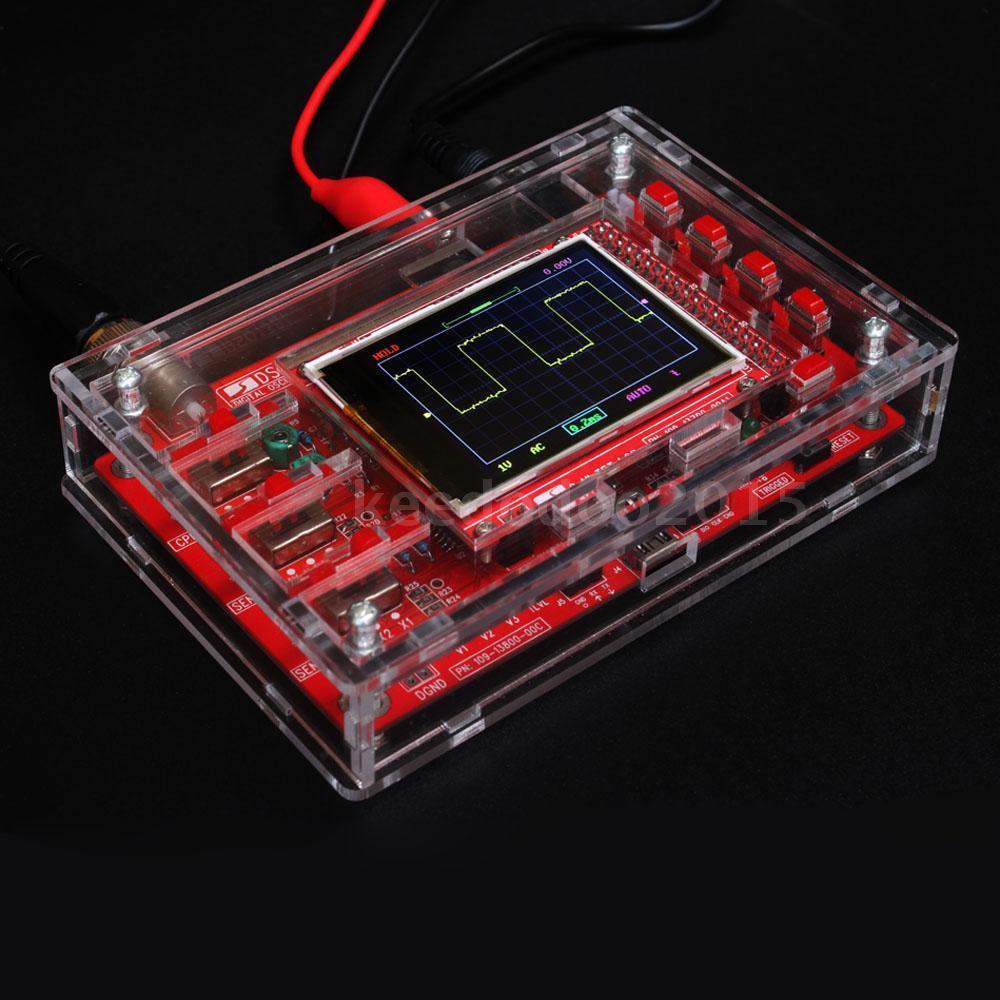

Fully Assembled Digital Oscilloscope 2.4" TFT LCD Display with Alligator Probe Test Clip for DSOO138 Oscilloscope

Click here to contact
Product details
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGramport:Shenzhen
Warranty:1 yearOrigin:Guangdong, China
brand:original brandCustomization support:Processing
Packaging Details:Packing: All goods will be packed in poly bags first and then put into cartons. Delivery: If the quantity is large enough, the items/goods can be delivered according to the customer's requirements, such as by express, by air or by container.type:oscilloscope
model:011343 050602 ZH0147Package preview:
Supply capacity:7600 bags per week
Related Products
Product Description
Item No.:

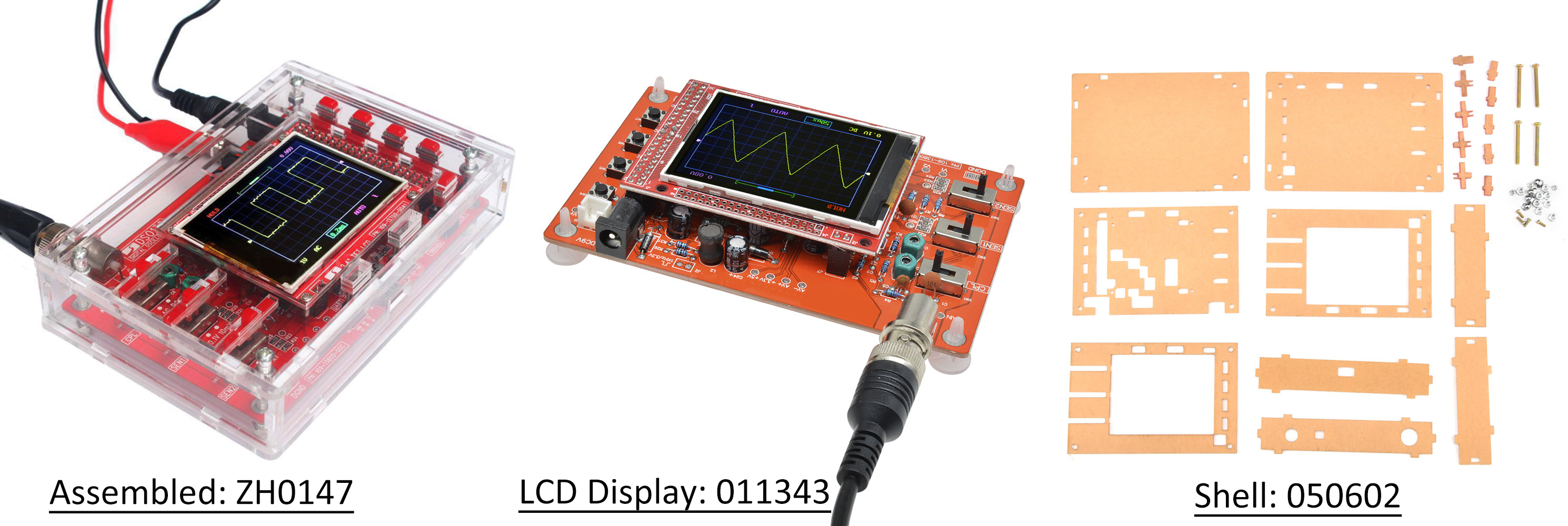

LCD screen: 011343 Housing: 050602 After assembly: ZH0147

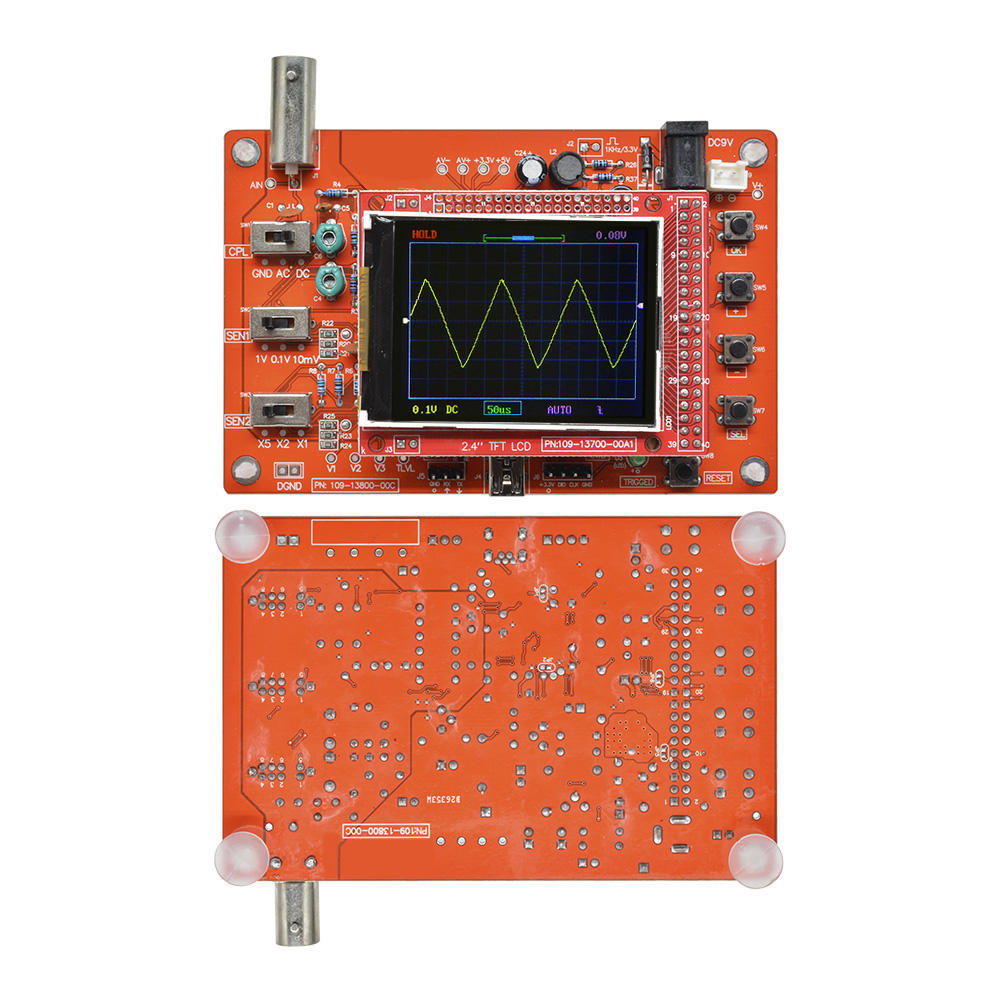

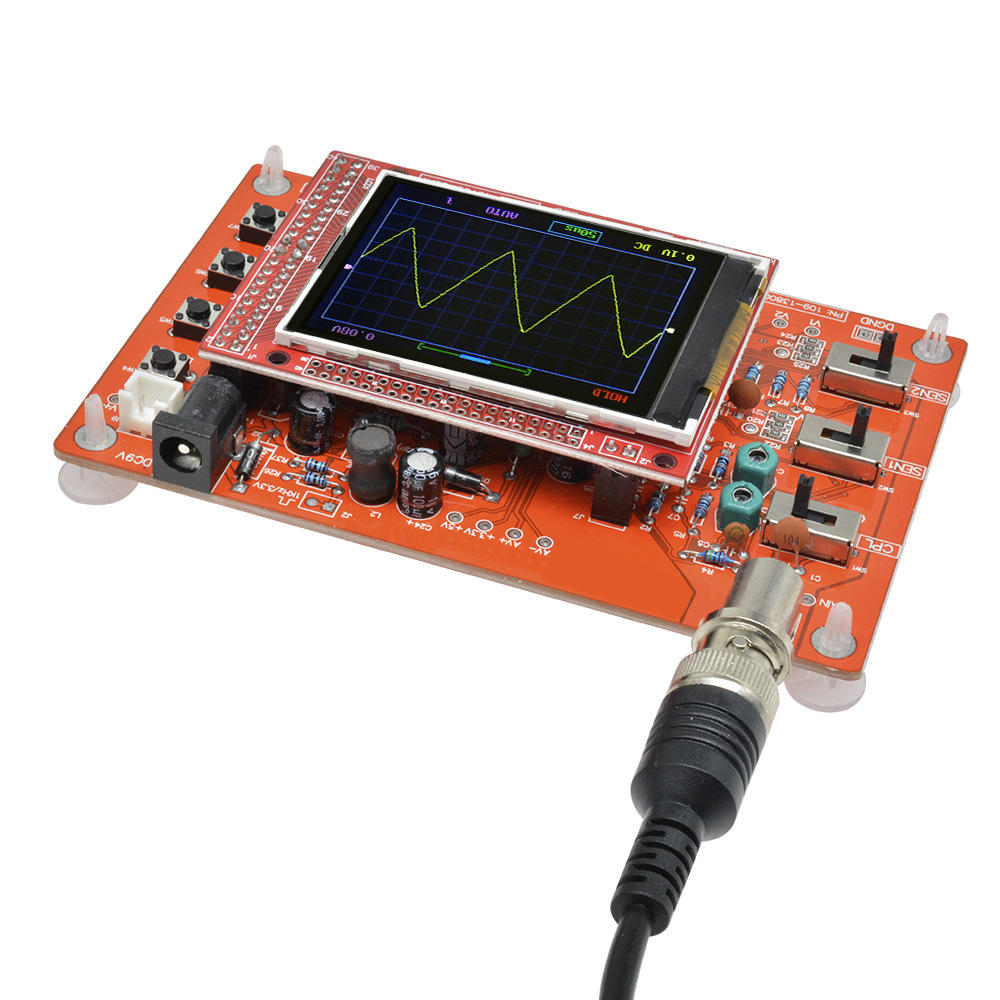

feature:For the training of electronic production, complete and detailed description materials, including schematic diagrams, production instructions, instructions for use, troubleshooting methods, etc., have a high success rate. The types of components are diversified, providing training for students on component identification, in-line component welding, and SMD component welding. Students can make practical tools at the same time to effectively observe and measure audio, video synchronization, low-frequency switching power supply, infrared receiving and transmitting signal waveforms and other occasions, increasing learning interest and improving learning effect. The kit uses an ARM Cortex-M3 processor (STM32F103C8) and includes a 2.4-inch color TFT display that can be used as a test ARM development board. With the existing source code, capable friends can carry out secondary development based on the kit, for example, it can be changed to a millivolt meter, data logger, etc. The circuit is simple and reliable.
Specification:Maximum real-time sampling rate: 1Msps Accuracy: 12Bit Sampling buffer depth: 1024 bytes Analog bandwidth: 0 - 200KHz Vertical sensitivity: 10mV/Div - 5V/Div (1-2-5 progressive mode) Adjustable vertical displacement, with Command input impedance: 1MΩ Maximum input voltage: 50Vpp (1:1 probe), 400Vpp (10:1 probe) Coupling methods include DC/AC/GND Horizontal time base range: 10μs/Div - 50s/Div (1-2-5 Progressive) mode) with automatic, timing and single trigger modes, easy to capture instantaneous waveforms can be triggered by rising or falling edges, adjustable trigger level position, and with an indicator to observe the waveform before the trigger (negative delay) can freeze the waveform display at any time (HOLD function) Comes with 1Hz/3.3V square wave test signal source

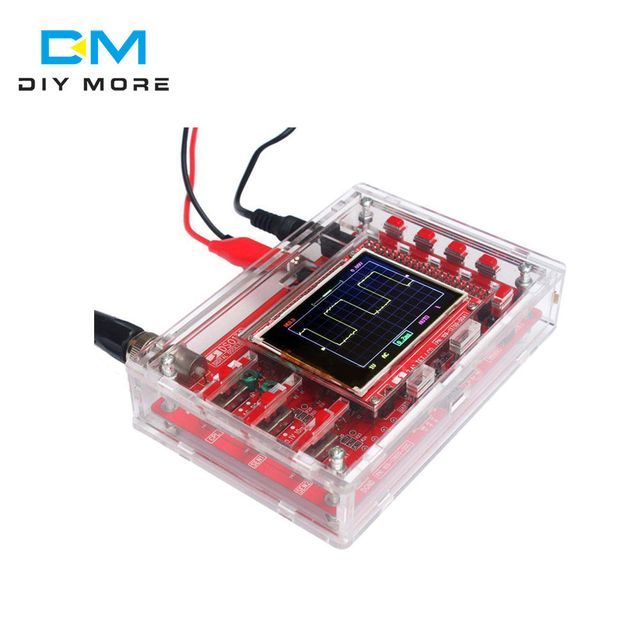

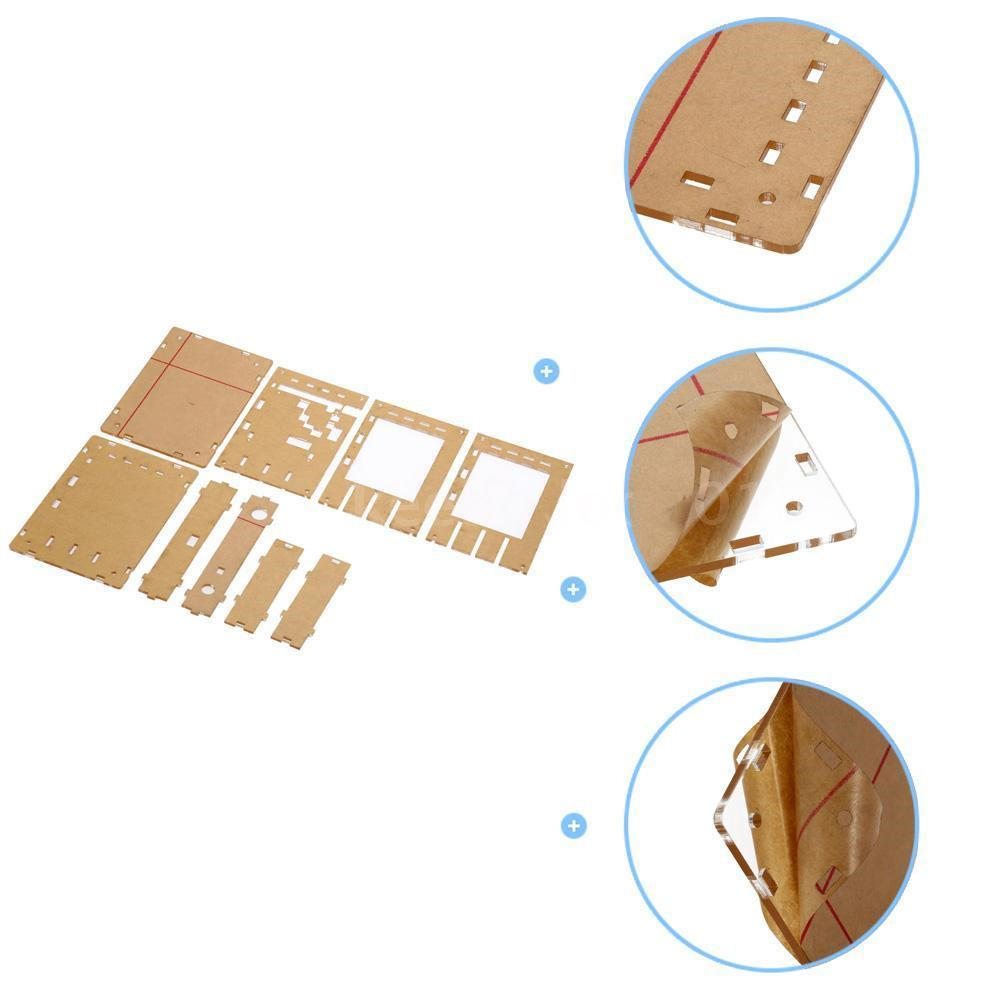

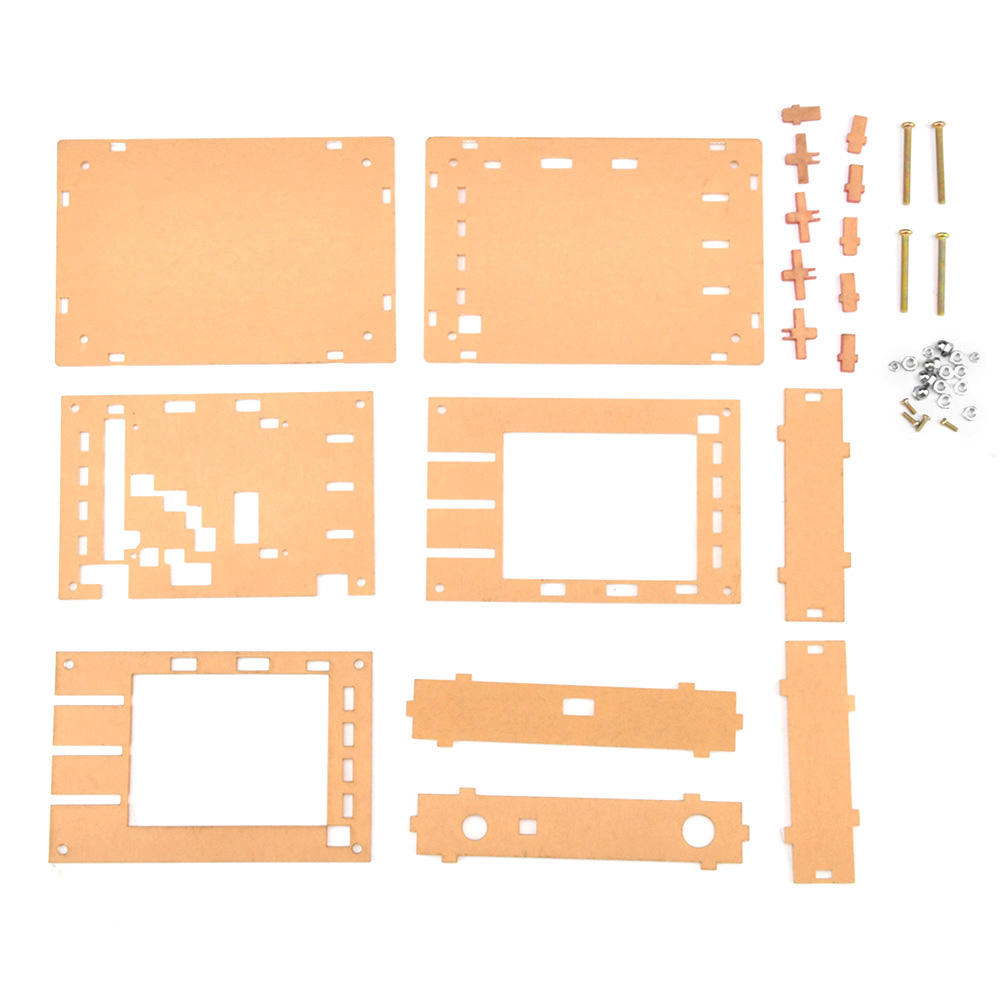

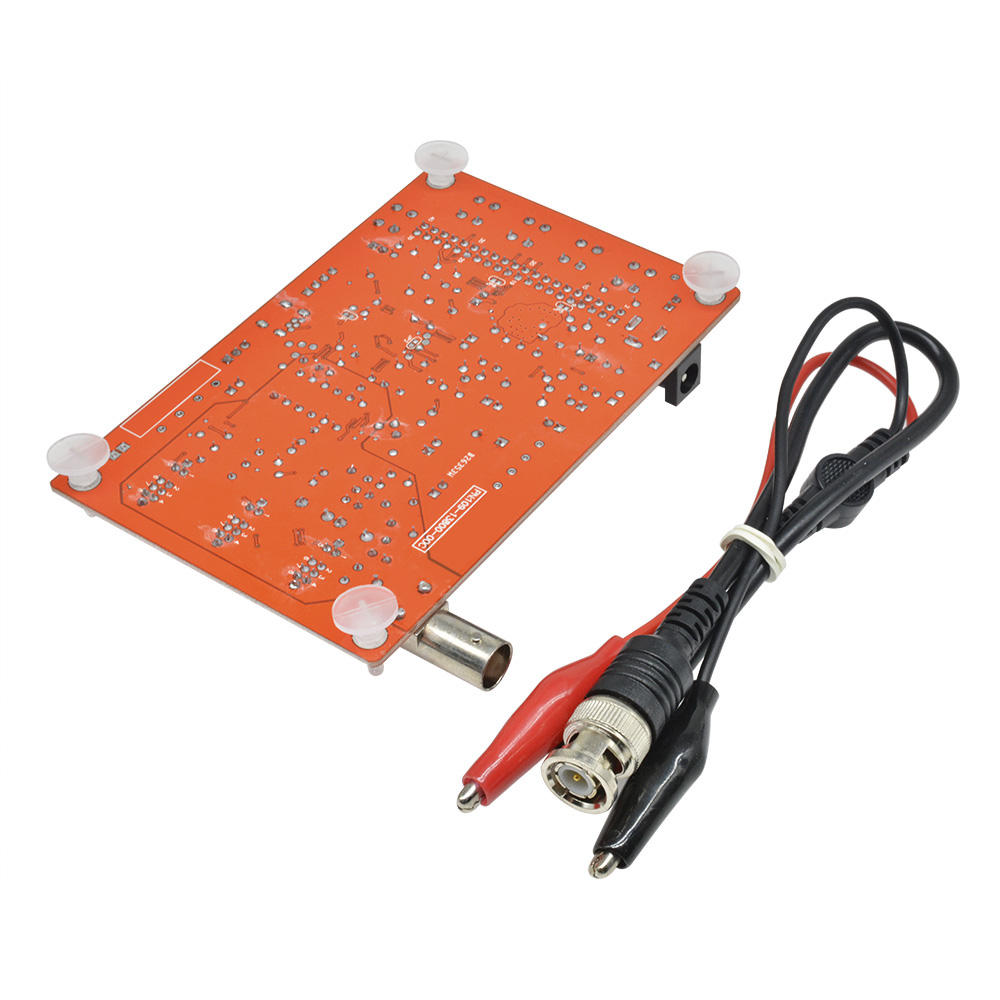

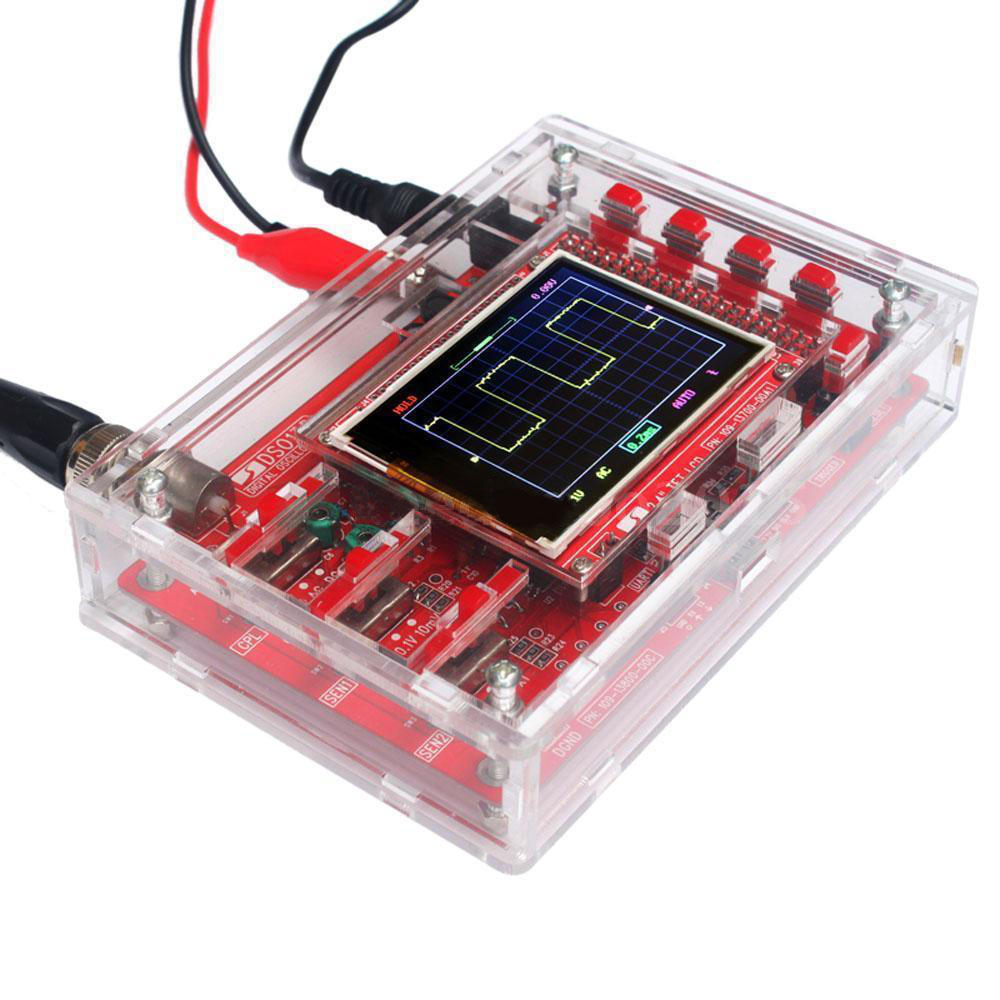

Package includes: (optional)1 * Assembled digital oscilloscope with probes 1 * Transparent acrylic case
Serve
OEM/ODM
sample
usable
After-sales service
usable
delivery time
usable
quality
high quality
QC
Our QC will 100% test the products before shipping
Customer Feedback
Product packaging

Package
1. QC will 100% inspect all products before shipping.
2. Each product is sealed in an OPP bag.
3. Common cartons will be used, customized designs are welcome.
4. If required, AMAZON barcode can be pasted on the opp bag.

deliver goods
Sample: shipped within 2 days.
Bulk orders: ship within 10 days.
Shipping method: FedEx, DHL, UPS, TNT, EMS, Alibaba Express.
Shipping by air takes about 3-7 days.
Shipping by sea takes about 25-35 days.
Our advantage
this is our market
1. We accept OEM/ODM service,
2. Our company has eBay, Amazon, Aliexpress, Wish, Lazada, CD, Joom, Shoppe, Shopify and other online stores. If you want to start your own business, please ask us, we can teach you how to open a shop and tell you everything we know
3. We accept bulk dropshipping orders.
4. Fast delivery time.
