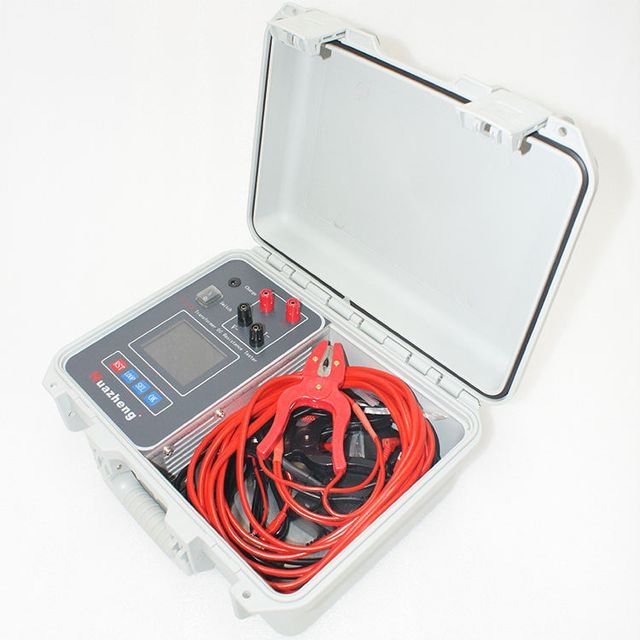

Huazheng winding resistance measurement 10A power transformer analysis and measurement device DC resistance meter
- 1100.00 set
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| brand: | Huazheng | Packaging details: | DC resistance tester packaging: wooden box |
| Place of origin: | Hebei china | Output current: | <5mA, 2.5A, 5A, 10A, 20A, 40A, |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Display type: | Numbers only |
| Certificate: | IS9000:2008 | weight: | 13kg |
| aspect: | 400mm*225mm*350mm. | Warranty: | 1 year |
| model: | HZ-3110 | Operating temperature: | 0~40℃ |
| Supply capacity: | 500 DC resistance testers per month | Product Category: | DC resistance tester |
| Operating temperature: | 0-40 | solve: | 0.1μΩ |
| accuracy: | ±(0.2%+2 readings) | Measuring range: | 50μΩ~500mΩ (40A) |
| level of accuracy: | High | size: | 400mm*225mm*350mm |
| environment humidity: | ≤90%RH | Test voltage: | 220V |
Huazheng Electric winding resistance measurement 10A power transformer analysis and measurement device DC resistance meter
Product Description
|
Main Specifications |
|
|
Output current |
<5mA, 40mA, 200mA, 1A, 3A, 10A |
|
solve |
0.1μΩ |
|
scope
|
0.5mΩ~0.2Ω(10A) |
|
|
1mΩ-3Ω(3A) |
|
|
5mΩ-6Ω (1A) |
|
|
100mΩ-40Ω (200mA) |
|
|
1Ω-200Ω(40mA) |
|
|
100Ω-20KΩ(<5mA) |
|
accuracy |
±(0.2%+2 readings) |
|
Operating temperature |
0~40℃ |
|
environment humidity |
≤90%RH, (non-condensing) |

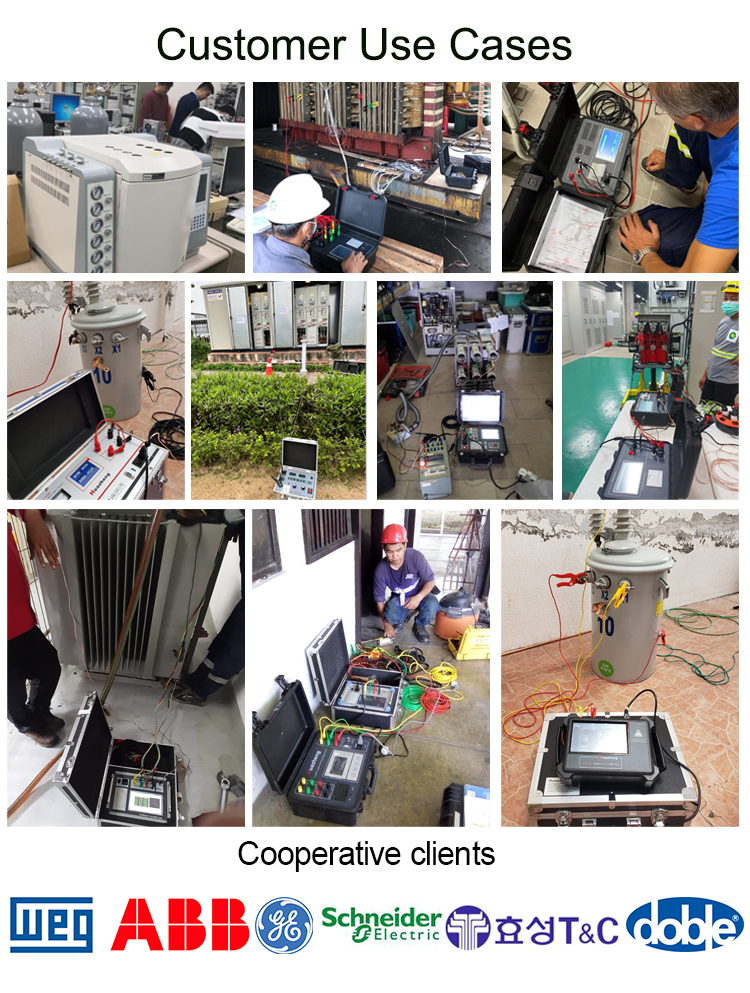

Customer use case
