HVHIPOT GDZX79D+ standard resistance box megger calibrator resistance tester calibration device Products from HV Hipot Electric Co., Ltd.

Product Details

port:	Wuhan, Guangzhou, Shanghai, Shenzhen, Ningbo	type:	Decimal type
Test voltage:	maximum. 5KV	color:	blue
model:	GDZX79D+	Supply capacity:	1000 sets per year
weight:	<15kg	level of accuracy:	5%
Relative humidity:	40%~60%	usage:	Verify various megohmmeters with rated voltage 5000V
Place of origin:	Hubei, China	Measuring range:	0-121111.110MΩ
Display type:	Numbers only	product name:	Standard resistance box
maximum. Operating Voltage:	5kV	Packaging details:	Carton or plywood box
aspect:	490mm249mm171mm	Operating temperature:	23±5℃
shape:	Box type	payment terms:	L/C, Western Union, T/T
Warranty:	1 year	brand:	High voltage withstand
Mini steps:	100Ω

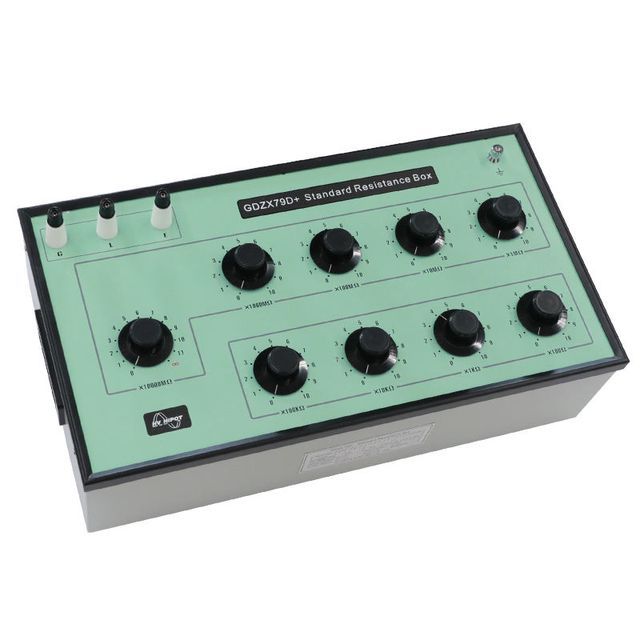

GDZX79D+ standard resistance box megger calibrator resistance tester calibration device

I. General information

GDZX79D+ standard resistance box is mainly used to calibrate various megohmmeters with a rated voltage of 5000V and repoint the dial during the production or maintenance of various insulation resistance meters. It is also suitable for the verification of insulation high-resistance meters and can be used as a standard high-resistance box for other circuits.

two. feature

l Metal film resistors are all produced by joint ventures. This type of resistor has the characteristics of low voltage coefficient, small temperature coefficient and good stability.

l Using the latest designed high-voltage resistant, high-insulation optical switch, the instrument has the characteristics of clear shifting and easy use.

l The resistance box adopts high insulation material and light pressure structure, so it has the advantages of small contact pressure, long life, small contact resistance degradation, and high insulation resistance.

l It adopts metal shell and has good electrostatic shielding effect.

three,.Specification

l Adjustment range: 0-121111.110MΩ, minimum step 100Ω.

l The maximum working voltage/current (reference voltage/current) and level of each decimal resistor board are as follows:

Resistance(MΩ)

×10000

×1000

×100

×10

×1

×0.1

×0.01

×0.001

class(%)

0.2

maximum. Voltage

/current

5kV

2.5kV

500V

8mA

20mA

50mA

l When the maximum operating voltage or current becomes 1/5 of the maximum operating voltage or current, the resistance change caused by the change in voltage or current should not be greater than the corresponding grade index.

l Reference ambient temperature 23℃, relative humidity 40%~60%; nominal operating temperature 23±5℃, relative humidity 25%~75%

l Insulation resistance between line and shell ≥1×10¹²Ω

l The withstand voltage between the line and the shell (AC sine wave, 50Hz) is 8000V for 1 minute.

l Size: 490mm*249mm*171mm

l Weight: <15kg
