Handheld battery internal resistance tester, suitable for 1.2V, 2V, 3.2V, 6V, 12V batteries

Supplier: Fuzhou Fuguang Electronics Co., Ltd.
Region: Fujian, China
Contact: Mr Yi Lin
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging details:	carton	brand:	Fuguang
Place of origin:	Fujian Province, China	payment terms:	wire transfer
Measuring range:	1μΩ-100Ω	Test voltage:	0-17.5V DC
Display type:	5-inch touch LCD screen	aspect:	29112958mm
level of accuracy:	±0.1% of reading ±6dgt	model:	FBR-6100NT
port:	fuzhou

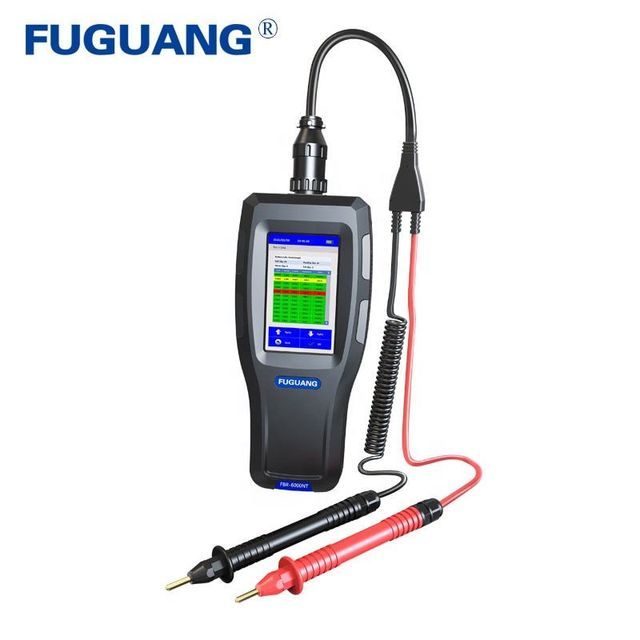

The FBR-6100NT battery internal resistance tester is a new generation of Fuguang™ handheld battery tester that can quickly, intuitively and conveniently determine the deterioration of batteries (lead-acid batteries, lithium iron phosphate batteries, nickel-cadmium batteries, etc.). It has the characteristics of high precision, good repeatability and anti-interference. Ideal tool for quick daily battery checks.

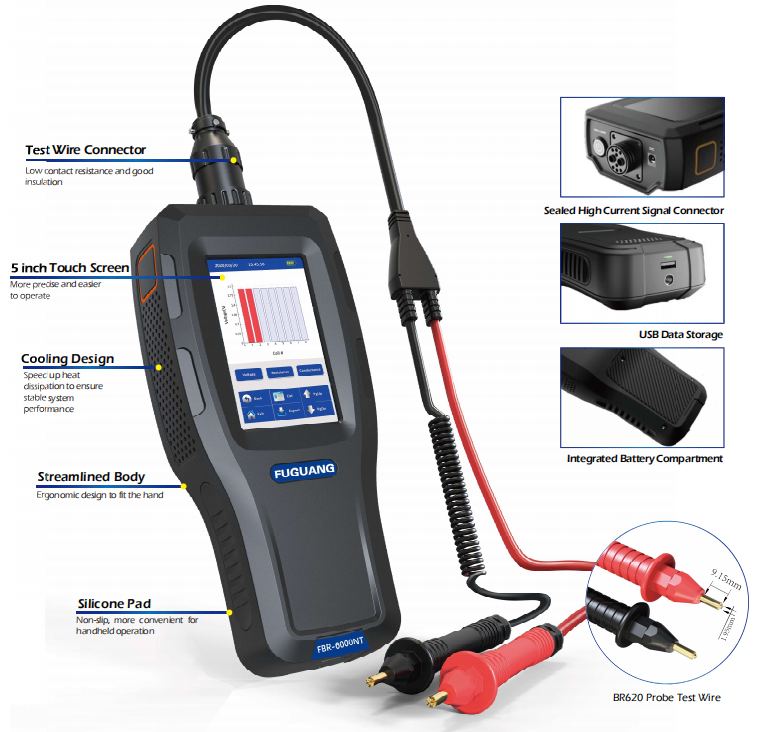

structure

feature

data visualization
Users can view test data directly on the host computer in the form of statistical tables and histograms to quickly and intuitively locate problematic batteries.

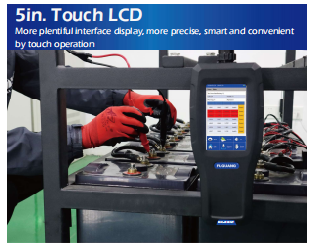

Touch screen operation
All operations are completed through touch, the large screen display is richer and the operation is easier
Smart naming
Support users to name the battery pack under test to facilitate test data identification and management

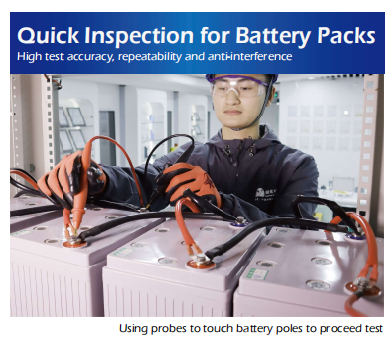

quick test
The test only requires a gentle touch of the probe, and a single test can take up to 3 seconds at the fastest. The system quickly saves data and makes real-time judgments

precise measurement
The use of isolated sampling and new digital signal processing technology greatly improves the anti-interference performance of the test and ensures high test-retest consistency. Even in a UPS computer room with severe ripple interference, battery testing can be performed stably and accurately.
Auto range
The resistance range adopts automatic range to simplify the test operation. The accuracy of the test can also be guaranteed when the performance of each cell in the entire battery pack varies greatly or is unclear.
Battery fault diagnosis
Preset standard reference values and alarm values, and directly analyze the SOH of the battery based on the test results

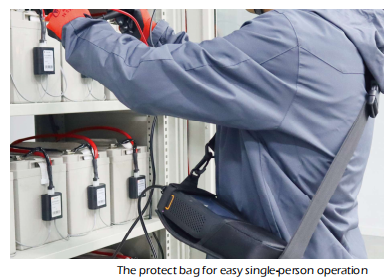

Single person operation
The matching tester kit fully meets the operation requirements of the test site and frees your hands. Test data can be viewed at the same time during testing, and a single person can easily complete the testing task.
Retest function
If a misoperation occurs during the test, you can quickly locate the target cell, quickly retest and automatically overwrite the original data.
Multiple test items
Supports battery voltage, resistance, conductance and connector impedance testing
Large capacity storage
3GB memory, can save more than 5,000 sets of test analysis chart data, each set of data can contain up to 500 cells
data transmission
Test data can be exported to PC via USB flash drive

Specification

thing			value
Battery Type			1.2V, 2V, 3.2V, 6V, 12V
Resistance range			1μΩ-100Ω; Accuracy: ±0.1%rdg. ±6dgt
Conductivity range			100-1000000S; Accuracy: 1%
voltage range			0-17.5V DC; Accuracy: ±0.08rdg. ±6dgt
solve			0-17.5V DC; Accuracy: ±0.08rdg. ±6dgt
Repeat accuracy			±2%; ±5μΩ
test mode			Manual / Auto
exhibit			5-inch touch LCD screen
internal memory			>5000 groups, up to 500 cells per group
internal memory			Rechargeable battery for continuous use more than 8 hours
Dimensions (mm)			291×129×58
Weight (kg)			1.2

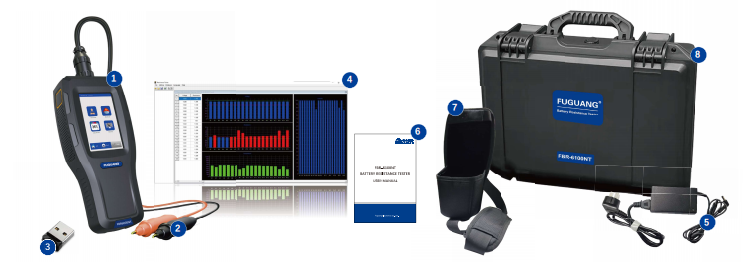

Accessories

ID	describe	quantity
1	FBR-6100NT host Battery internal resistance tester host (with lithium battery pack)	1
1	BR620 probe test lead New probe is small in size and light in weight	1
1	U disk 16G For test data file download and firmware upgrade	1
1	Resistance analysis software (PC) The software installation program is stored in the USB flash drive	1
1	AC adapter Charging power up to 45W, supports fast charging	1
1	User Manual Please read the instructions carefully before operation	1
1	protective bag Light weight, easy to carry, suitable for single use Operation	1
1	suitcase Specially designed for testers, good adaptability, Guaranteed shipping and storage Dimensions (mm): 473348181	1
