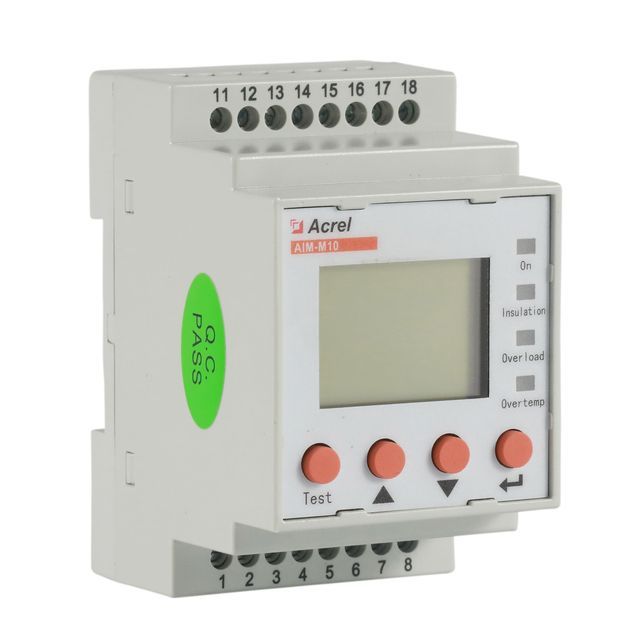

Acrel 300286 AIM-M10 Hospital Isolated Power Supply IPS Isolation Monitoring Device for Medical IT Isolation System
- 1243.90 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Optional features (4): | load monitoring | Optional features (7): | State-owned enterprise failure record |
| Measuring range: | 0-99999 | Optional features (6): | Disconnect monitoring |
| Optional features (3): | temperature monitoring | aspect: | 54*85*63.6mm |
| Optional features (1): | two-way communication | Optional features (8): | self test |
| Test voltage: | AC 220V | Optional features (5): | Centralized monitoring software |
| Gross weight per piece: | 0.500 kg | Display type: | numbers only |
| Packaging Details: | The product is packed in a bubble film carton | brand: | Akrel |
| Sales unit: | single product | Origin: | Jiangsu, China |
| Operating temperature: | -10~55℃ | model: | AIM-M10 |
| Optional features (2): | Fault alarm output | Accuracy class: | Level 5 |
| Single package size: | 5.4X8.5X6.36 cm |
Product Description
General

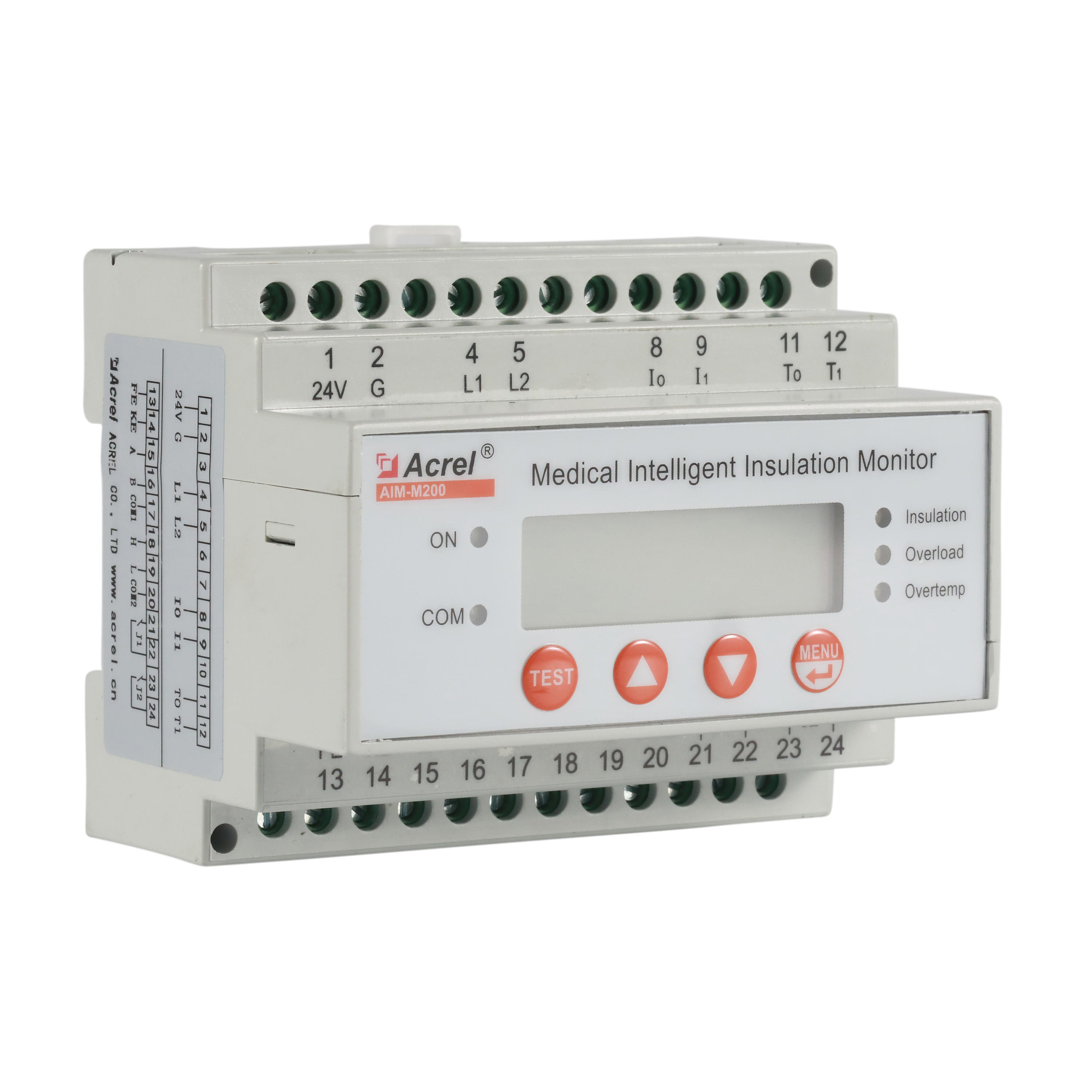

AIM-M200 monitors the insulation resistance of medical IT systems, and simultaneously monitors the load current and temperature of IT system transformers. Combined with ASG100, AIL100 series insulation fault locator and appropriate measurement
Current Transformer, AIM-M200 designed to support insulation fault location
Current Transformer, AIM-M200 designed to support insulation fault location
Semi-automatic PET Blow Molding Machine Blow Molding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in various shapes.
feature
● Insulation monitoring of medical IT systems
● Load and temperature monitoring of isolation transformers
● Device disconnection monitoring
● LED indicators: on, insulation, overload, over temperature
● Alarm relay output
● Test button
● Insulation fault location
● RS485 (MODBUS-RTU) + CAN (custom protocol
● Load and temperature monitoring of isolation transformers
● Device disconnection monitoring
● LED indicators: on, insulation, overload, over temperature
● Alarm relay output
● Test button
● Insulation fault location
● RS485 (MODBUS-RTU) + CAN (custom protocol

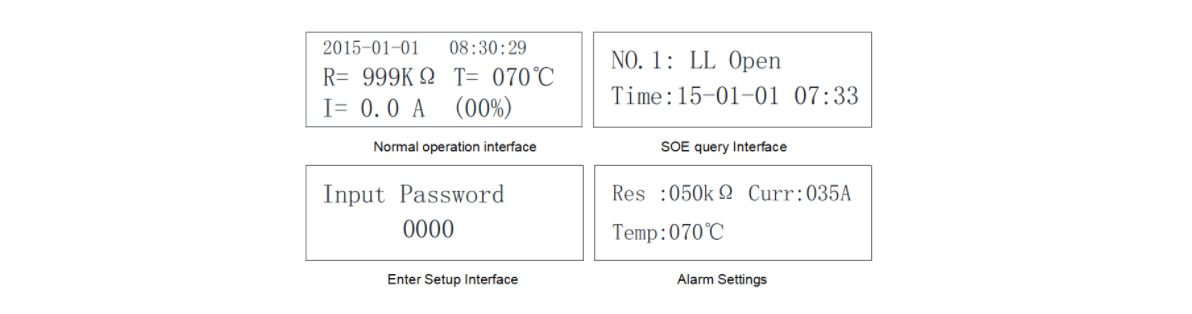

exhibit

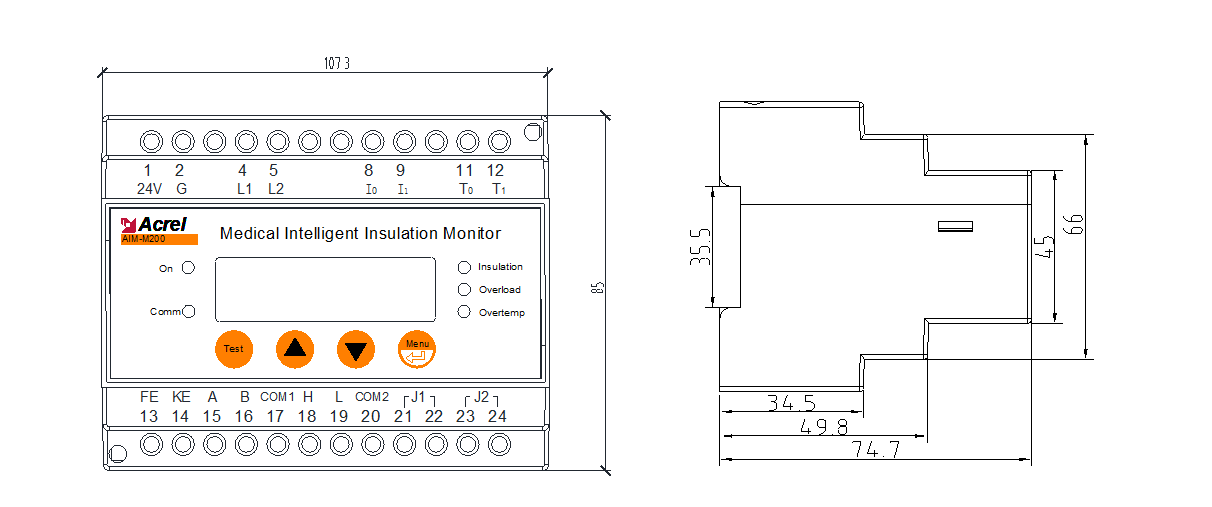

aspect

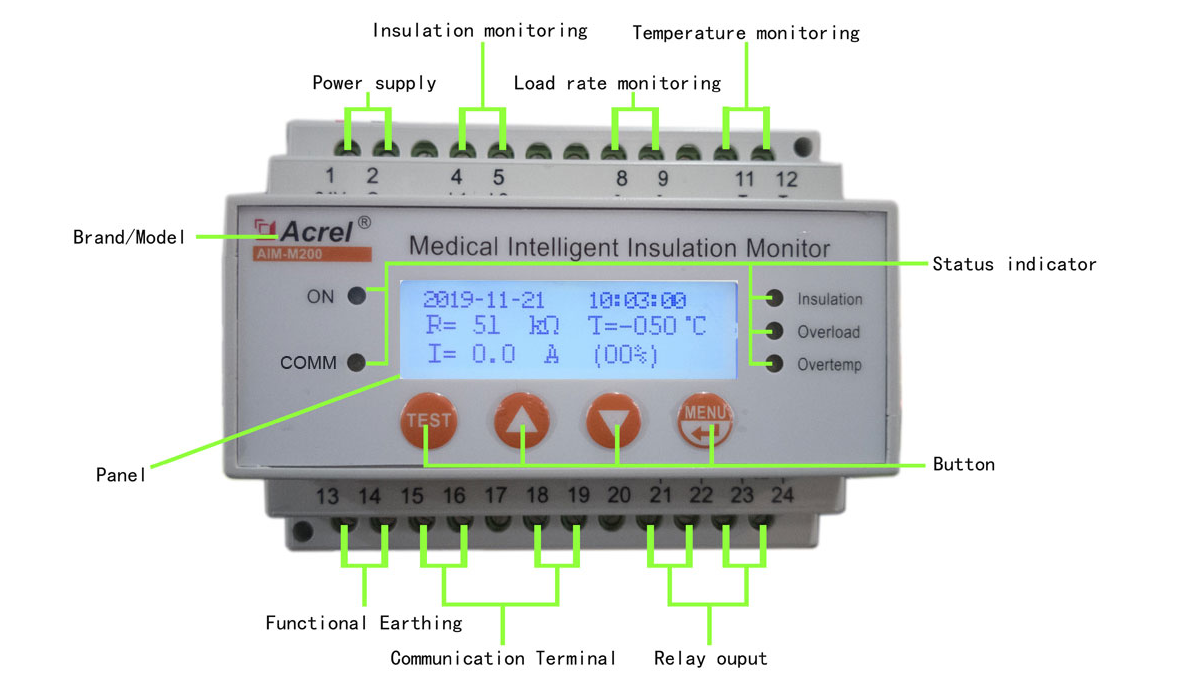

wiring
Technical Parameters
Input voltage | DC 18…36V | ||
energy consumption | ≤3VA | ||
Resistance measurement range | 10…999kΩ | ||
Response | 50…999kΩ | ||
relative uncertainty | ±10% | ||
Response time | ≤3s | ||
Measuring voltage U | ≤12V | ||
Measuring current I | ≤50uA | ||
Load current monitoring measured value | 2.1…50A | ||
Load current monitoring alarm value | 5…50A | ||
Load current monitoring measurement accuracy | ±5% | ||

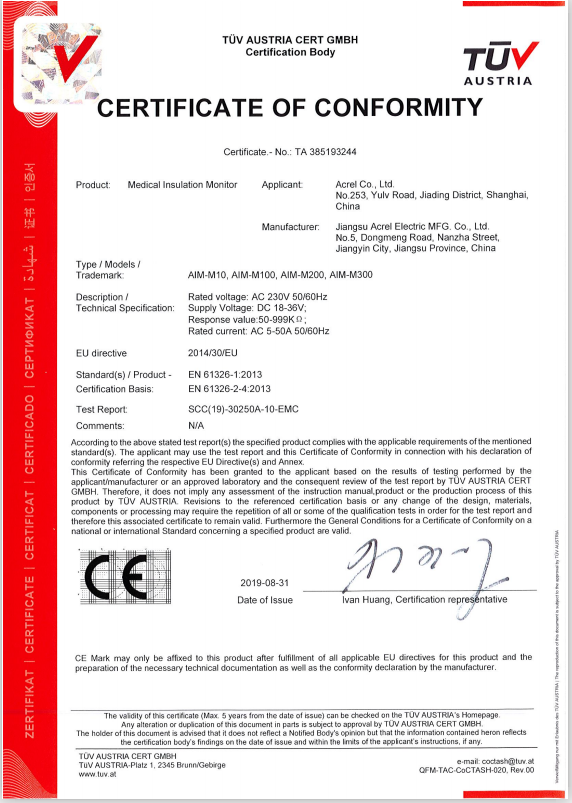

Certificate
