DL69-2059 generator voltage current frequency meter digital display AC 220V380V45-65HZ tester

Supplier: Shenzhen Ruiqi Electronic Co.,ltd
Region: Guangdong, China
Contact: Mr Justin CAI
Price: $0.10 /piece
Min. Order: 1 piece

Click here to contact

Product details

Display type:	numbers only	delivery time:	0-3 days
payment terms:	Western Union, T/T, MoneyGram, PayPal	Packaging Details:	box/bag
Pay:	Paypal\TT\Western Union\Trade Assurance	Supply capacity:	10000 pieces per week
port:	Shenzhen	State of health:	100% brand new
Accuracy class:	1%±2 words	Delivery methods:	DHL\UPS\Fedex\EMS\TNT\Aramex
model:	DL69-2059	place of origin; place of origin:	Guangdong, China
aspect:	794342mm	best price:	Please contact us
brand:	original brand

Product Description

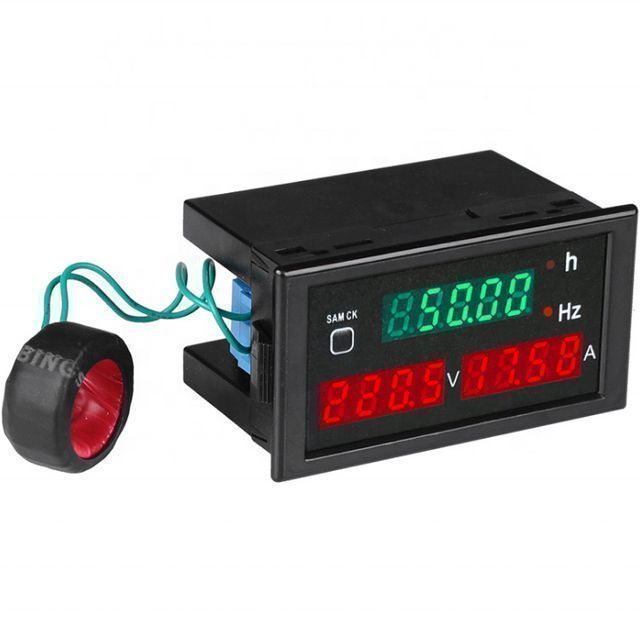

Hot selling DL69-2059 generator voltage current frequency meter digital display AC 220V380V45-65HZ tester

user guide

DL69-2059 rail type AC digital display meter can measure and display AC voltage, current and voltage frequency at the same time.
technical indicators
1. Accuracy: 1%±2 characters

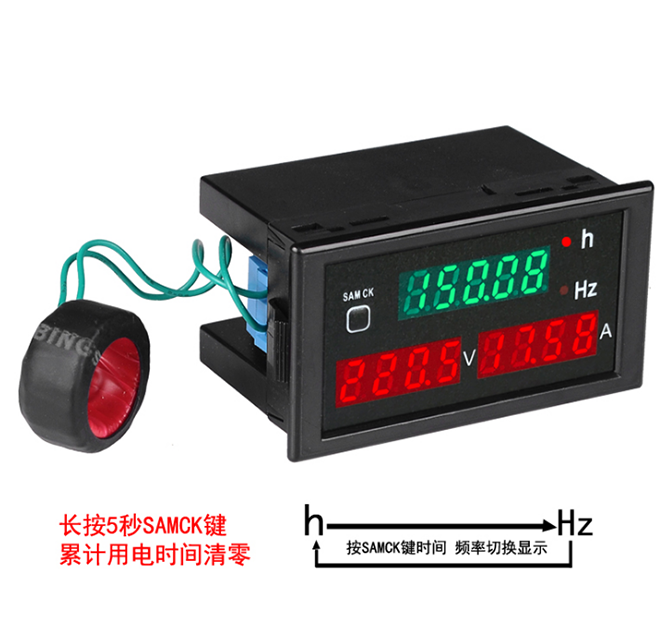

2. Display: AC voltage and voltage frequency are displayed by four 0.32-inch yellow LEDs, and AC current is displayed by four 0.32-inch green LEDs

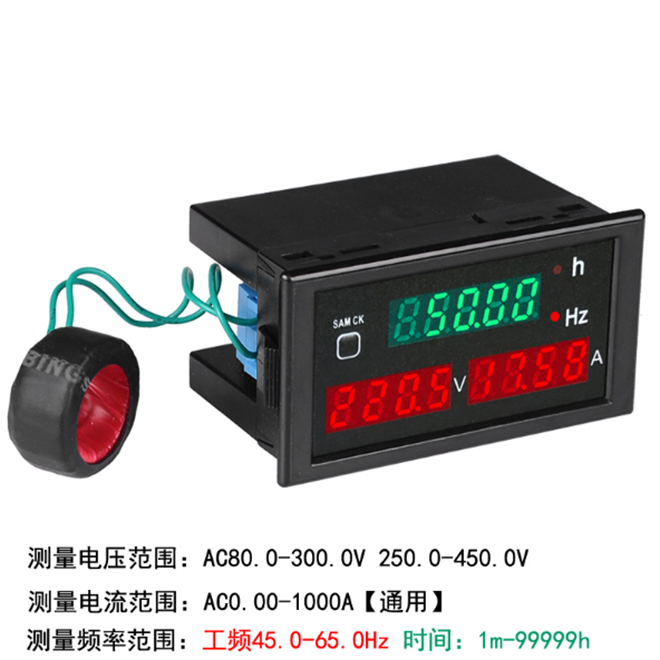

3. Measuring range: AC voltage: AC 80.0-300.0V or AC 250.0-450.0V
AC current: AC 0.00-100.0A or 0-199.9A
Frequency: 45.00 - 65.00Hz

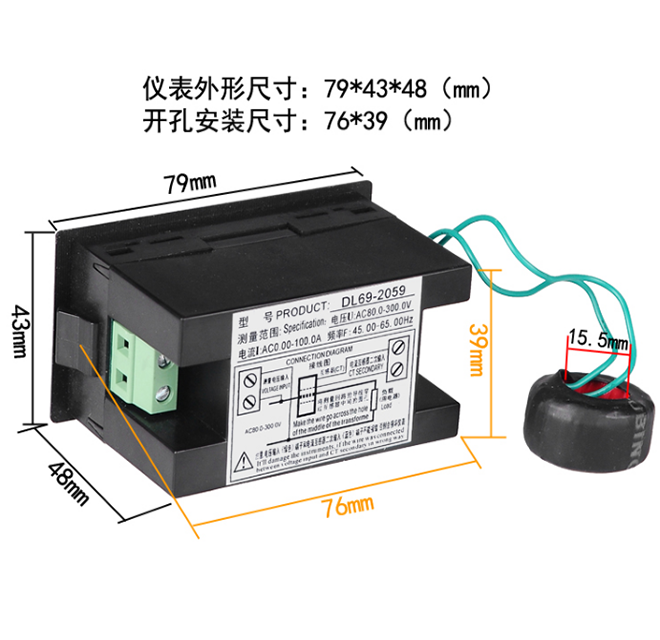

4. Size: 79*43*42mm
5. Installation size: 76*39mm

The instrument can only measure 45-60Hz AC mains, and it will be damaged when measuring square wave, inverter output and correcting sine wave
