Hot selling Function Signal Generator DIY Kit Sine/Triangle/Square Output 1Hz-1MHz Signal Generator XR2206

Product details
Payment:Paypal\TT\Western Union\Trade Assurance;Payment Terms:T/T,Western Union,MoneyGram,Paypal;
Lead time:0-3 Days;Condition:100% new;
Brand Name:China;Supply Ability:10000 Piece/Pieces per Week;
Packaging Detail:antistatic bag;Best price:please contact us;
Model Number:XR2206 Signal Generator;Port:SHENZHEN;
Place of Origin:Guangdong China;Shipping by:DHL\UPS\Fedex\EMS\TNT\Aramex;
Product Description

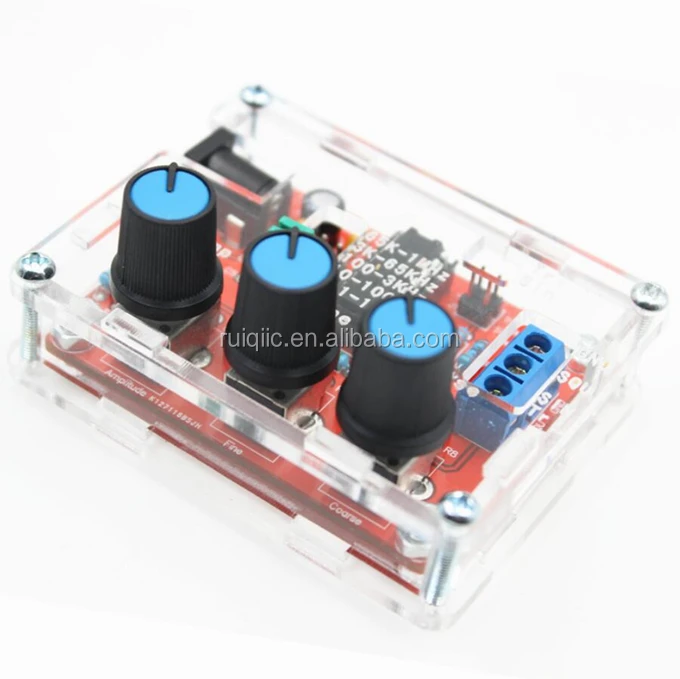

Hot selling Function Signal Generator DIY Kit Sine/Triangle/Square Output 1Hz-1MHz Signal Generator XR2206

Voltage Supply: 9-12V DC Input
Waveforms: Square, Sine & Triangle
Impedance: 600 Ohm + 10%
Frequency: 1Hz - 1MHz
SINE WAVE
Amplitude: 0 - 3V at 9V DC input
Distortion: Less than 1% (at 1kHz)
Flatness: +0.05dB 1Hz - 100kHz
SQUARE WAVE
Amplitude: 8V (no load) at 9V DC input
Rise Time: Less than 50ns (at 1kHz)
Fall Time: Less than 30ns (at 1kHz)
Symmetry: Less than 5% (at 1kHz)
TRIANGLE WAVE
Amplitude: 0 - 3V at 9V DC input
Linearity: Less than 1% (up to 100kHz) 10mA

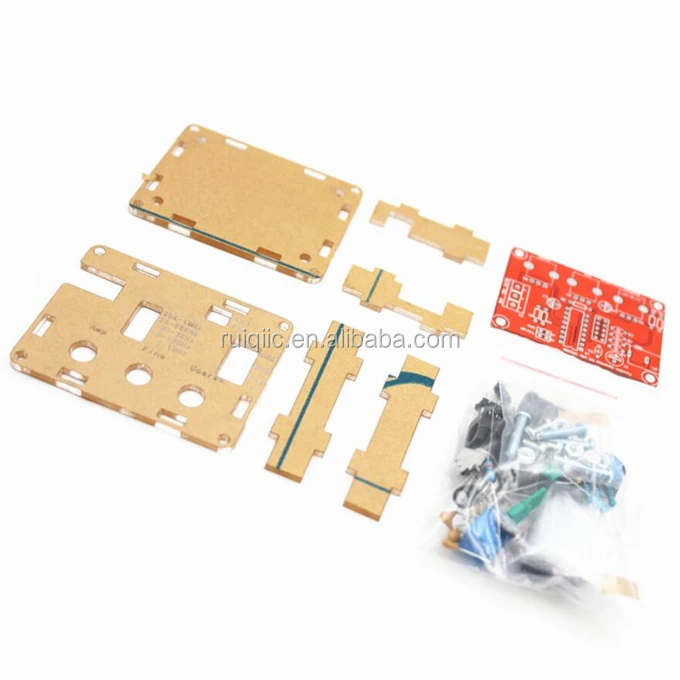

3The welding installation considerations, follow these steps:

1. The components are welding the front board, from low to high principles, namely the first low welding components, such as, capacitor, resistor, diode, etc.

2.Welding IC socket, terminal blocks, finally power socket, adjustable potentiometer.

3.The back with a diagonal cutting pliers to cut short the pins as far as possible

4Debugging steps:

1After completion of welding on IC, XR2206, pay attention to the direction of IC, insert the might damage the chip!

2. check the IC whether against, such as anti please timely correction.

3. Insert the power supply, power supply for 5.5 * 2.1 port, inside outside is negative polarity. For 9-12 v power supply voltage. The waveform may not be stable for more than 12 v

5Using the step

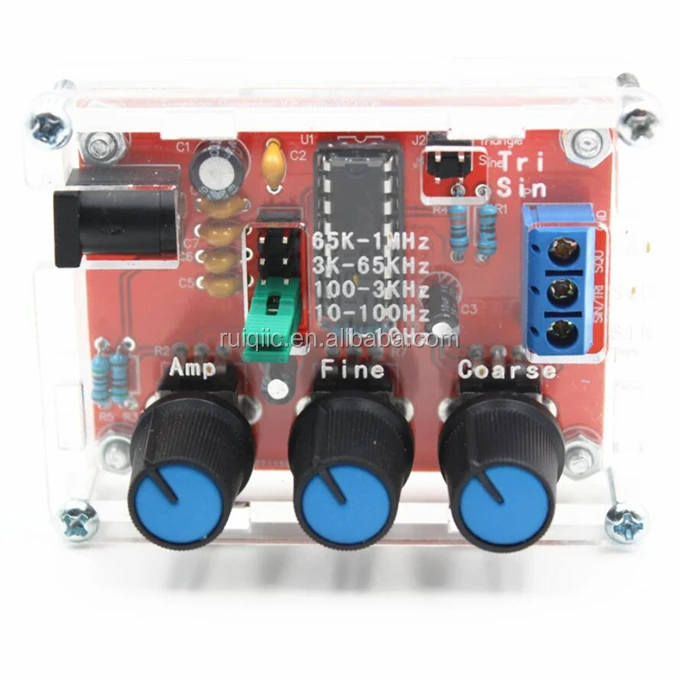

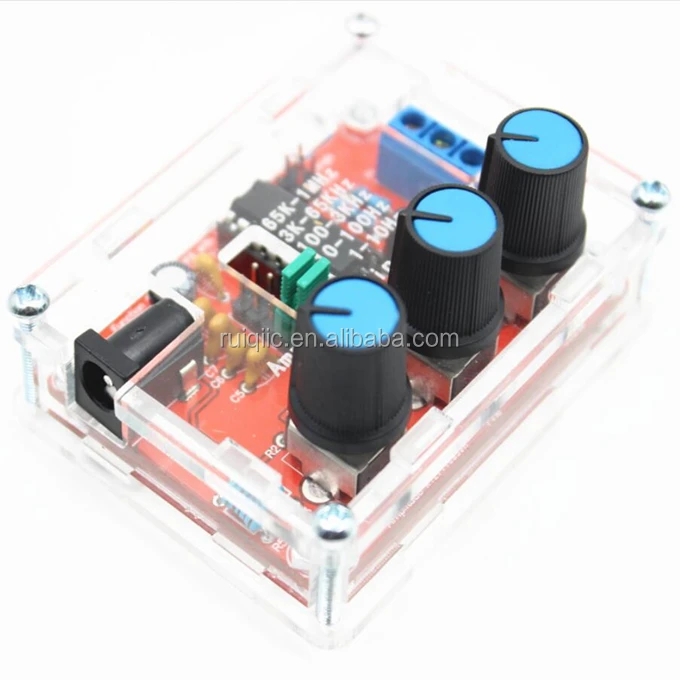

1. J1 jumper cap plug in, SIN/TRI blue terminals output sine wave (note J1, J2 can only insert one of)

2. J2 jumper cap plug in, SIN/TRI blue terminals output triangular wave (note J1, J2 can only insert one of)

3. SQU blue terminals output pulse

4. AMP : Sine wave, triangle wave amplitude adjustment

5. FINE : Frequency fine adjustment

6. Coarse : Frequency of coarse adjustment

6Schematic diagram of Function Generator
