Product Details

Package preview:		channel:	2
maximum. Output frequency:	25 MHz	Standard interface:	USB host, USB device, LAN
payment terms:	L/C, Western Union, T/T	brand:	unit
place of origin; place of origin:	Guangdong, China	port:	Shenzhen
Vertical resolution:	14 bits	Sampling Rate:	125 MA/s
type:	Digital Waveform Generator	Operating mode:	Output On/Off, Continuous, Modulation, Sweep, Burst
exhibit:	4.3-inch TFT LCD, WVGA (480 x 272)	Supply capacity:	10000 sets per month
model:	UTG2025A	Packaging Details:	standard shipping carton
color:	white and gray	Customization support:	OEM production
Arbitrary wavelength:	8 Kpts	strength:	100V~240V AC 50Hz/60Hz
Warranty:	12 months

Product Description

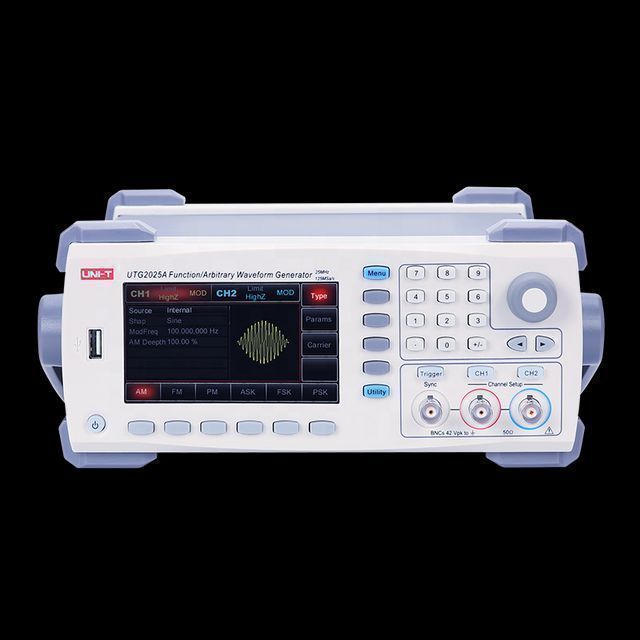

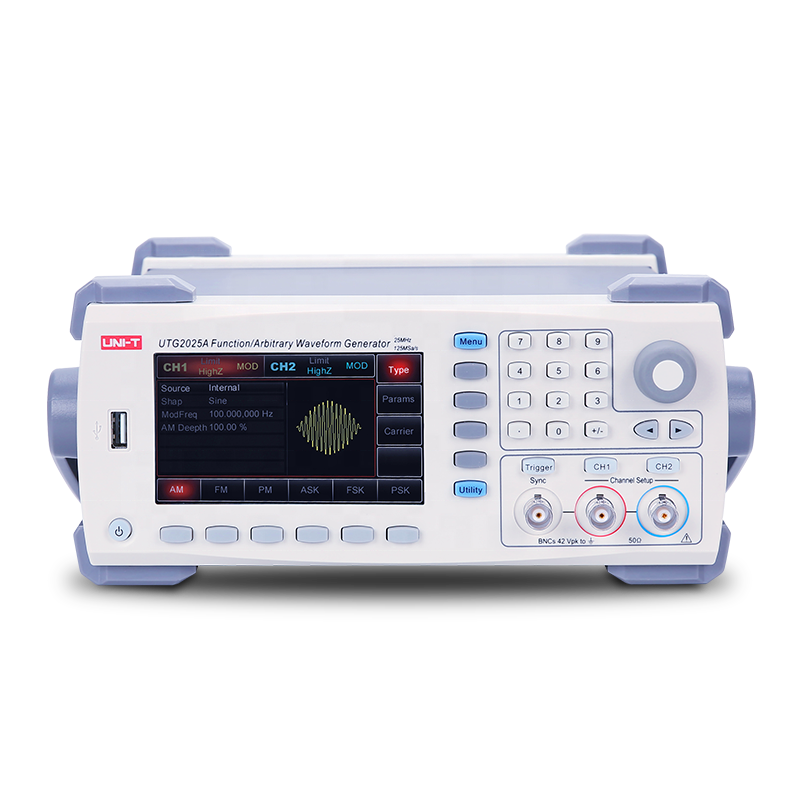

UTG2025AFrequency 25MHz 2Channel 4.3inchLow Cost Waveform Generator---UTG2000A series

The UTG2000A series redefines entry-level waveform generators by bringing advanced features such as 14-bit high resolution and 125MSa/s sampling rate to our most affordable generator series. 200 built-in arbitrary waveform enables.
The UTG2000A series provides students and engineers with a powerful and low-cost signal generator.

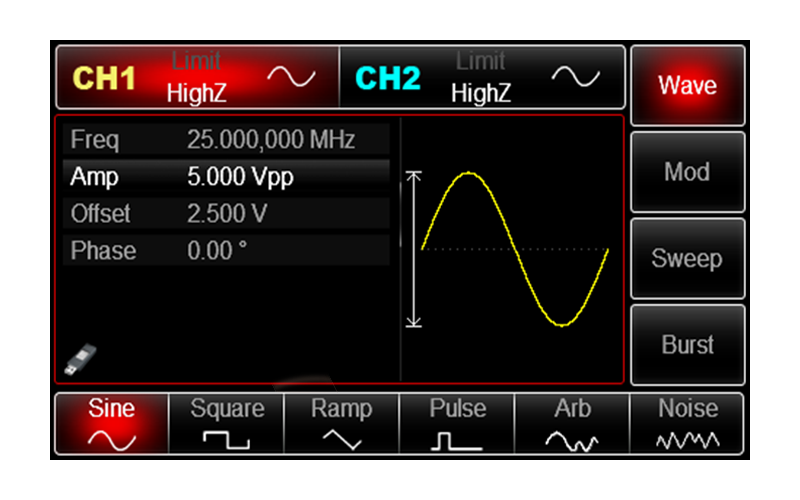

25MHz maximum frequency output, a variety of waveform signals

2Channl, 25MHz maximum frequency output,
Various waveform signals are available:
Sine, Square, Ramp, Pulse, Noise, DC, Arbitrary

Various modulation functions

Various analog and digital modulation functions
Modulation method: AM, FM, PM, ASK, FSK, PSK, PWM

Built-in 48 arbitrary waves

UTG2000A built-in non-volatile 48 kinds of standard waveforms,
common functions, mathematical functions,
Trigonometric functions, window functions

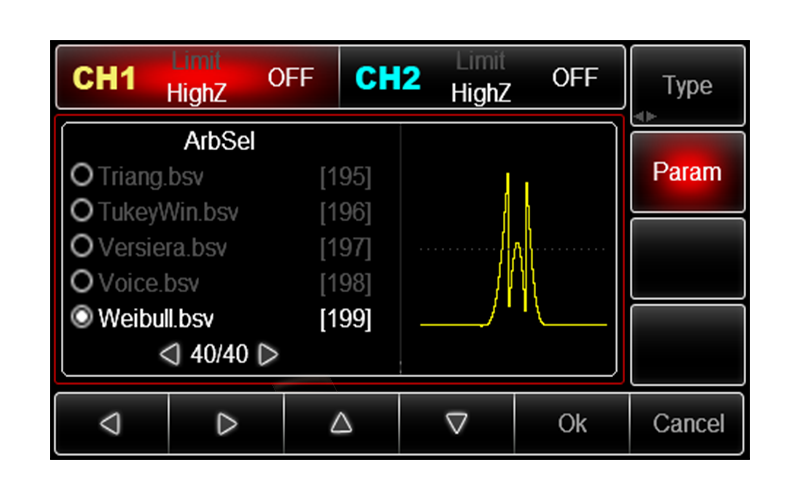

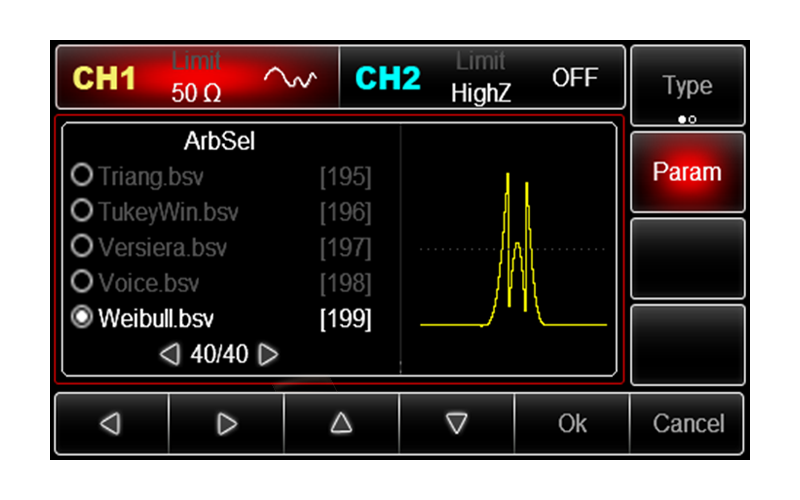

Built-in up to 200 arbitrary waveforms

UTG2000B series contains more than 160 different signal
Shape and waveform options.

Scan Mode and Burst Mode Capabilities

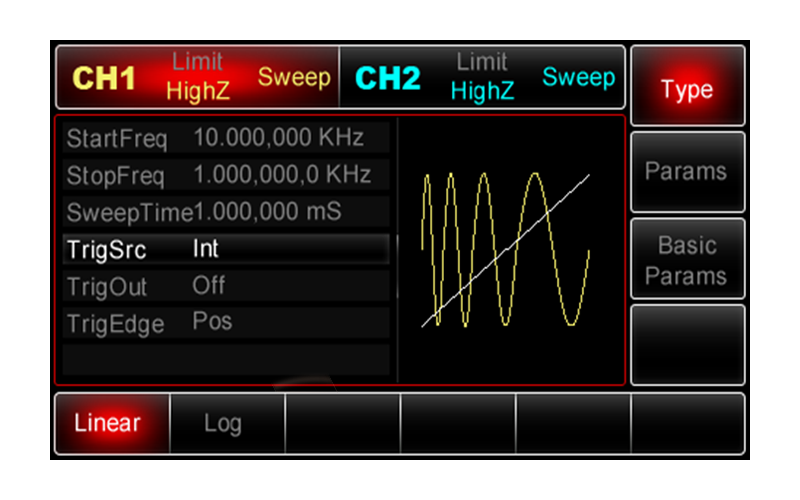

Scan mode:
It can sweep the output from high to low and low to high in linear or logarithmic mode.
Burst Mode Features:
Three types of bursts are available: N cycle, infinite and gated.

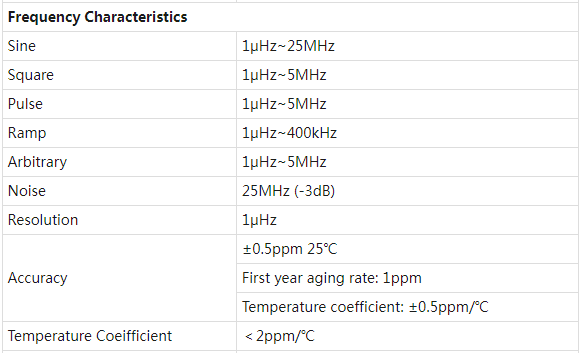

Specification

Model	UTG2025A
Maximum frequency output	25 MHz
channel	2
Sampling Rate	125 MA/s
Arbitrary wavelength	8 Kpts
vertical resolution	14 bits
waveform	Sine wave, square wave, ramp wave, pulse, noise, DC, arbitrary
Operating mode	Output On/Off, Continuous, Modulation, Sweep, Burst
modulation	AM, FM, PM, ASK, FSK, PSK, PWM; UTG2000B only: BPSK, QPSK, OSK, DSB-AM, SUM, QAM
interface	USB host, USB device,
exhibit	4.3-inch TFT LCD, WVGA (480 x 272)

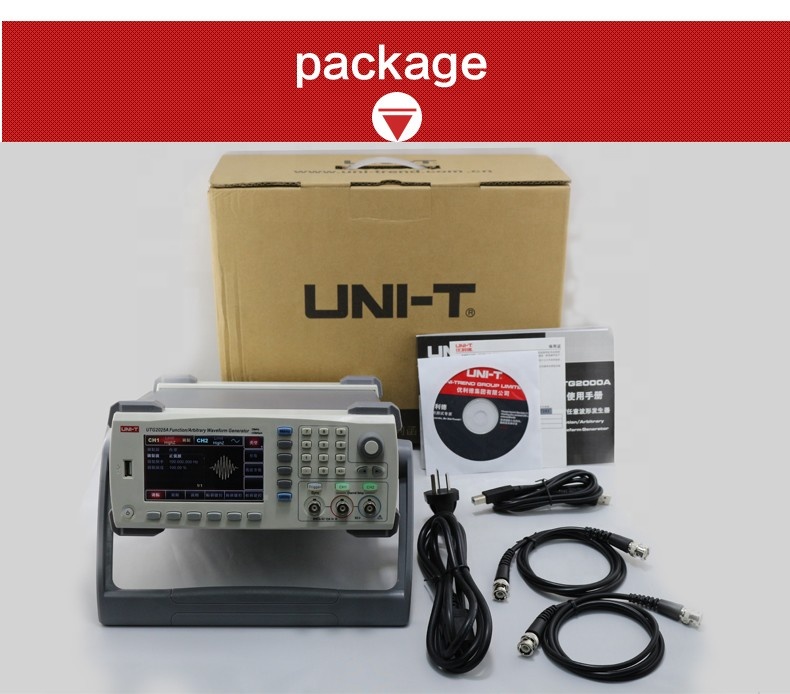

Standard accessories	BNC-BNC data cable, BNC data cable with alligator clip, power cord, USB interface data cable, PC software CD
