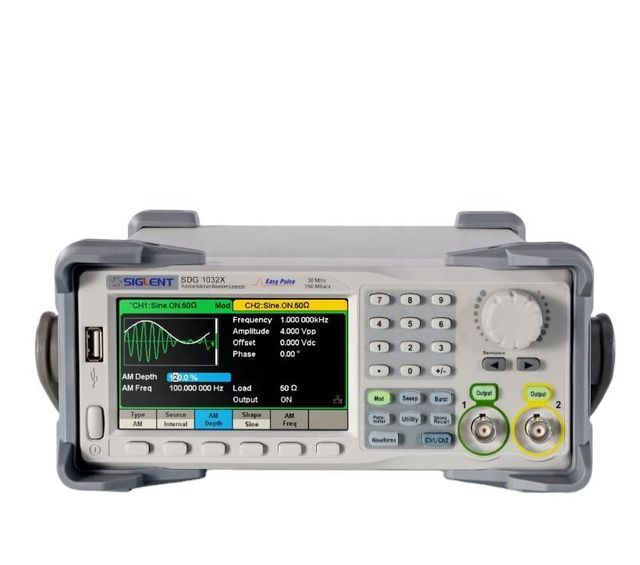

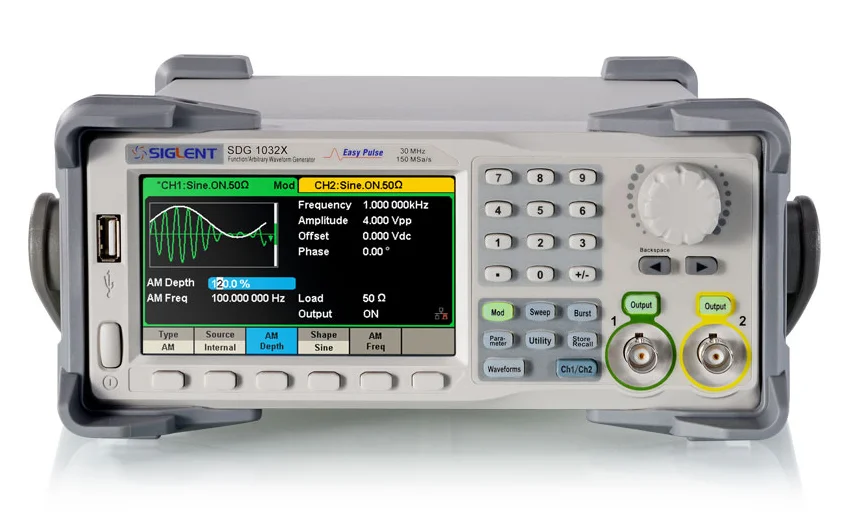

Siglent SDG1032X Function/Arbitrary Waveform Generators

ProohDukeOviweWell

SIGLENT's SDG1000X is a series of dual-channel function/arbitrary waveform generators with specifications including up to 60 MHz maximum bandwidth, 150 MSa/s sampling rate and 14-bit vertical resolution. Proprietary EasyPulse technology helps address the inherent weaknesses of traditional DDS generators in generating pulse waveforms, and a special square wave generator is capable of generating low-jitter square waves at frequencies up to 60 MHz. With these advantages, SDG1000X can provide users with a variety of high-fidelity/low-jitter signals while meeting the growing needs of various complex and diverse applications.

Main features

•Dual channel, bandwidth up to 60 MHz, amplitude up to 20 Vpp
•150 MSa/s sample rate, 14-bit vertical resolution, and 16 kpts waveform length
•Innovative EasyPulse technology can generate lower jitter pulse waveforms, bringing a wide range of

and extremely high Pulse width and rise/fall time adjustment accuracy
• Special square wave function circuit can generate square waves up to 60 MHz with jitter less than

300 ps+0.05 ppm period
• Multiple analog and digital modulation types: AM, DSB-AM, FM, PM, FSK, ASK, PSK and PWM
• SCry and burst functionality
• Harmonic generator function
• Waveform synthesis function
• High precision frequency counter
• Standard interface: USB Host, USB Device (USBTMC), LAN (VXI-11)
• Optional interface: GPIB

• 4.3” TFT-LCD display

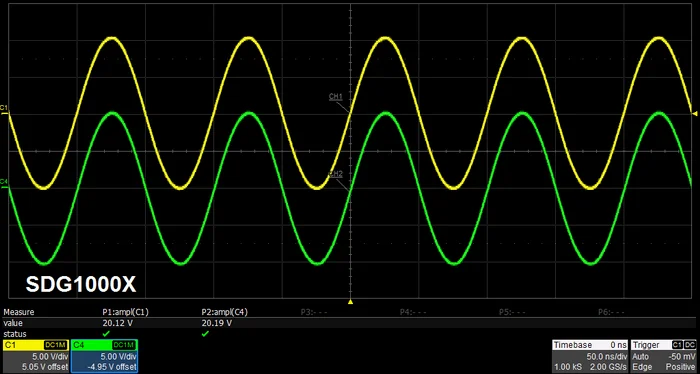

Same dual output channels, high performance

Able to output large signals at high frequencies. Dual channel, 20Vpp amplitude available

Guaranteed up to 10 MHz.

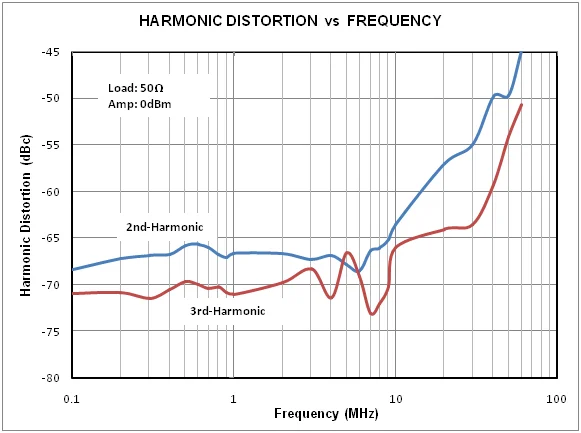

Low distortion output

At 0 dBm output, THD (Total Harmonic Distortion) is less than 0.075%. Harmonics and spurious are

Less than -40 dBc over the entire bandwidth.

Innovative EasyPulse technology

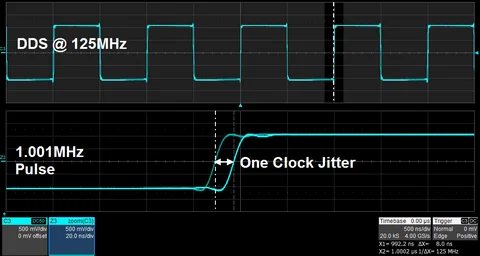

When an ordinary DDS generator generates a pulse waveform, there will be a clock jitter

If the sampling rate is not an integer multiple of the output frequency. SDG1000X EasyPulse

The technology successfully overcomes this weakness in DDS design and helps produce low-jitter pulse waveforms.

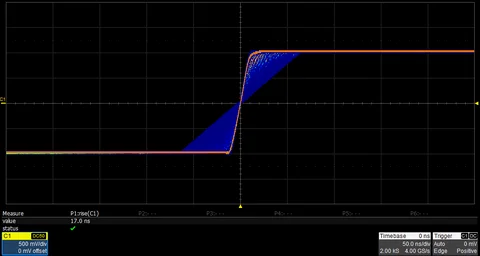

Rise/fall times can be independently set to a minimum of 16.8 ns at any frequency

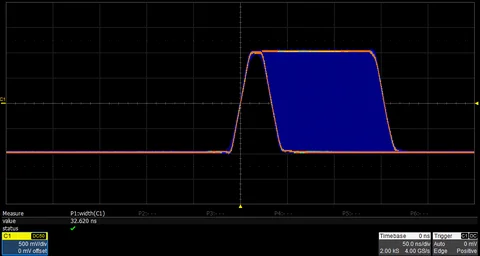

Maximum 22.4 seconds. Adjust the step size as small as 100 ps. Pulse width can be fine-tuned

The minimum is 32.6 ns, with adjustment steps as small as 100ps.

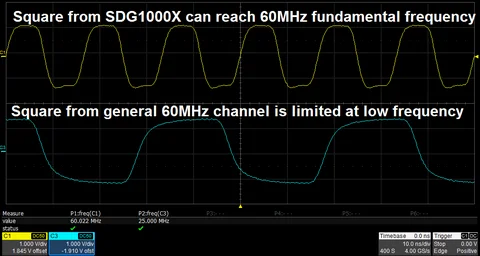

High performance square wave

Thanks to the special square wave generation circuit, SDG1000X’s Square breaks

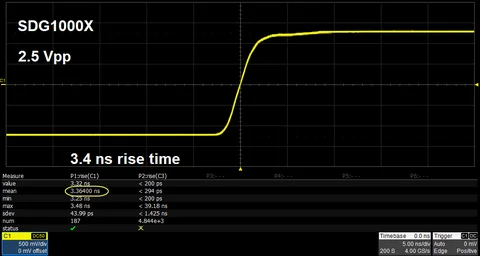

60 MHz bandwidth barrier, rise/fall times less than 4.2 ns, frequencies up to 60 MHz.

Square waves exhibit equally good jitter

Performance like pulse waveform

Multiple modulation types: AM, DSB-AM, FM, PM,

FSK, ASK, PSK and PWM. modulation source

Can be configured as "internal" or "external".

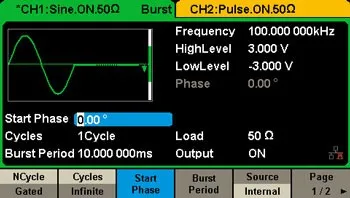

Two burst modes: "N-Cycle" and "Gated". break out

The source can be configured as "Internal", "External" or

"manual".

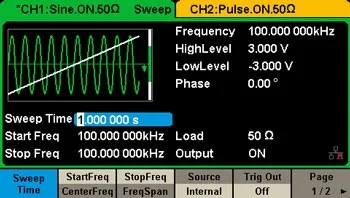

Two scan modes: "Linear" and "Logarithmic". Second scan

direction, "up" and "down" and three swipes

Source, "Internal", "External" and "Manual".

High precision frequency counter with input

Frequency range 0.1 Hz~200 MHz.
