HIGN QUALITY 2 CHANNEL 100MHZ 1GS/S DIGITAL OSCILLOSCOPE UNI-T BRAND UT2102CEX

Supplier: Sinotronics Co., Ltd.
Region: Jiangsu, China
Contact: Ms. Joyce Zhang
Price: $168.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Rise Time:	≤3.5ns;	Delivery Detail:	0 days after payment;
Memory Depth:	25kpts;	Storage:	Setup,Wave,Bitmap;
Timebase Range(s/div):	2ns/div~50s/div;	Brand Name:	UNI-T;
Bandwidth:	100MHz;	Trigger Modes:	Edge, Pluse, Video,Slope,Alternate;
Selling Units:	Single item;	Waveform Acquisition Rate:	≥2000wfms/s;
Place of Origin:	Guangdong China (Mainland);	Single package size:	42X25X28 cm;
Sample Rate:	1Gs/s;	Vertical Sensitivity(V/div):	1mV/div~20V/div;
Product Name:	2 CHANNEL 100MHZ 1GS/S DIGITAL OSCILLOSCOPES UNI-T BRAND UT2102CEX;	Model Number:	UTD2102CEX;
Single gross weight:	6 KG;

Product image

Product Description

1,Dual analog channels width range 1mV/div~20V/div;
2,7 inches widescreen LCD displays;
3,The new interface style;
4,Supports plug-and-play USB storage device. Communication with and remote control of computer through the USB device;
5,USB drive system software upgrade;
6,Storage of waveforms setups and interfaces waveforms and setups reproduction;
7,Automatic measurement of 32 waveform parameters;
8,Unique waveform recording and replay function;
9,Multilingual menu displays.

Product parameters

Specification	UTD2102CEX
Channels	2
Bandwidth	100MHz
Sample Rate	1Gs/s
Rise Time	≤3.5ns
Memory Depth	25kpts
Waveform Acquisition Rate	≥2000wfms/s
Vertical Sensitivity(V/div)	1mV/div~20V/div
Timebase Range(s/div)	2ns/div~50s/div
Storage	Setup,Wave,Bitmap
Trigger Modes	Edge, Pluse, Video,Slope,Alternate
Interface	USB OTG
General Characteristic
Power	100-240VAC, 45-440Hz
Display	7 Inches 64K Color TFT LCD, 800×480
Product Color	White and Gray
Product Net Weight	2.2 Kg
Product Size (W×H×D)	306mm ×147mm × 122mm

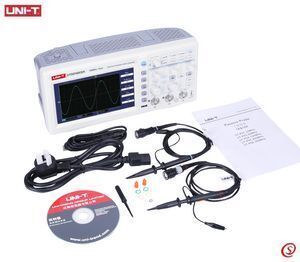

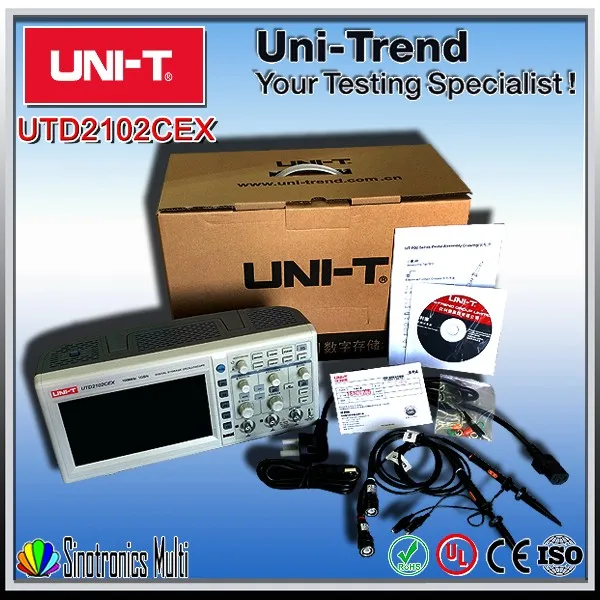

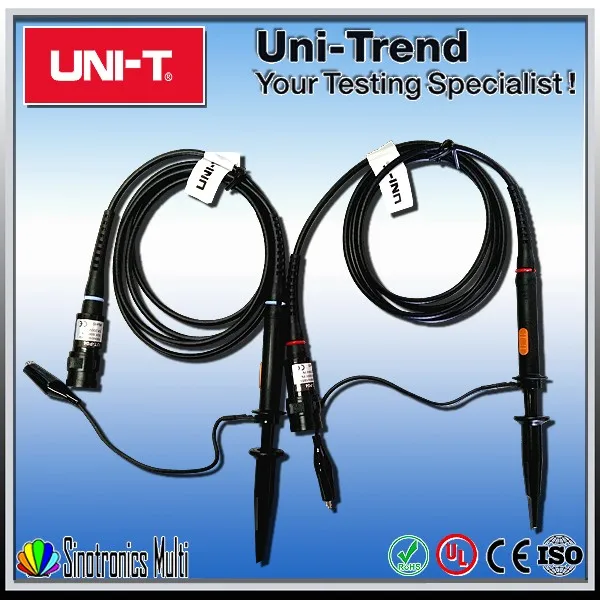

Standard Accessories	Probe×2 (1×,10× switchable), Power Cord , USB Cable, PC Software CD
Standard Individual Packing	Gift Box, English Manual
Standard Quantity Per Carton	2 PCs
Standard Carton Measurement (L×W×H)	450mm× 420mm × 280mm
Standard Carton Cross Weight	8.5 Kg
Optional Accessories*
LA Module
