Best Insulation Resistance Testers UNI-T UT513A

Click here to contact

Product details

Low Battery Indication:	Yes;	USB Interface:	Yes;
Polarization Index(PI):	Yes;	Model Number:	UT513A;
Measuring Range:	1MΩ~1000GΩ;	Delivery Detail:	Shipped in 15 days after payment;
Operating Temperature:	0~40;	Payment Terms:	T/T;
Auto Power Off:	Yes;	Display Type:	Digital Only;
Dielectric Absorption (DAR):	Yes;	Brand Name:	UNI-T;
Data Logging:	18;	Supply Ability:	5000 Piece/Pieces per Month;
Comparison:	Yes;	LCD Backlight:	Yes;
Dimensions:	202mm155mm94mm;	Secondary Display:	Yes;
Port:	SHANGHAI,NINGBO;	Testing Voltage:	500V/1000V/2500V/5000V;
Packaging Detail:	We can provide the product packing according to your request.;	Place of Origin:	Guangdong China (Mainland);
Auto Range:	Yes;	Accuracy Class:	±(3%+5);

Product Overviews

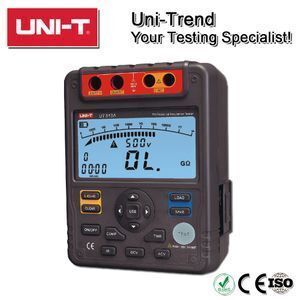

Product image

Product parameters

Specification	Range		Best Accuracy
Model			UT513A
Insulation Resistance(Ω)	Test Voltages	500V/1000V/2500V/5000V	0%-20%
	500V	0.0MΩ~20GΩ	±(3%+5)
	1000V	0.0MΩ~40GΩ	±(3%+5)
	2500V	0.0MΩ~100GΩ	±(3%+5)
	5000V	0.0MΩ~1000GΩ	±(3%+5)
	Short Circuit Current		>3.0mA
DC Voltage (V)	600V		±(2%+3)
AC Voltage (V)	600V		±(2%+3)
Features
Auto Range			√
Auto Power Off			√
Secondary Display			√
Low Battery Indication			√
Data Logging			18
Comparison			√
Polarization Index(PI)			√
Dielectric Absorption (DAR)			√
USB Interface			√
LCD Backlight			√
Analogue Bar Graph			30
Over Range Warning			√
High Voltage Indication			√
Timer	Around 15 minutes		√
General Characteristic
Power	1.5V Alkaline Batteries(LR14)×8
LCD Size	123mm x 58mm
Product Color	Red & Grey
Product Net Weight	2Kg
Product Size	202mm×155mm×94mm
Standard Accessories	2PCs of one plug test lead to one alligator clip(Black and Green),1 PC of two plugs test lead to one alligator clip(Red), Tool Box, USB Cable,PC Software CD, Power Adaptor
Standard Individual Packing	Gift Box, English Manual
Standard Quantity Per Carton	4 PCs
Standard Carton Measurement	525mm x 335mm x 345mm (0.061CBM Per Standard Carton)
Standard Carton Cross Weight	19Kg
