Best Digital Oscilloscopes UNI-T UTD2025CL

Supplier: Sinotronics Co., Ltd.
Region: Jiangsu, China
Contact: Ms. Joyce Zhang
Price: $128.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Brand Name:	UNI-T;	Storage:	Setup,Wave,Bitmap;
Timebase Range:	10ns/div~50s/div;	Model Number:	UTD2025CL;
Rise Time:	≤14ns;	Sample Rate:	250Ms/s;
Selling Units:	Single item;	Vertical Sensitivity:	1mV/div~20V/div;
Waveform Acquisition Rate:	≥2000wfms/s;	Trigger Modes:	Edge, Pluse, Video, Alternate;
Interface:	USB OTG,Pass/Fail;	Single gross weight:	5 KG;
Memory Depth:	25kpts;	Package Type:	We can provide the product packing according to your request.;
Type:	Digital Oscilloscope;	Bandwidth:	25MHz;
Single package size:	45X18X32 cm;	Place of Origin:	Guangdong China;

Product Overviews

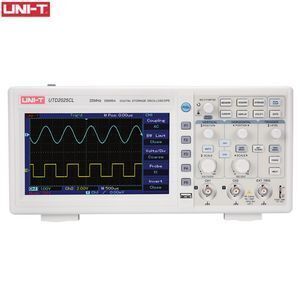

Product image

Product Description

1,Dual analog channels width range 1mV/div~20V/div;
2,7 inches widescreen LCD displays;
3,Special Print Scree Feature;
4,Supports plug-and-play USB storage device. Communication with and remote control of computer through the USB device;
5,USB drive system software upgrade;
6,Storage of waveforms setups and interfaces waveforms and setups reproduction;
7,Automatic measurement of 28 waveform parameters;
8,Unique waveform recording and replay function;
9,Multilingual menu displays.

Product parameters

Specification	UTD2025CL
Channels	2
Bandwidth	25MHz
Sample Rate	250Ms/s
Rise Time	≤14ns
Memory Depth	25kpts
Waveform Acquisition Rate	≥2000wfms/s
Vertical Sensitivity	1mV/div~20V/div
Timebase Range	10ns/div~50s/div
Storage	Setup,Wave,Bitmap
Trigger Modes	Edge, Pluse, Video, Alternate
Interface	USB OTG,Pass/Fail
General Characteristic
Power	100-240VAC, 40-440Hz
Display	7 Inches 64K Color TFT LCD, 400×240
Product Color	White and Gray
Product Net Weight	2.2 Kg
Product Size (W×H×D)	306mm ×147mm × 122mm
Standard Accessories	Probe×2 (1×,10× switchable),Power Cord, USB Cable, PC Software CD
Standard Individual Packing	Gift Box, English Manual
Standard Quantity Per Carton	2 PCs
Standard Carton Measurement (L×W×H)	450mm × 420mm × 280mm
Standard Carton Cross Weight	8.5 Kg
